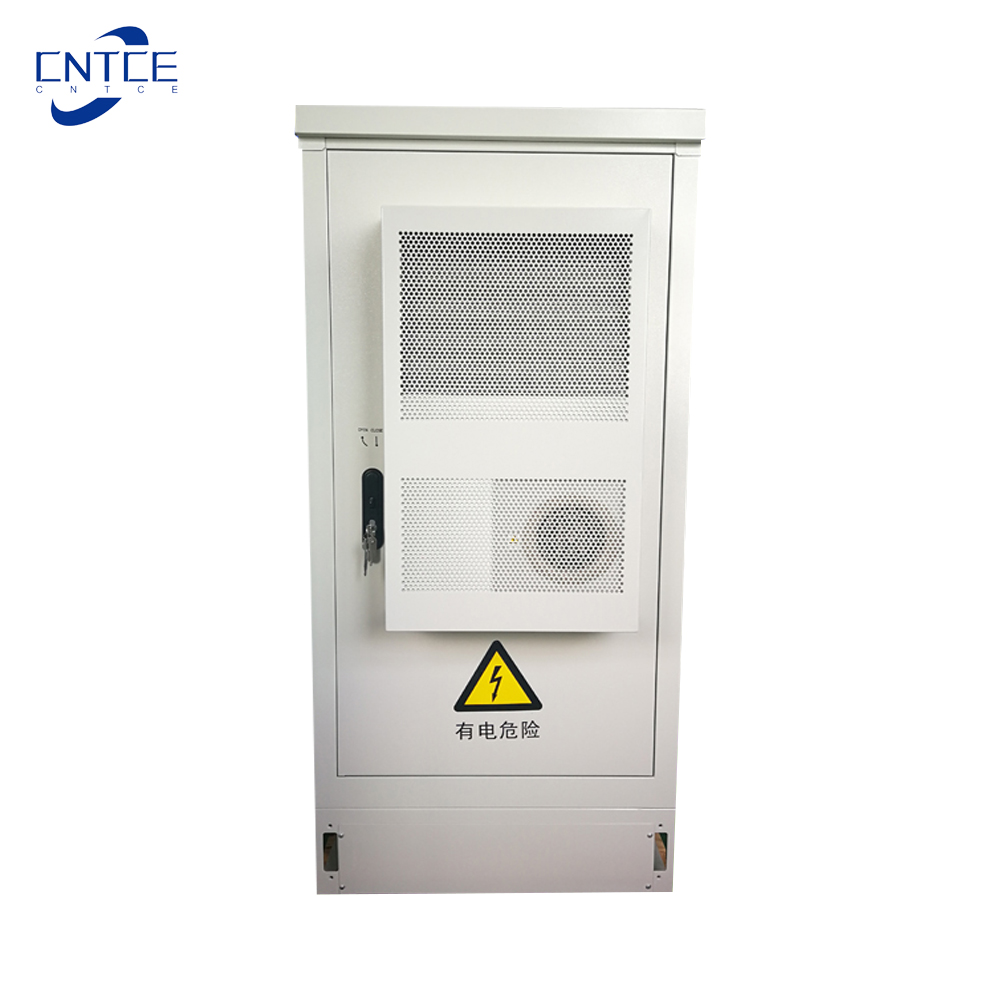

Outdoor Electrical Cabinet

2 month ago
5 0
Product details
Product Feature
1. Outdoor Battery Cabinet fully protects the battery cell enclosed within, such as electrical cabling and other components from potentially damaging environments, including those that contain dust, rain, ice, and external heat.
2. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
3. All the cables used in the cabinet are made from flame retardant materials.
4. There are many different options and accessories available, making every system unique and built to your site-specific needs. They can be constructed with batteries, battery/charger combinations, and even DC distribution panels. Batteries can be installed on pull-out drawers or fixed shelves.
5.CNTCE offering Outdoor Battery Cabinet to our customers. Keeping the diverse requirements of the customers in mind.

Outdoor Telecom Cabinet

Product Details

Regular Items

Model

Height(U)
(Internal height)

External Dimension

Option Equipment

H(mm)

W(mm)

D(mm)

CNT606060

10U

600

600

600

Material: steel plate, galvanized plate, stainless steel 304, stainless steel 316
Color: conventional RAL7035, customizable
Mount method: floor-standing installation
Equipment shelves: equipment rack, battery rack,         integrated rack
Maintenance method: front door, front and rear door
Protection level: IP55/IP65/IP66
Air conditioner:
   AC220V: 300W, 600W, 1000W, 1500W, 2000W, 3000W, 5000W
   DC48V: 300W, 600W, 1000W, 1500W, 2000W, 3000W
Heat exchange: 40W/K, 60W/K, 80W/K, 120W/K, 150W/K 200W/K
Switching power supply: 48V100A, 48V200A, 48V300A, 48V400A, 48V600A,
UPS: 500VA, 1KVA, 2KVA, 3KVA, 5KVA, 6KVA, 10KVA
Battery: 48V100Ah, 48V200Ah, 48V280Ah
Sensor: Door , temperature and humidity, smoke, water immersion, tilt

CNT906565

16U

900

650

650

CNT136565

25U

1300

650

650

CNT167575

31U

1650

750

750

CNT161575

31U+31U

1650

1500

750

CNT188080

35U

1800

800

800

CNT217575

40U

2050

750

750

CNT219090

40U

2050

900

900

CNT211890

40U+40U

2050

1800

900

CNT212790

40U+40U+40U

2050

2700

900

CNT212810

40U+40U+40U+40U

2050

2850

1000

CNT249090

48U

2400

900

900


Specifications
Outside dimension: 1300H*650W*650D mm
Cabinet dimension: 1100H*600W*600D mm
Cabinet composition: cabinet body + cabinet door + base + top cover + rack + cabinet lock
Cabinet type: 1 unit, 1 cabin, front door
Cabinet material: Galvanized steel/Aluminum/stainless steel/Color coated steel
Thermal insulation performance: thermal conductivity <0.472W/(m2.k)
Equipment shelf: 19 inches, 3 pairs of support bars;
Cabinet base: 100mm high, 2.0mm thickness
Line entry method: Bottom in and Bottom out Φ50*8
Hinge Embedded
Lighting 48V/220V LED Lamp
Lock built-in door, 3-point anti-theft lock
Payment T/T,L/C,Western Union
Warrenty 1 Year
Anti-theft design: built-in door, built-in hinge, 3-point anti-theft lock
Structure Welded/Frame/Assembly
Protection level: IP55
Color appearance: RAL7035 GREY/Custom
Working temperature -40~55℃
Delivery time 15~25 working days
Package Fumigation Wooden Box/ Pallet and Carton
Certification ISO9001/ISO14001/ISO45001
Electrical control: LED light *1
Fan DC48V/220Vac
Power Distribution (PDU)(Option) AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;DC OUTPUT: 16A/1P*4 or customer requirement
Environment Monitoring Unit(Option) 48VDCCommunication port: RS485, TCP/IP, SNMP optional
Door Sensor(Option) Monitor door open status
Water Sensor(Option) Monitor water status inside
Temperature & Humidity Sensor(Option) Monitor temperature and humidity
Smoke Sensor(Option) Monitor smoke status
Ground Bar(Option) Resistance value
Power supply(Option) 150A/200A/300A/400A/600A
