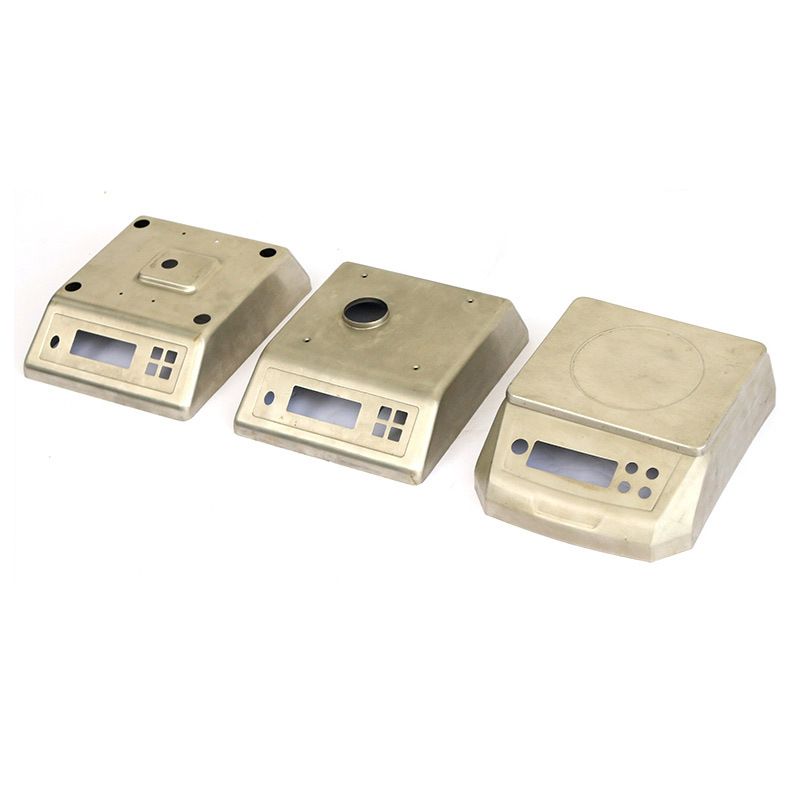

Stainless steel electronic scale frame

7 month ago
28 0
Product details
Product Overview
As a leading provider of customized weighing solutions, we specialize in the research, development, production and sales of high-performance stainless steel weight scale, covering three core categories: Custom electronic platform scale, electronic scale customization and weight scale for sale. Our products are made of aviation grade 304/316 stainless steel, combined with precision CNC machining and modular design concepts to create high strength, corrosion resistant and easy to clean weighing equipment housings to meet the needs of demanding scenarios in food processing, chemical and pharmaceutical industries, retail and logistics, and so on. Through personalized parameter configuration and function integration, we provide customers around the world with customized services for the whole industry chain from laboratory-grade precision scales to industrial-grade heavy-duty scales, with an annual production capacity of more than 500,000 units and products exported to 32 countries.
Design Features
1. Material and structure innovation
Aviation-grade stainless steel base material: 304 (general-purpose) / 316 (corrosion-resistant) stainless steel, wall thickness uniformity (≥1.2mm) through laser cutting and stamping molding process, the surface of the electrolytic polishing treatment, both fingerprints, anti-scratch characteristics, acid and alkali corrosion resistance up to the ASTM A380 standard grade 9.
Modularized architecture design: the shell adopts “split splice” structure, which supports quick disassembly and maintenance, and the bottom is equipped with adjustable casters (load-bearing 500kg/only) and non-slip rubber mats to adapt to uneven ground.
Ergonomic interactive interface: the control panel is embedded with IP67 waterproof buttons and LED LCD screen, the design of knob-type adjustment mechanism is in line with GB/T 14436-2008 standard, the operating torque is ≤0.5N-m, which reduces the rate of misoperation by 40%.
2. Function integration and adaptability optimization
Multi-scenario adaptive interface: reserved RS485/Modbus communication port, USB data export slot and external sensor expansion slot, compatible with mainstream weighing software (such as Excel scale, Pos system).
Temperature and humidity adaptable design: the internal shell is equipped with a constant temperature drying module (optional), with an operating temperature range of -20℃~60℃, a humidity tolerance of RH95% without condensation, and has passed CE certification and RoHS environmental protection testing.
Safety protection upgrade: built-in overload protection device (maximum range 150%) and anti-static coating (surface resistance ≤ 1 × 10⁹Ω), explosion-proof grade up to EX II 2G standard, suitable for flammable and explosive environment.

Manufacturing process
1. Precision machining process
Material pretreatment: Stainless steel sheet by pickling and passivation treatment (removal of oxidized skin and impurities), surface roughness Ra ≤ 0.8μm, hardness HRC ≤ 220, to ensure that the long-term use of non-deformation.
CNC molding process: five-axis linkage CNC machine tools for complex surface processing, size tolerance control ± 0.1mm, rounded corners R ≥ 2mm anti-stress concentration design.
Surface treatment process:
Electrolytic polishing: surface finish is enhanced to Ra0.2μm, reflectivity ≥ 85%, easy to clean and antibacterial rate ≥ 99% (E. coli, Staphylococcus aureus).
Passivation coating: add molybdenum to improve corrosion resistance, salt spray test (5% NaCl) time ≥ 2000 hours, far exceeding the industry standard of 1200 hours.
2. Quality Inspection System
Full-process testing nodes: from the entry of raw materials (spectral analyzer to detect the composition) to the finished product factory (3D laser scanner deformation detection), set up 12 quality barriers.
Performance verification standard:
Mechanical strength test: pass 1.5 times rated load static pressure test (no deformation for 24 hours).
Environmental reliability test: High and low temperature cycle test (-40℃~85℃), vibration test (5-500Hz random vibration), dust and waterproof test (IP6X/IP67).
Measurement compliance certification: certified by the National Center for Quality Supervision and Inspection of Weighing Instruments (NIM) to meet the JJG 539-2016 “Digital Indicator Scale” standard, with an error range of ≤±0.5%FS.

Advantageous features
1. Ultra-long service life
Material stability: stainless steel shell in the salt spray, humidity and heat environment to enhance the antioxidant capacity of 300%, the average trouble-free time (MTBF) of 100,000 hours, compared with the plastic / carbon steel shell life extended by 5-8 times.
Low maintenance cost: self-cleaning surface reduces the frequency of manual cleaning by 50%, local scratches can be repaired by polishing, and the annual comprehensive maintenance cost is reduced by 60%.
2. Multi-scenario flexible adaptation
Food-grade hygiene design: 316L stainless steel and FDA certified sealing ring to meet the requirements of HACCP system, suitable for dairy products, baking and other clean rooms.
Industrial-grade protection performance: explosion-proof structure and anti-static design through the ATEX certification, can be safely used in chemical plants, gas stations and other hazardous environments.
Balance of light weight and high strength: The honeycomb internal reinforcement design reduces weight by 25% compared to traditional structures while maintaining 45kg/m³ material strength.
3. Fast response to customized service
Flexible production system: supports small-lot customization (minimum order quantity of 50 units), shortening the cycle from drawing confirmation to delivery to 15 days (industry average 30 days).
Parametric design platform: Customers can customize the range (1kg~5 tons), accuracy (0.1g~5kg) and appearance size through online configurator, supporting 3D preview and cost estimation.
Localized service network: 12 regional technical service centers in China, providing 24-hour remote diagnosis and 48-hour on-site technical support.

Application Areas
1. Food and Pharmaceutical Industry
Food processing line: for weighing raw materials, packaging and sorting, in accordance with ISO 22000 hygiene standards, easy to clean and disinfect.
Pharmaceutical workshop: explosion-proof electronic scale shell equipped with VOCs low emission coating, to avoid drug contamination, through the GMP certification.
2. Industrial and logistic areas
Chemical plant: corrosion-resistant shell to resist strong acid and alkali corrosion, suitable for plating solution, chemical raw materials weighing.
Port Terminal: Heavy-duty stainless steel scale body (maximum range 20 tons) with rubber shockproof base, suitable for dynamic weighing of bulk cargo.
3. Retail and commercial scenarios
Intelligent supermarkets: support code-sweeping weighing, self-service settlement function, integrated RFID tag identification system in the shell, anti-cheating rate increased by 90%.
Precious metal trading: high precision (0.001g) electronic scale equipped with anti-magnetic shielding layer to prevent electromagnetic interference resulting in measurement errors.
4. Special Industry Applications
Laboratory research: ultra-clean bench level housing (cleanliness Class 1000), built-in temperature and humidity sensors and data loggers.
Agriculture and breeding: corrosion-resistant scales are suitable for feed rationing and live animal weighing, and have passed IP68 waterproof test.
Service & Commitment
We provide lifetime warranty service (5 years warranty for core components), free technical consultation, software upgrade and parts replacement. We have passed ISO 9001 quality management system, ISO 14001 environmental management system and ISO 45001 occupational health and safety management system, and we aim at “zero defect delivery” to help our customers reduce cost and increase efficiency, and create a smart weighing ecosystem together.

Product Highlights Summary
✅ Material upgrading: aviation grade stainless steel + electrolytic polishing, life extension 5-8 times.
✅ Technological innovation: 5-axis CNC machining + full-process inspection, precision up to 0.1g~5kg
✅ Scene coverage: -20℃~60℃ wide range of working temperature, suitable for food, chemical and other 12 major industries
✅ Service Guarantee: 15 days fast delivery + lifetime warranty, 24 hours technical response.
