WFJ Series Air Classifier Mill
WFJ
Product Introduction:
The ACM mill operate using various mechanisms such as impact, pressure, and attrition to break down materials
into finer particles. They are commonly used in industries where precision and fineness of the ground material are
crucial, such as pharmaceuticals, food processing, cosmetics, and chemical manufacturing.

Food, such as,  sugar, cocoa, corn, spices, rice, chili, pepper, oil and wheat, soybean, garlic, star anise, cinnamon,
dried small shrimps, pumpkin and other industrial materials crushed.

Working Principle:
This ACM mill is composed of grinding host, cyclone separator, pulse dust collector, blower, electric control box,
frame and pipes. After materials are sent to the milling chamber by screw, it will be sheared and crushed by the blade
of high speed rotation. The powders will pass through the guide ring and enter the classifying chamber.
Under theaction of aerodynamic and centrifugal force, powders larger than the graded particle size will be thrown
back to the milling chamber for further crushing. Powders smaller than the critical diameter will enter the cyclone
separator and a small part of the super fine dust will enter the pulse dust collector.

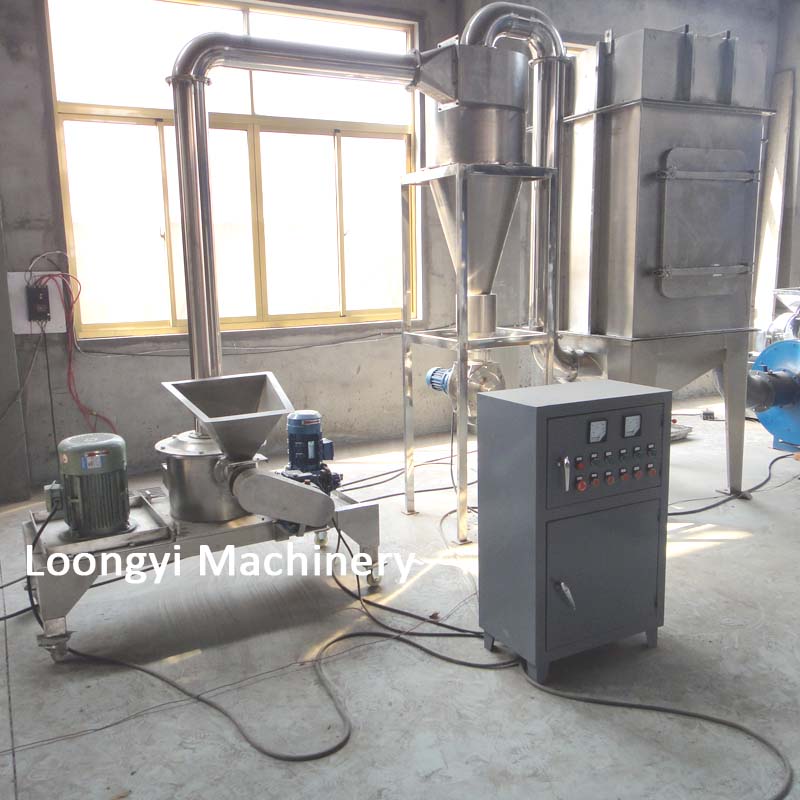

Product Pictures:

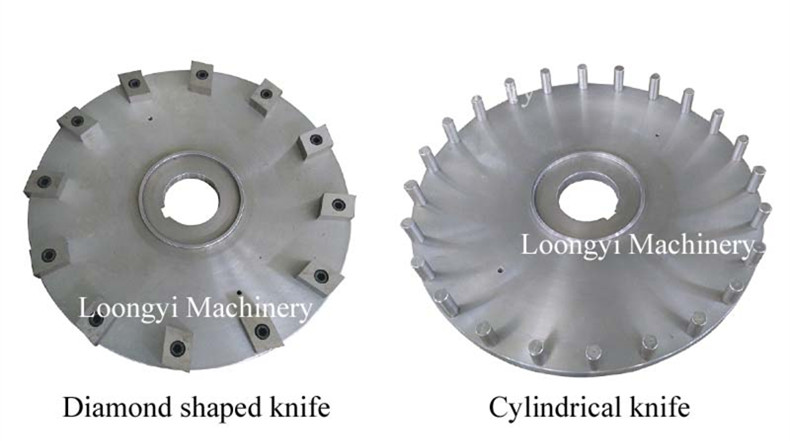

Two Types Blades:

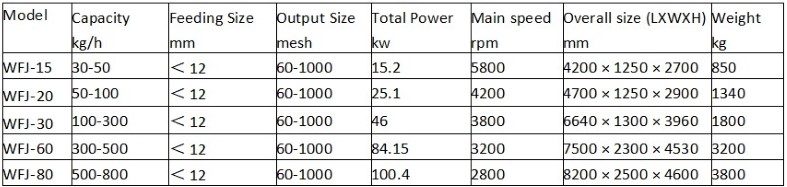

Specification
WFJ Parameter

Grinding Effect:
after grinding

Company Information
photobank (1)
Air Classifier Mill, ACM Mill, Acm grinder, acm pulverizer, fine powder grinding machine, spice mill, spices grinder machine, spice grinding machine.
