4 Sides Wood Edge Sanding Machine

4 Sides Wood Edge Sanding Machine

8 month ago

6 0

Foshan Sandwell Machinery Co.,ltd

 2 year year

Product details

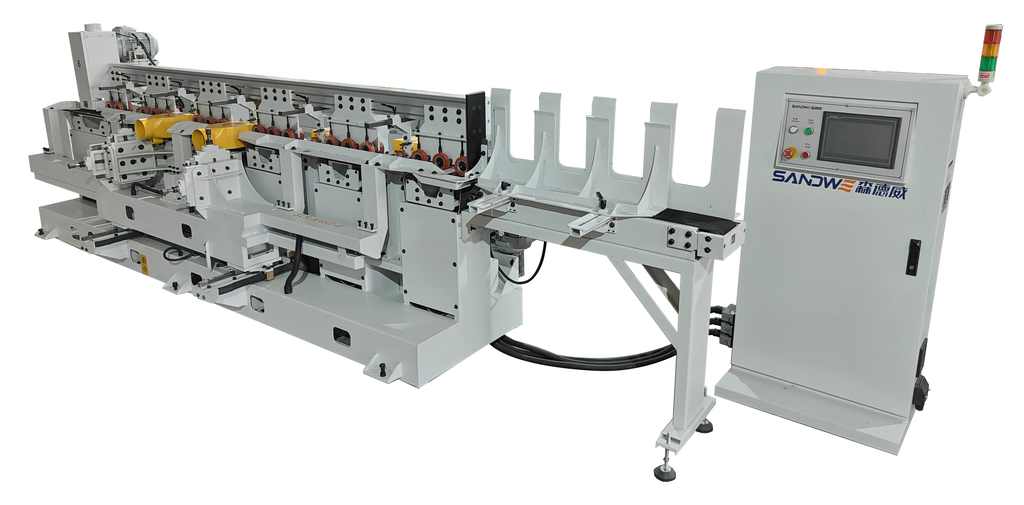

Four- Side Milling Angle Sander:
Shaped sand blasting machine SLS-K4SP2-F

Before sanding vs After sanding

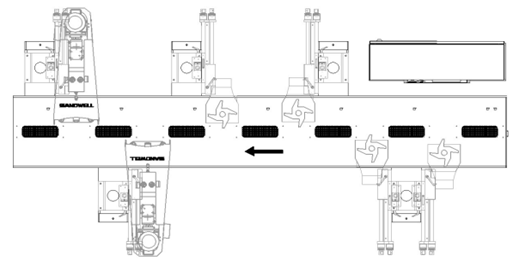

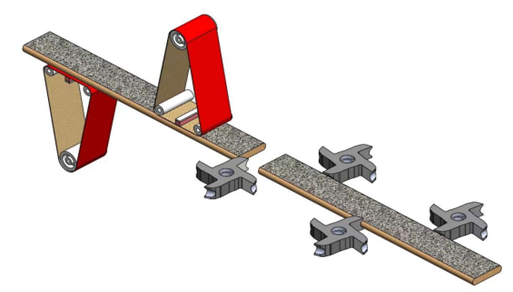

4 Sides Wood Edge Sanding Machine process layout：:

Mechanical characteristics:

The mechanical design conveying method is synchronous belt conveying, which requires two sections of sanding and conveying;
The mechanical adjustment method is digital adjustment, which can achieve rapid conversion of workpieces of different sizes during the processing process (adjustment of the width and thickness of the workpiece);
The mechanical milling function uses a single-sided dual-blade process, with blade one for rough milling and blade two for fine milling. During the adjustment process, a single-sided fixed mode is used to adjust the other side. The milling cutter spindle motor is a high-speed motor with a speed of 12,000 revolutions per minute;
The contact plate for mechanical feeding is made of rubber, effectively protecting the surface of the plate from scratches;
The single machine is equipped with a 1-meter long automatic feeding bin, which can reduce the labor intensity of the loading personnel;
Sanding is done using a sanding frame, which can be swung left and right for better sanding results and higher utilization of the sanding belt;
The conveying speed, milling cutter speed, and abrasive belt all have variable frequency speed regulation functions;

Four-Side Milling Equipment technical parameters：

Equipment model	SLS-K4SP2-F
Thickness of processed plate	10-25mm
Processing plate length	greater than 400mm
Transmission power	2.2KW
Conveying speed	3-15m/min
High-speed milling cutter motor	3.7KW, 12000r/min, 200HZ, 380V
Triangular sand rack motor	1.5KW, 1440r/min, 50HZ, 380V
Working pressure	0.6-0.8mpa
Overall dimensions	3500mmX 1300mmX 1600mm
Total power	20.4KW
