GF series dry granulators

Product Overview

Dry granulator is a kind of equipment that does not need to add water to stir, mix into granules, dry and other intermediate processes to directly process materials from powder to granules, according to the way of conveying, dry granulator can be divided into two forms: vertical conveying and horizontal conveying, horizontal conveying dry granulator has advanced technology and stable performance,

The granulation rate is high, and the dry granulator produced by our company is a horizontal conveying type.

GF series dry granulators

Equipment features:
Compared with other granulation equipment, the dry granulator has the following characteristics:
1. Dry powder is directly granulated, without any binder;
2. The material is mechanically extruded, which does not destroy the chemical properties of the material and does not reduce the effective content of the product;

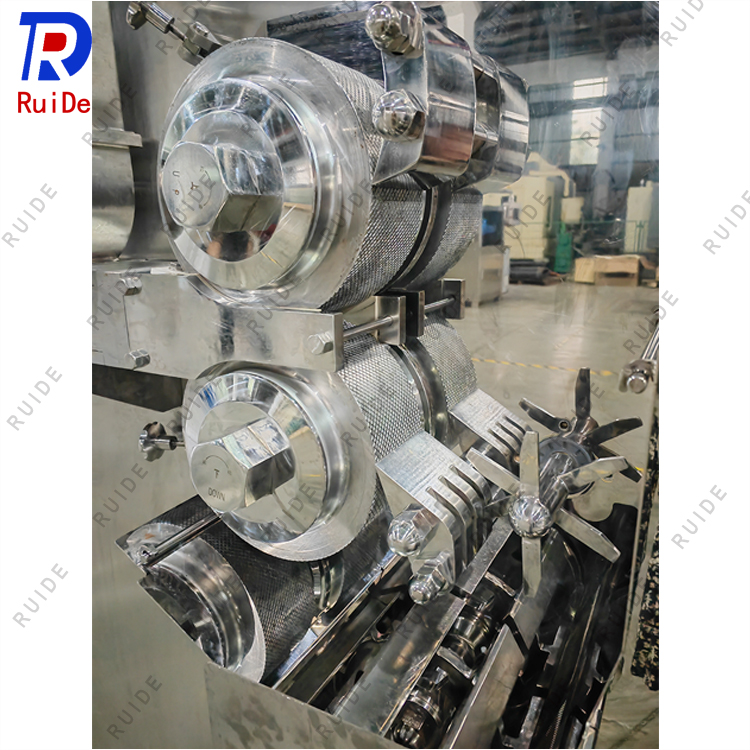

3. The pressure wheel is arranged up and down, which eliminates the influence of gravity on the material and ensures the uniformity of the material before tableting;
4. The gap of the pressure wheel is adjustable, so that the tablet density is consistent and the granulation is uniform;
5. Low energy consumption and small footprint;

6. High granulation rate and high production efficiency;
7. With hydraulic system, the hardness and density of the particles are adjustable;
8. The structure of the equipment is simple, and it is easy to disassemble and clean;
9. Equipped with vacuum extraction device to make the tablet more dense and the granulation rate is high;
10. Equipped with three kinds of grain pressure wheels, including reticulated grain, straight grain and smooth surface, matching materials with different characteristics;
11. The control system is equipped with memory, which can store tens of millions of sets of production data;

12. The equipment is controlled by PLC, and the man-machine interface is beautiful and concise, easy to operate, and easy to learn.

Equipment structure
GF series dry granulator is a kind of leading technical performance, economic and environmental protection products carefully developed by our company, the equipment occupies a small area, energy saving and environmental protection, easy to disassemble and clean, is an ideal production equipment for mass granulation, the equipment is mainly composed of the following parts:
1. a feeding system;
2. Deceleration and direction change system;
3. a conveying device;
4. an extrusion system; 5. a whole granulation system;
6. a front cover; 7. a frame;
8. an access door; 9. a control system;
10. a hydraulic system; 11. a gas path system;
12. a water cooling system; 13. a vibrating device

Technical parameters

Model	GF100	GF100E	GF160	GF200	GF200E	GF240	GF360	GF500
Capacity（kg/h）	1.5～15	12～35	30～100	80～200	120～250	150～320	300～650	600～1000
Total Power (kw)	3.35	4.43	6.3	11.24	14.24	15.94	28.24	35
Roller size（mm） Diameter x Width	100×25	100×40	160×50	200×75	200×100	240×100	360×150	500×200

1. Production capacity: 1.5~1000kg/h
2. Total power: 3.65-35Kw
3. Power condition: 380V/50Hz/3P
4. Control system: PLC+touch screen intelligent control
5. Equipment material: SUS304 stainless steel (SUS316L stainless steel optional)
