DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

 2 year year

Product details

Model	1200x2600
Max.machine speed(Roller Feeder (Pcs/min)	200
Common spending max.	1200*2600
Max. paper skip feeding size (mm)	1600x2600
Min. paper feeding size (mm)	450×630
Max. printing area (mm)	1200x2450
Printing plate thickness (mm)	7.2
Machine wall thickness	65mm
Printing accuracy(mm)	±0.5
Slotting accuracy(mm)	±1.5
Print roller diameter(mm)	408
Slot knives width (mm)	7.5mm
Die cutting accuracy(mm)	±1.5

1.The electric parts is from panasonic

2.This machine is made in line with European concepts featuring reliable functions and safety, and CE certification issued;

3.Automatic control system

4.Full computer control system storages production orders on the slot unit,make the order more easy and fast order change and simple operation;

5.All transmission rollers are made of top quality steel processed through dynamic/static balance tests, chrome plating and polishing;

6.Very good transmission gears are adopted which are hardened and ground, >60o Rockwell hardness;

7.Japanese bearings are employed and Harbin bearing NO.1 in china.

8.The major electric control elements are purchased from famous suppliers such as Schneider France

9.Printer is equipped with imported ceramic anilox cylinder.

10.Vacuum suction case adopts advanced techniqueThe vacuum auxiliary feeding is assisted by 7.5kw high pressure centrifugal fan, whose air volume is set with frequency inverter to make the feeding stable and smooth, even the thin and warp blanks can be conveyed successfully. In printing, damper can be set in line with blanks of different sizes to ensure sufficient air volume for the registration;

11. Unit side panels are made of quality steel

12.Spray lacquer: Before paint spray, components shall be through derusting - posphating – spray lacquer – stoving varnish to let its surface functions in derusting, hardness and durability;

13. Hot air and IR dryer can be furnished to quicken drying to realize full page DPI printing on coated blanks;

14. Every unit of overall machine can be released automatically or separately, electric shifting and pneumatic locking with acoustic alarm in traveling secure operators safety, and the auto brake is able to remain machine without running;

15. Emergent protection: Emergency switch is installed inside every unit to let operator stop the unit running inside machine for more security;

16.A large digital screen installed under the machine cable channel displays machine printing speed (sheet/min) to facilitate operator watch machine speed in different positions; (This machine not with,but can add it )

17. The machine with transmission gear box installed to show oil level connector

18.A central duster is installed.

Very good gears

1. Control System

Full automatic production control system, merely an order of box information is input on touch screen realize automation and enhance production efficiency;

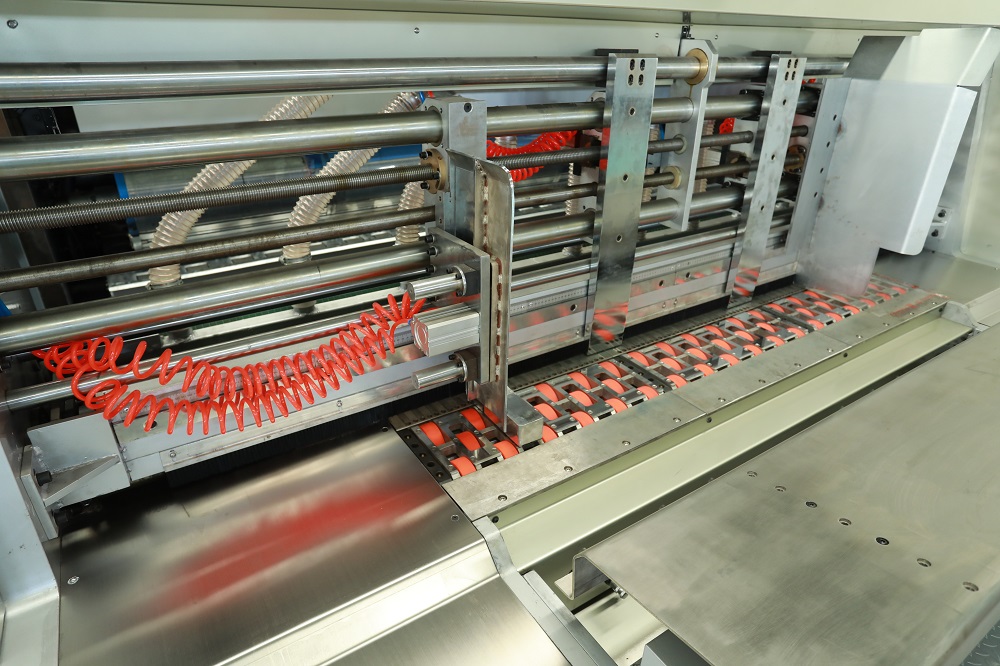

2. Wheel Front Edge Feeder

1) Wheel lead edge feeder featuring accurate feeding, little vibration, long service and easy maintenance;

2) High feeding accuracy 3) The mechanical vibration can be eliminated basically to avoid the vibration caused by cam transmissions so as to minimize the clearances error in the process of pull wheels running;

4) Left/right and back raffles are set on touch screen, which is eclectically set and digitally controlled and a side squaring is also installed to secure precise feeding.

3. Pull Roller

1) Dual pulling roller system for more stable feeding;

2) The upper pulling roller’s steel core surface is wrapped with buffering and abrasion proof rubber. The elastic positioning system ensures smooth and precise conveying to enhance printing registration. The bottom roller is adopt steel material.

4. Auto Zeroing

1) Feeder and printer are installed with auto zeroing devices;

2) With zeroing device, it will ensure all the units have the unified setting reference to be able to set the correct position and minimize blank waste.

5. Units Engagement or Disengagement

1) Units engagement or disengagement is controlled with motor along with the acoustic alarm when unit is shifting to secure operators safety;

2) When units release, the brake of every unit acts automatically to let units gears meshed at an accurate point so as to position printing phase;

3) Main motor actuates start protection, machine cannot start when main motor is not locked; under main motor running state, unit shifting-in button pressing is invalid;

4) Transmission shaft is equipped with overload protector.

6. Duster (Multiple Row Brushes and Static Eliminator)

Combined with the upper air suction dust removal system, the dust removal brush can greatly remove impurities of the board printing surface and improve the printing quality.

The duster’s airflow and pressure is set by means of frequency inverter so as to adapt it to the blanks of different sizes and warp to improve printing quality, the multiple row brushes can be elevated automatically according to the blanks of different caliper.
