16A IP68 Waterproof Rocker Switch
Yeswitch MR-2 series rocker switch is patented Standard Mini Rocker Switch with IP68 Protection. The rocker switch is approved to UL, CUL & ENEC, up to 16(8)A. The 13x19mm standard mini rocker switches with IP68 protection level.
The IP68 Rocker switch was unique aesthetic designed. With ON-OFF or ON-ON function and quick connect terminals. It is built in with optional neon lamp, DC LED lamp upon request.

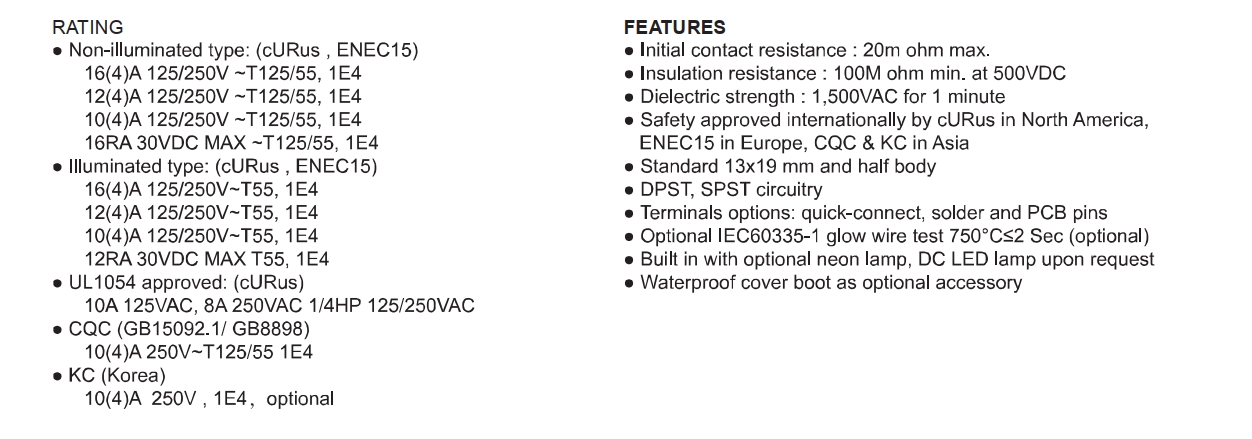

Specification:
· 10(4)A 125/250V~T55, (cURs,ENEC15)
· 16(8)A 125/250V~T55, (cURs,ENEC15)
· 16RA 30VDC T55 , IP68 (cURs,ENEC15)
· Initial contact resistance : 20m ohm (max.)
· Insulation resistance : 100M ohm (min,) at 500VDC
· Dielectric strength : 1,500VAC for 1 minute
· Electrical life : 10,000 cycles
· Switch for Class II appliances
· Base : Nylon 66, UL rated 94V-2 min
· Actuator : Nylon 66, UL rated 94V-2 min
· Spring : Piano wire
· Contact : Silver alloy
· Terminals: Silver plated Copper
· China patent no: ZL201720184354.5
Our Advantages
From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
