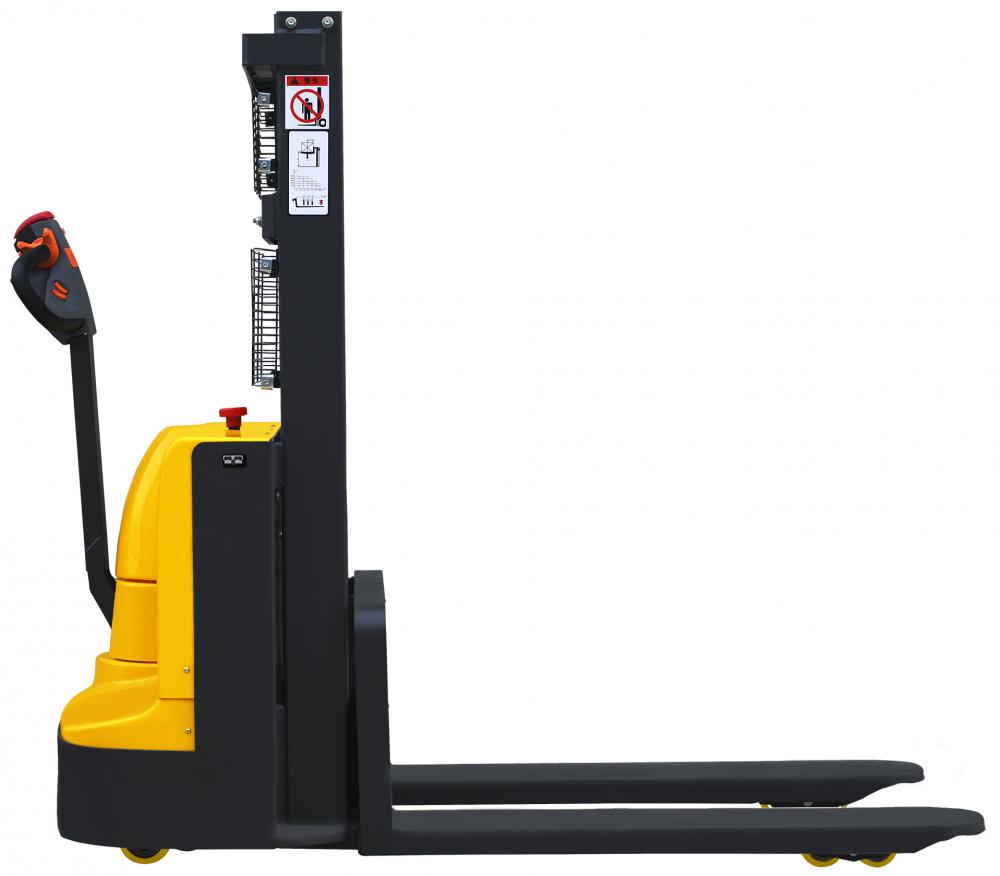

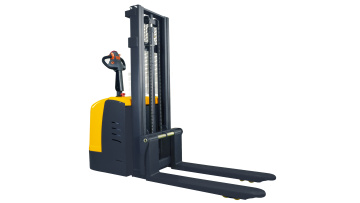

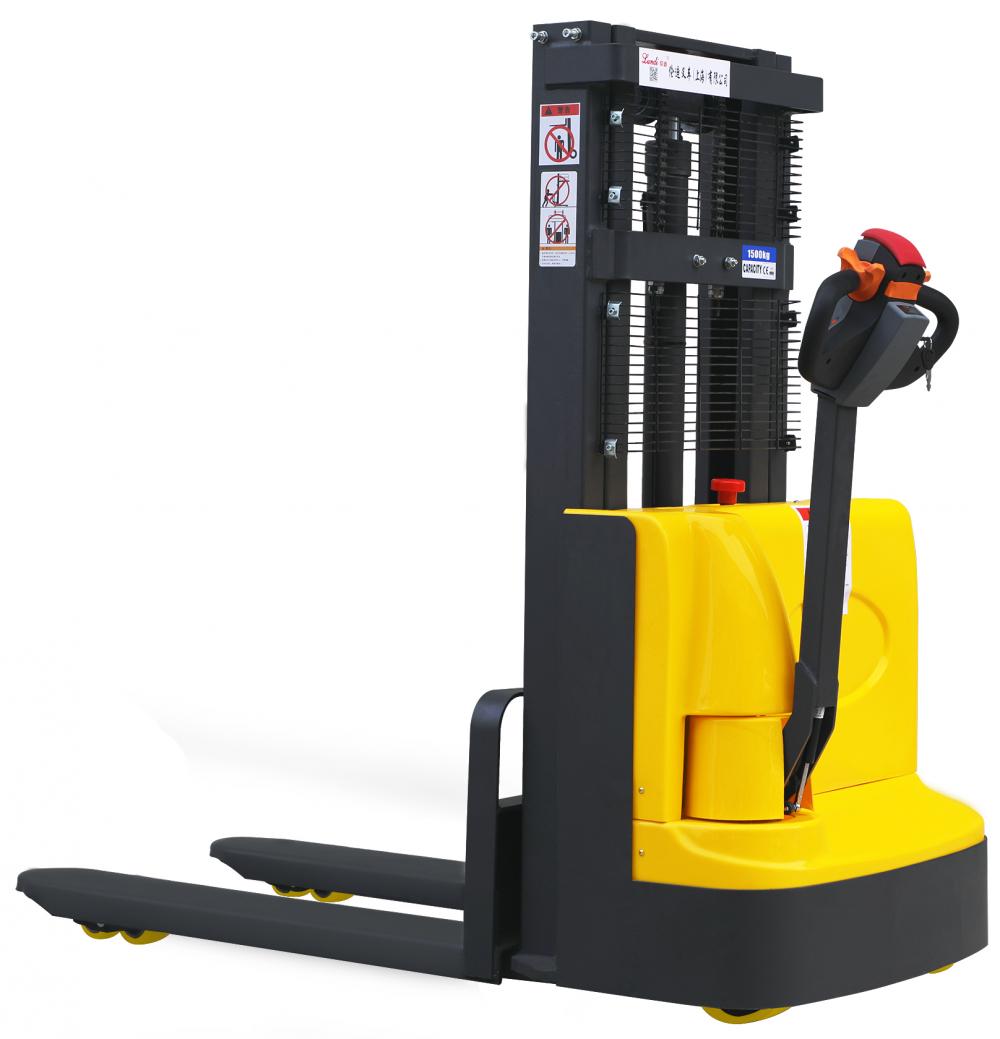

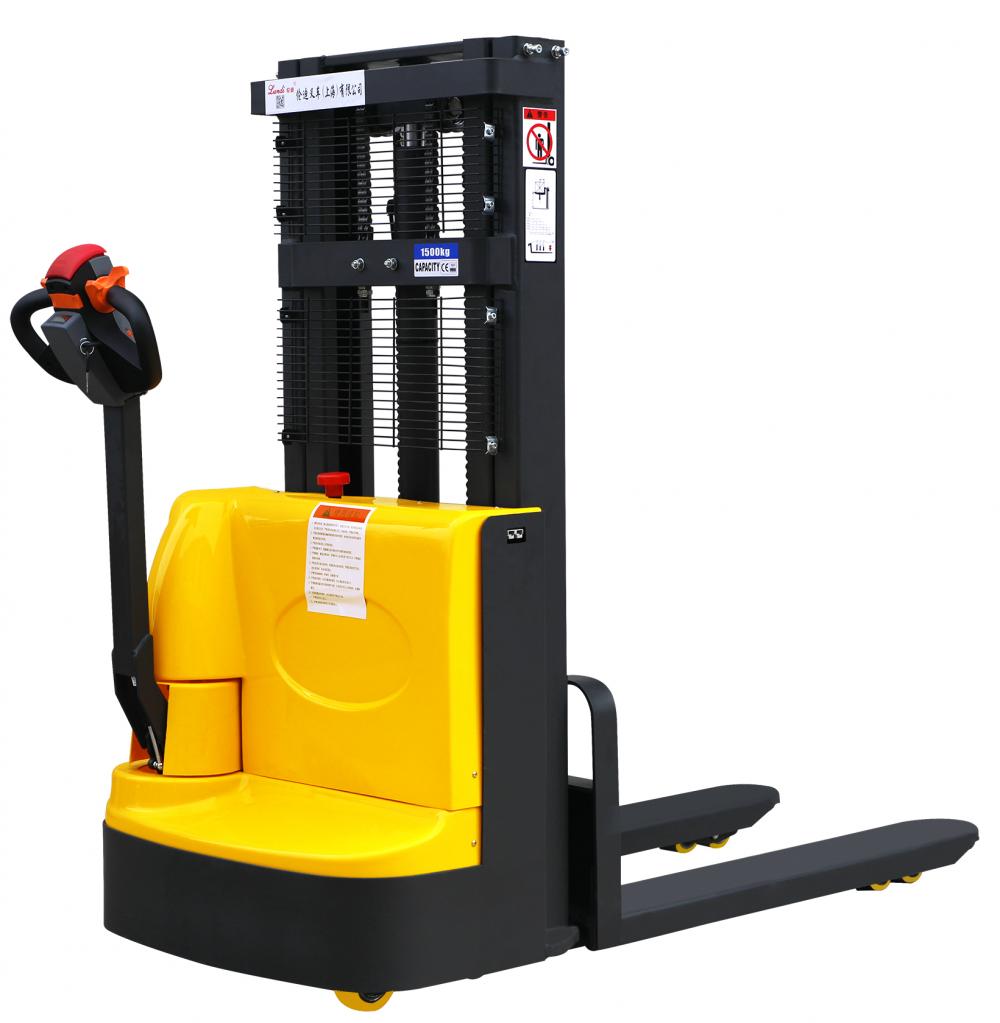

With a rated load , it is easy to work on a 5% slope.
The stacker is compact, flexible, and has good maneuverability. It can also work efficiently and freely in a space with a narrow space.
The handle has a turtle speed switch and the handle has an upright walking function.
With adjustable balance wheel, the car walks smoothly and there is no shaking on the left and right.
With good shock absorber effect, the balance wheel assembly is detachable as a whole, which is convenient for maintenance and maintenance.
Walkie stacker forklifts or pallet stackers, also known as straddle stackers, are ideal for lifting pallets in some of the largest warehouse applications. Walk-behind pallet jacks or walk-behind forklift stackers are often used to transport products over short distances and to lift pallets in places that are not easily accessible by conventional forklifts.

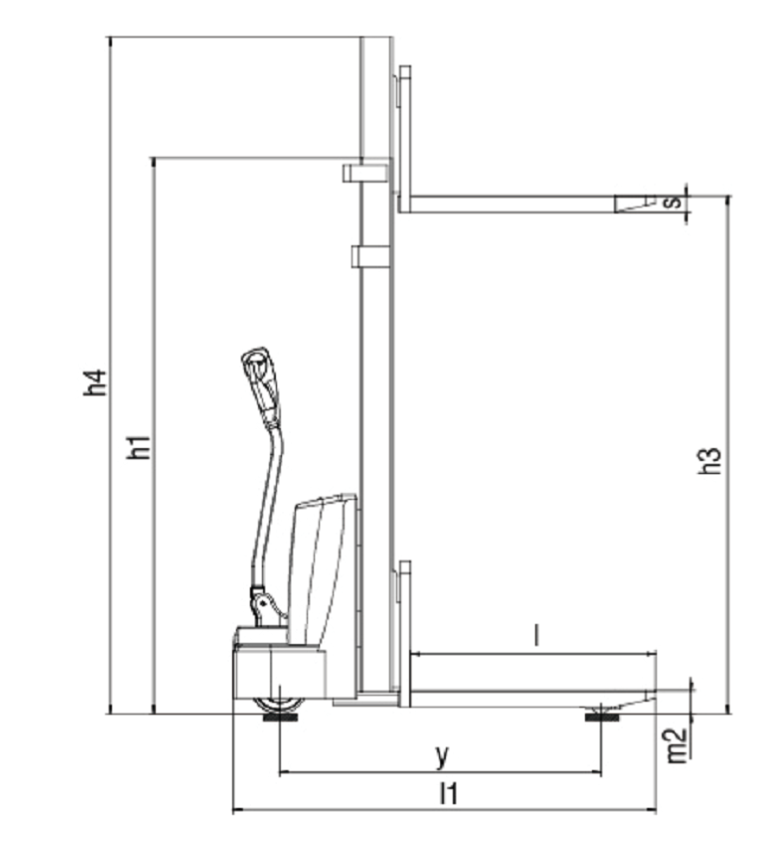

| Model | CDD-A10 | |
| Drive mode | Electric (battery) | |
| Driving mode | Walking walk | |
| Rated load | Question (kg) | 1000 |
| Load centre distance | c (mm) | 500 |
| Weight (with battery) | kg | 418 |
| Wheels | Polyamine ester wheel | |
| Wheel size, front wheel | φ210×70 | |
| Wheel size, rear wheel | φ80×70 | |
| Additional wheels (dimensions) | φ100×50 | |
| Wheel, front and rear number (x= drive wheel) | 1 x+2/4 | |
| Front wheel | b10(mm) | 525 |
| Rear wheel | b11(mm) | 525 |
| Lift height | h14(mm) | 1600 |
| Height of door frame retracted | h15(mm) | 2090 |
| Lower height | h13(mm) | 90 |
| Overall length | l1(mm) | 1760 |
| Height of gantry during operation | l2(mm) | 2090 |
| Overall width | b1(mm) | 800 |
| Fork size | S/e/l( mm) | 60/170/1100 |
| Fork width | b5(mm) | 690 |
| Distance center off clearance | m2(mm) | 40 |
| Channel width, tray 1000 x1200(1200 cross fork placement) | aHoly Spirit(mm) | 2200 |
| Channel width, pallet 800 x1200(1200 placed along fork) | aHoly Spirit(mm) | 2100 |
| Turning radius | wa(mm) | 1370 |
| Speed, full/no load | km/h | 4/5.6 |
| Speed up, full load/ no load | m/s | 0.08/0.1 |
| Drop speed, full load/ no load | m/s | 0.12/0.09 |
| Climbing capacity, loading/unloading | % | 3/7 |
| Driving brake | Electromagnetic brake | |
| Drive motor power | k W | 0.75 |
| Lift motor power | k W | 2.2 |
| Battery voltage/ rated capacity | V/Ah | 24 V/80AH |
| Battery weight | kg | 26*2 |
| Battery size (length x width x height) | mm | 260*170*210 |
| Driver's Ear Noise Level din12053 | d B (A) | ≤70 |

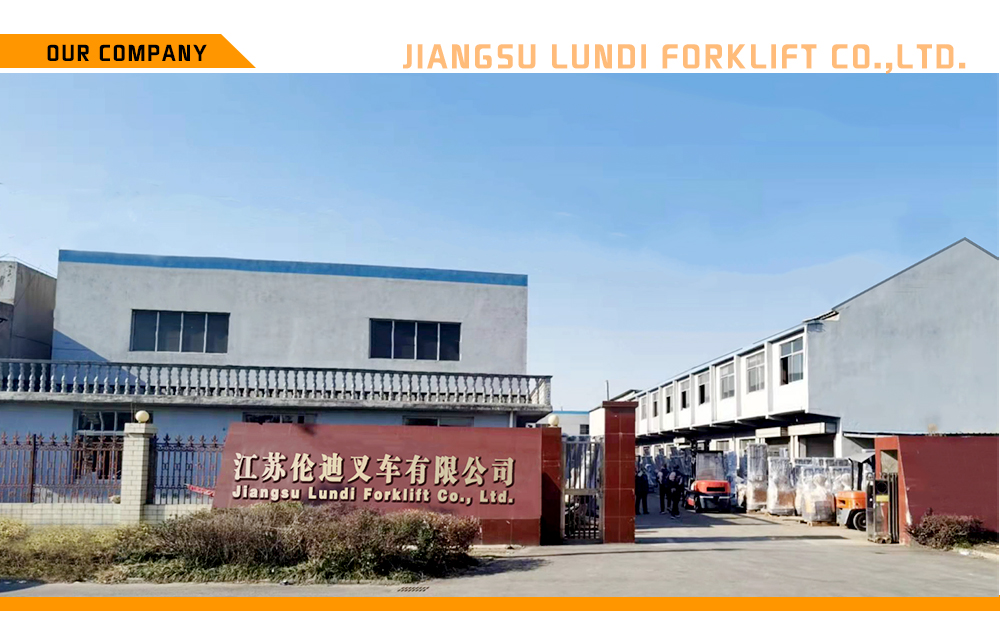

Jiangsu Lundi Forklift Co., LTD is an enterprise specializing in the production of storage equipment, covering an area of 3000 square meters.We specialize in producing various types of hydraulic manual pallet trucks and pallet trucks, roller pallet trucks, various lifting platforms, pallet trucks with scales, semi-electric, fully electric pallet trucks and pallet trucks.Mainly used in warehouses, ports, airports, factory workshops.Our factory has laser cutting machine, CNC cutting machine, hydraulic machine, shot blasting machine and a full set of advanced equipment.At the same time, we also have a professional design and production technical team, can meet the different needs of customers, we can support OEM production line, we provide 24-hour pre-sales and after-sales support, to ensure that we and customers timely communication.In addition, the products produced by our company have obtained UDEM certification, which ensures the quality of our products.The company's products are exported to Europe, Southeast Asia and other countries and regions, well received by domestic and foreign customers.In addition, our company is located in Taixing city, Jiangsu Province, which is close to Shanghai port. Meanwhile, there are many airports in the city near the factory, so it is very convenient for customers to visit here. Customers from all over the world are welcome to visit our company.
Q1:Are you a factory?
A1:Of course. Jiangsu Lundi Forklift Co., Ltd. was founded in 2016,but has experienced research and development team to meet your needs
Q2.How long does it take to execute my order?
A2.Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule
Q3.Do you offer custom design?
A3.Custom design is surely available.We have very rich experience in customizing Forklifts.
Q4: How about the sample policy?
A4.We can accept sample order for testing quality But sample and express charge should be on customer's account.
Q5: How about the delivery time?
A5:Usually Lundi producing time is 15-20 working days after we receive the advanced payment For some standard products, we have most in stock and could delivery immediately.
Q6:What is your payment term?
A6:T/T or L/C. if you want any other way, please contact us.
Q7:May I visit your company?
A7.We are always happy to serve you.Our factory is located in Taizhou, Jiangsu province. There are international flights nearby and the traffic is well developed. if you would like to order our prod ucts and visit our company, please contact us for an appointment.
