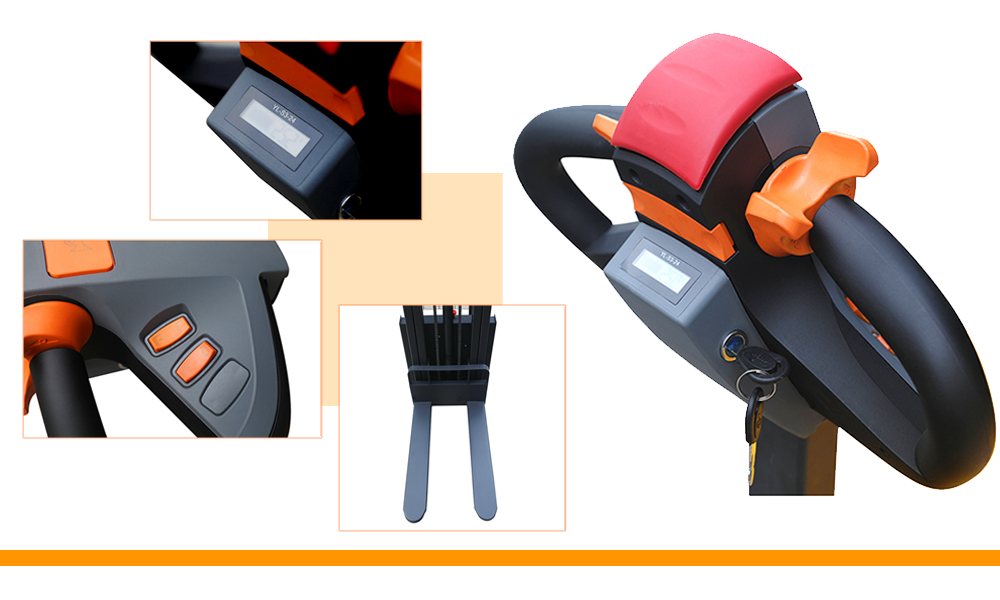

model
|
|
CDD-A10/15
|
|
Drive way
|
|
Electric (battery)
|
|
Driving style
|
|
Walking
|
|
Rated load
|
Q(kg)
|
1000/1500
|
|
Load center distance
|
c(mm)
|
500
|
|
Weight (with battery)
|
kg
|
418/470/484/503/526
|
|
Wheels
|
|
Polyurethane wheel
|
|
Wheel size, front wheel
|
|
φ210×70
|
|
Wheel size, rear wheel
|
|
φ80×70
|
|
Additional wheel (size)
|
|
φ100×50
|
|
Wheels, number of front and rear (x = driving wheels)
|
|
1x+2/4
|
|
Front wheel track
|
b10(mm)
|
886
|
|
Rear wheel track
|
b11(mm)
|
525
|
|
Lifting height
|
h14(mm)
|
1600/2000/2500/3000/3500
|
|
Height when the mast is retracted
|
h15(mm)
|
2090/1590/1840/2090/2340
|
|
Height when lowered
|
h13(mm)
|
90
|
|
Overall length
|
l1(mm)
|
1760
|
|
Height of mast during operation
|
l2(mm)
|
2090/2550/3050/3550/4050
|
|
Body width
|
b1(mm)
|
800
|
|
Fork size
|
S/e/l(mm)
|
60/170/1100
|
|
Outer width of fork
|
b5(mm)
|
690
|
|
Ground clearance of wheelbase center
|
m2(mm)
|
40
|
|
Aisle width, pallet 1000x1200 (1200 placed across forks)
|
Ast(mm)
|
2200
|
|
Aisle width, pallet 800x1200 (1200 placed along the fork)
|
Ast(mm)
|
2100
|
|
Turning radius
|
Wa(mm)
|
1370
|
|
Driving speed, fully loaded/unloaded
|
Km/h
|
4/5.6
|
|
Lifting speed, fully loaded/unloaded
|
m/s
|
140
|
|
Lowering speed, full load/no load
|
m/s
|
101
|
|
Gradeability, loading/unloading
|
%
|
March 7
|
|
Service brake
|
|
Electromagnetic brake
|
|
Drive motor power
|
kW
|
0.75
|
|
Increase motor power
|
kW
|
2.2
|
|
Battery voltage/rated capacity
|
V/Ah
|
24V/80AH
|
|
Battery weight
|
Kg
|
26*2
|
|
Battery size (length X width X height)
|
mm
|
260*170*210
|
|
The noise level at the driver's ear complies with DIN12053
|
dB(A)
|
≤70
|
If you are interested in the product, contact 2bvideo.com for more information for more information
