3 Way Brass Solenoid Valve 1/8'' 1/4''
Features of VX Series 3 Way Solenoid Valve:
1. Working Medium: Air, Water, Gas, Liquid, etc
2. Working Pressure Range: 0 to 13 Bar (See the parameter table below for details)
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass, Stainless Steel
5. Port Size: 1/8'', 1/4''
6. Orifice Size: 1.5mm to 4mm
7. Operation: Direct Acting
8. Function: 3 Way Normally Closed, 3 Way Normally Open, 3 Way Universal Operation
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

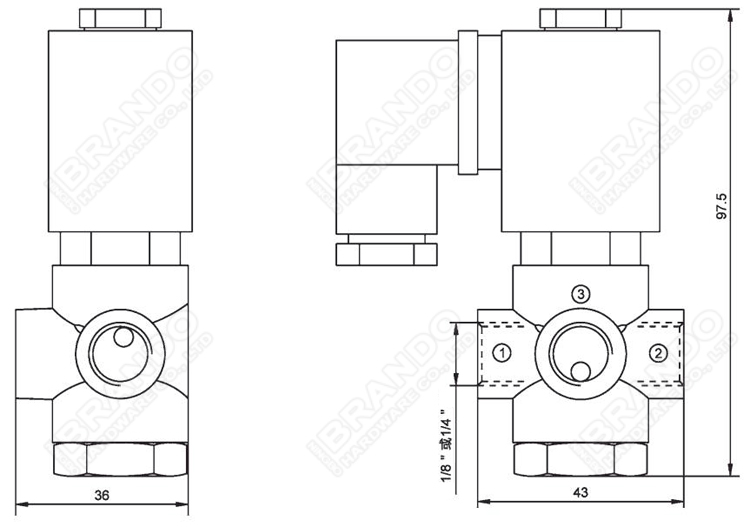

Main Dimension of VX Series Solenoid Valve:
Technical Data of VX Series Solenoid Valve:
|
Model
|
Function
|
Orifice Size
(mm)
|
Port Size
(inch)
|
CV
|
Working Pressure (bar)
|
Medium Temperature
|
|
|
AC
|
DC
|
||||||
|
VX31
|
3 Way, Normally Closed
|
1.5
|
1/8'', 1/4''
|
0.07
|
13
|
11
|
NBR: -5 to +85℃,
EPDM: -5 to +150℃,
FKM: -10 to +150℃
|
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX32
|
3 Way, Normally Open
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX33
|
3 Way, Universal Operation
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||

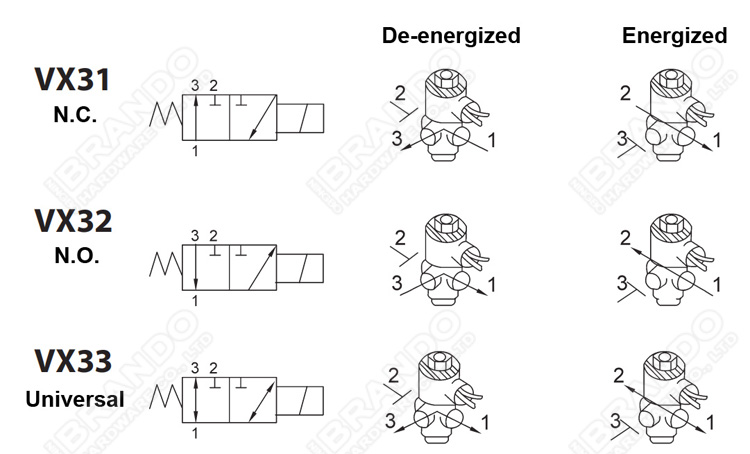

Working flow direction of VX Series Solenoid Valve:
