Introducing the QM IP65 8kW On/Off Grid Hybrid Power Solar Home Three Phase Inverter, a cutting-edge solution designed to seamlessly integrate solar energy in both on-grid and off-grid settings.
Specifications:
Output Power: 8000W
Certifications: SAA, CE, ROHS, ISO9001, CCC
Inverter Type: DC/AC Inverters
Power Source: Solar Power
Circuit Topologies: Full-Bridge Type
Wave Nature: Sine Wave Inverter
Max Efficiency: 97.60%
Euro Efficiency: 97.00%
Power Factor: 0.8 Leading to 0.8 Lagging
Max AC Passthrough: 50A
Noise Level: <45dB
Communication: RS485; Can
Cooling System: Fan
Surge Protection: DC Type II/AC Type III
MPPT Trackers: 2
PV Input Voltage: 160V
Peak Power (Off Grid): 2 Times of Rated Power, 10s
No. of Strings Per MPPT Track: 1+1
External Temp Sensor: Optional
Li-Ion Charging Strategy: Adaptable to BMS
Battery Compatibility: Lead-Acid or Lithium-Ion
Transport Package: Standard Export Carton

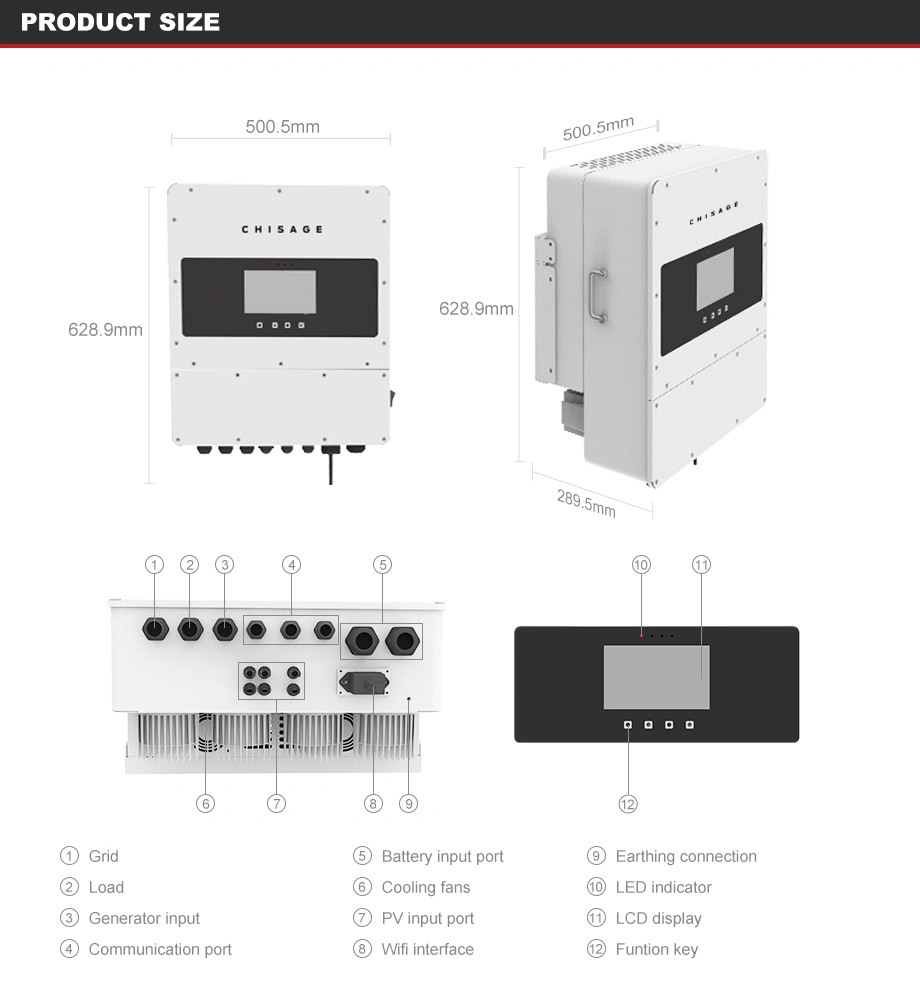

Dimensions: 500.5628.9289.5mm
Package Size: 83.00cm * 64.00cm * 42.00cm
Package Gross Weight: 35.000kg
Key Features:
· Multi-Inverter Compatibility: Support for diverse power inverters' parallel connection
· Scalable Performance: Parallel operation for unlimited on-grid and off-grid possibilities
· Dual Operating Modes: Triple-phase and full-power single-phase support
· Balanced Power Distribution: Each phase can deliver up to 50% rated power
· Seamless Mode Transition: ON/OFF GRID switch with EPS output
· Advanced User Interface: Vibrant 7-inch touch LCD with IP65 protection
· Intelligent Energy Management: Battery charging/discharging based on customizable time settings
· Enhanced Energy Inputs: Dual AC input ports for both grid and diesel generator
· Energy Reserve: Capability to store energy from diesel generator
· Safety Focus: Optional ARC fault detection system

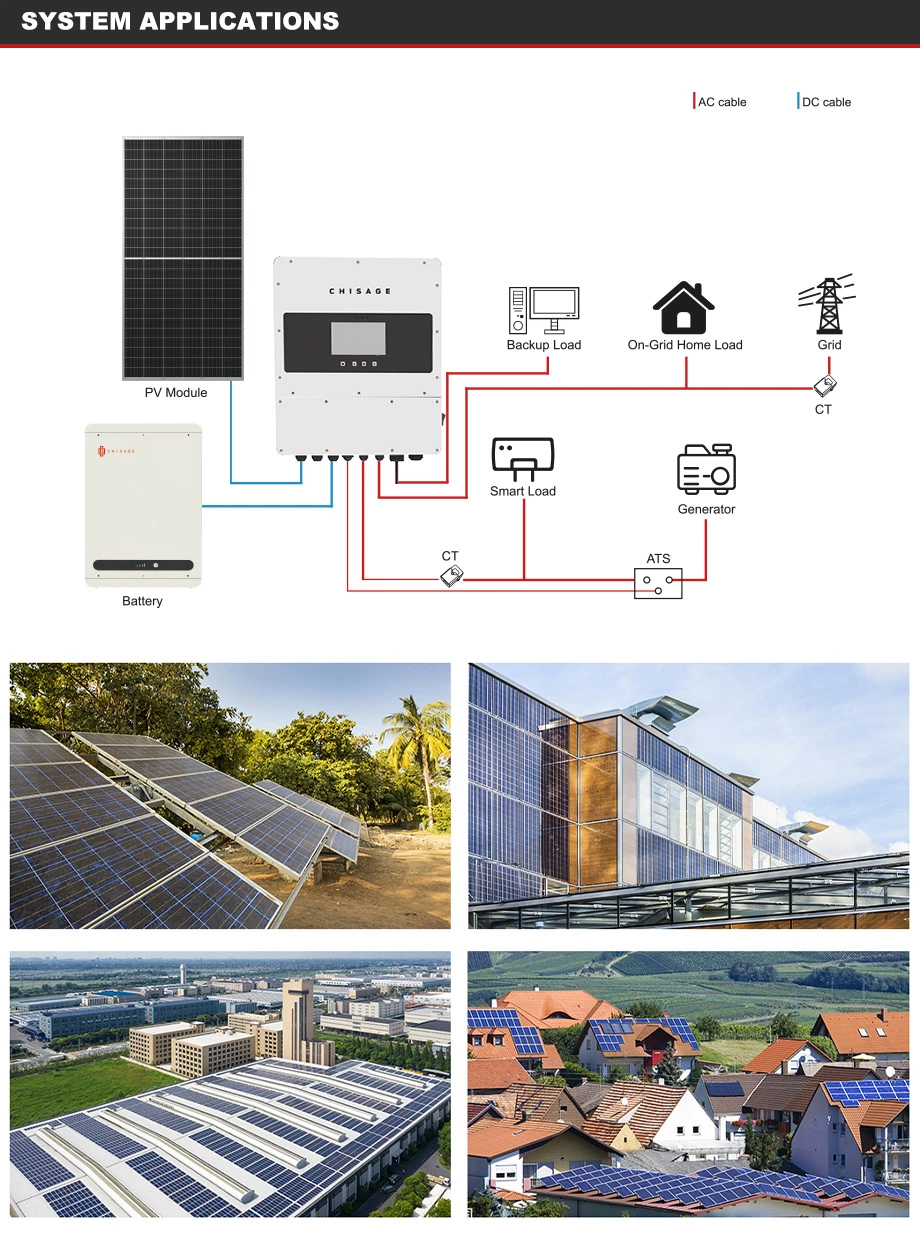

Elevate your solar energy experience with the QM IP65 8kW On/Off Grid Hybrid Power Solar Home Three Phase Inverter. Its versatility and advanced features cater to various energy storage setups, be it residential, hybrid, or off-grid installations. We also provide on-grid inverter, off-grid inverter, micro inverter, solar energy storage system and so on.
