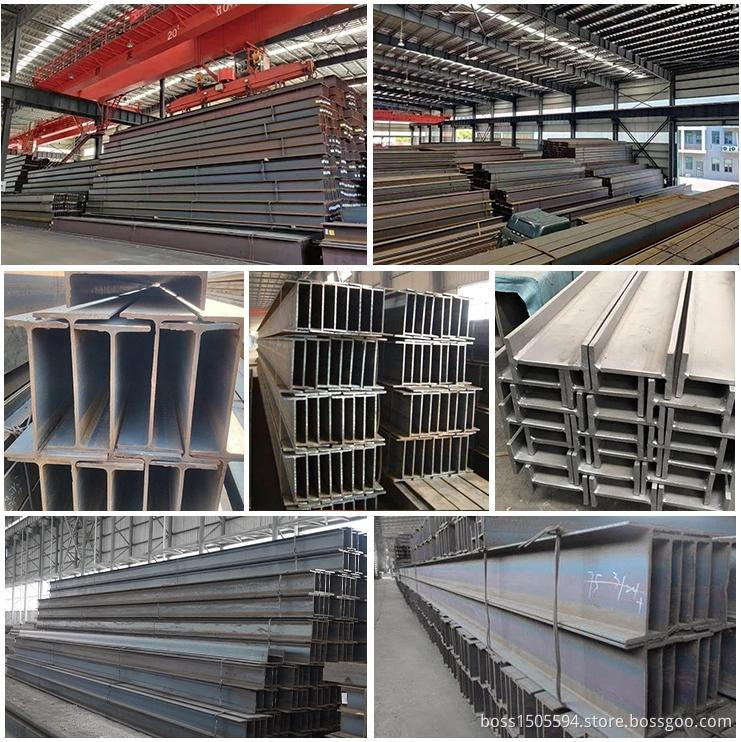

Product details

H-beam section is a type of economic construction steel, it's shape is of economic and reasonable design.

H-beam size always shows as Web Height*Flange Width*Web Thickness*Flange Thickness; H beam has the following good point.

· Good mechanics performance.

· Rolling section on each extension point is relatively uniform.

· Light weight, saving metal by about the 30-40% of the whole structure.

· Combined into components, can save welding, riveting work of 25%.

· Small internal stress.

Since it's good mechanical property, it be widely used for big building(such as factory, high building etc...as well as bridge, vessel, lifting transportation machinery, basic structure bracket, basic pile and so on.

H-beam

Product Name	Hot Rolled H Beam / H Shaped Steel / H Channel Steel / H Section Steel
Standard	GB/T 11263, EN 10034, EN 10025, JIS G3101, ASTM A36, ASTM A572, ASTM A992
Shape	H Channel
Technique	Hot Rolled/ Welded
Materials	Q235B, Q345B, S235JR, S235J0, C, S355JR, S355J0, S355J2, S355NL, SS400, ASTM A36, A572, A992, G300, G350 etc.
Standard Size Type	HW, HM, HN; HEA120-HEA450, HEB120-HEB400, HEM100-HEM450
Web Height	100--900mm, or as required
Flange Width	50-400mm, or as required
Web Thickness	5-30mm, or as required
Flange Thickness	5-40mm, or as required
Length	1m-12m, or other lengths required
Surface Treatment	Hot Dip Galvanized, Painting or Black.
Custom services	Cutting, Punching, Drilling, Bending, Welding
Packing	By bundles with steel strips or as customer request
Delivery Time	15 days after receive advance payment or L/C
Application	Mechanical&manufacture, Steel structure, Shipbuilding, Bridging, Automobile chassis.

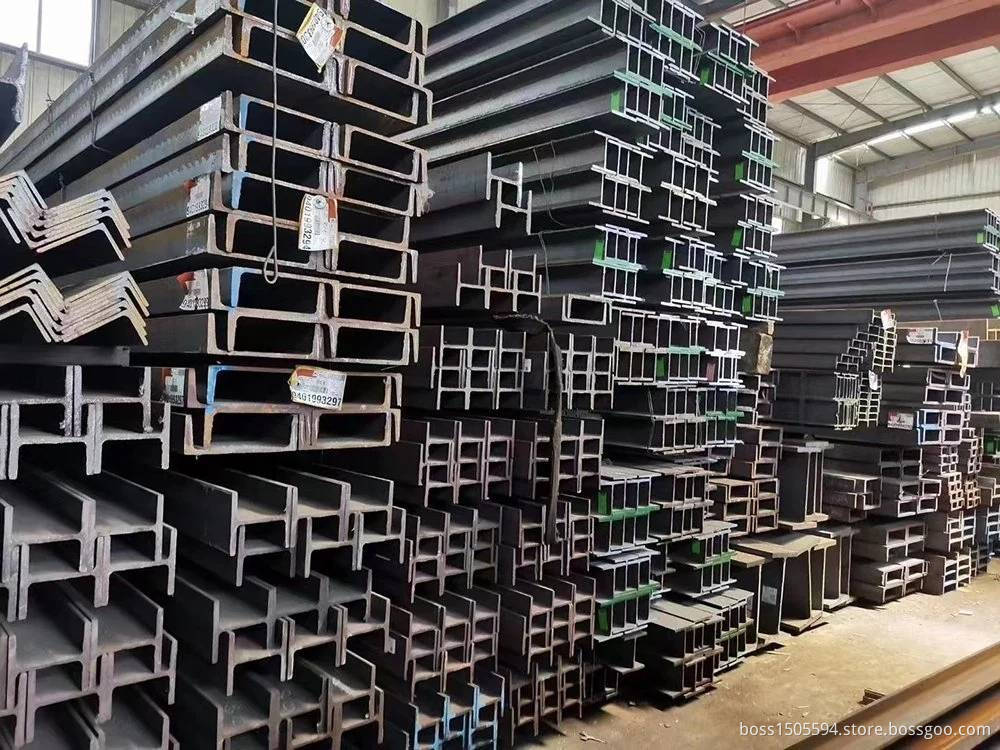

H-beam H-beam Steel

Grade	Chemical Composition (%)					Mechanical Properties
Grade	C≤	Si≤	Mn≤	P≤	S≤	Tensile Strength (Mpa)	Yield Stress (Mpa)	Elongation (%)
Q235B/S235JR	0.20	0.28	0.7	0.025	0.025	380-450	270-300	28
S275JR	0.21	0.50	1.5	0.035	0.035	430-580	≥270	14
Q345B	0.20	0.50	1.6	0.035	0.025	550-600	380-450	25
Q355B/S355JR	0.24	0.55	1.6	0.035	0.025	550-630	380-450	21

European Standard Size:

Type	Depth of section (mm)	Width of section (mm)	Web Thickness (mm)	Flange Thickness (mm)	Mass per metre (Kg/m)
HEA120	114	120	5	8	20.4
HEA140	133	140	5.5	8.5	25.3
HEA160	152	160	6	9	31.2
HEA180	171	180	6	9.5	36.4
HEA200	190	200	6.5	10	43.4
HEA220	210	220	7	11	51.8
HEA240	224	240	6.5	9	48.6
HEA260	250	260	7.5	12.5	69.9
HEA280	270	280	8	13	78.3
HEA300	290	300	8.5	14	90.5
HEA320	310	300	9	15.5	100
HEA340	330	300	9.5	16.5	107.6
HEA360	350	300	10	17.5	112
HEA400	390	300	11	19	125
HEA450	440	300	11.5	21	140
HEB120	120	120	6.5	11	27.4
HEB140	140	140	7	12	34.5
HEB160	160	160	8	13	43.7
HEB180	180	180	8.5	14	52.5
HEB200	200	200	9	15	62.8
HEB220	220	220	9.5	16	73.3
HEB240	240	240	10	17	85.3
HEB260	260	260	10	17.5	95.3
HEB280	280	280	10.5	18	105.6
HEB300	300	300	11	19	119.9
HEB320	320	300	11.5	20.5	130.2
HEB340	340	300	12	21.5	134
HEB360	360	300	12.5	22.5	142
HEB400	400	300	13.5	24	155
HEM100	120	106	12	20	42.8
HEM120	140	126	12.5	21	53.4
HEM140	160	146	13	22	64.8
HEM160	180	166	14	23	78.1
HEM180	200	186	14.5	24	91.1
HEM200	220	206	15	25	105.6
HEM220	240	226	15.5	26	119.9
HEM240	270	248	18	23	160.9
HEM260	290	268	18	32.5	176.3
HEM280	310	288	18.5	33	193.7
HEM300	340	310	21	39	244
HEM320	359	309	21	40	251.1
HEM340	377	309	21	40	248
HEM360	395	308	21	40	250
HEM400	432	307	21	40	256
HEM450	478	307	12	40	263

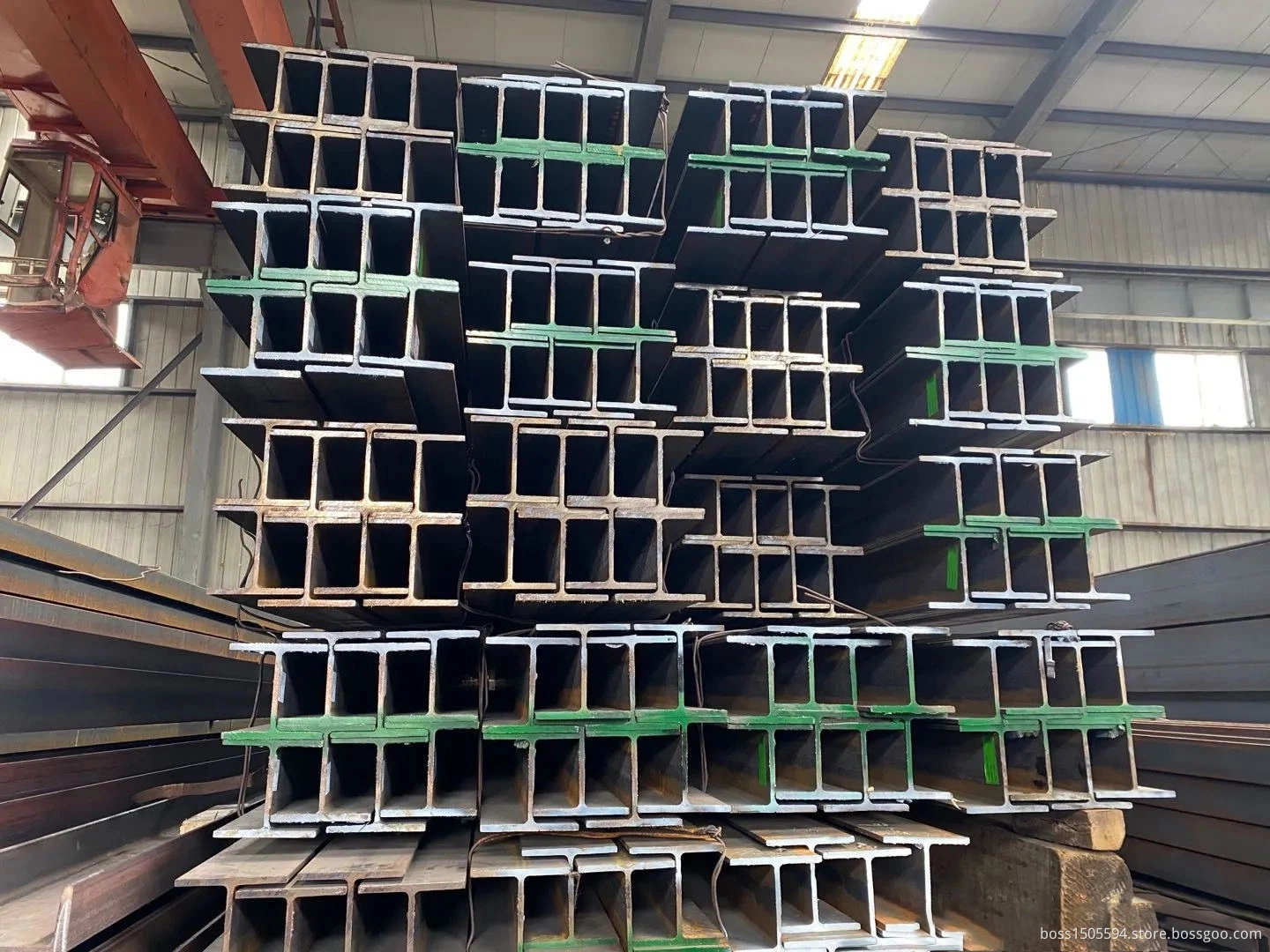

H-beam

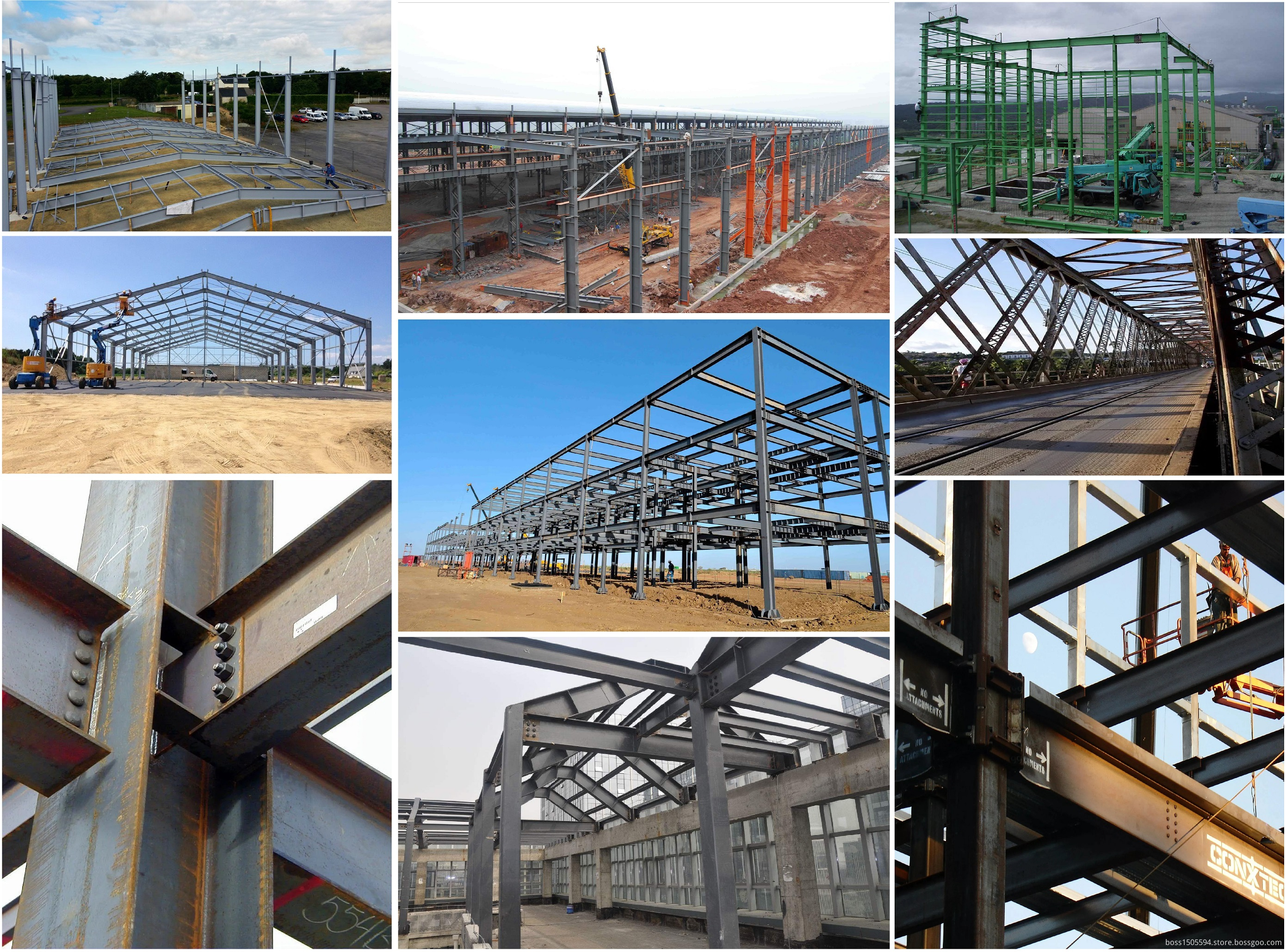

Application Scope

H-beam is mainly used for industrial and civil structure of the beam, column components.

Steel structure bearing structure of industrial structure

Underground engineering steel piles and support structure

Petrochemical and power and other industrial equipment structure

Large span steel bridge components

Ship, machinery manufacturing frame structure

Train, car, tractor girder support

Port conveyor belt, high-speed baffle bracket

H-beam

Large Span Custom H beam steel structure warehouse buildings for sale is a new type of steel structure buildings. It is easy assembly, quick installation,long life,recycle using factors, the steel structure buildings is replacing the traditional concrete buildings or brick buildings.

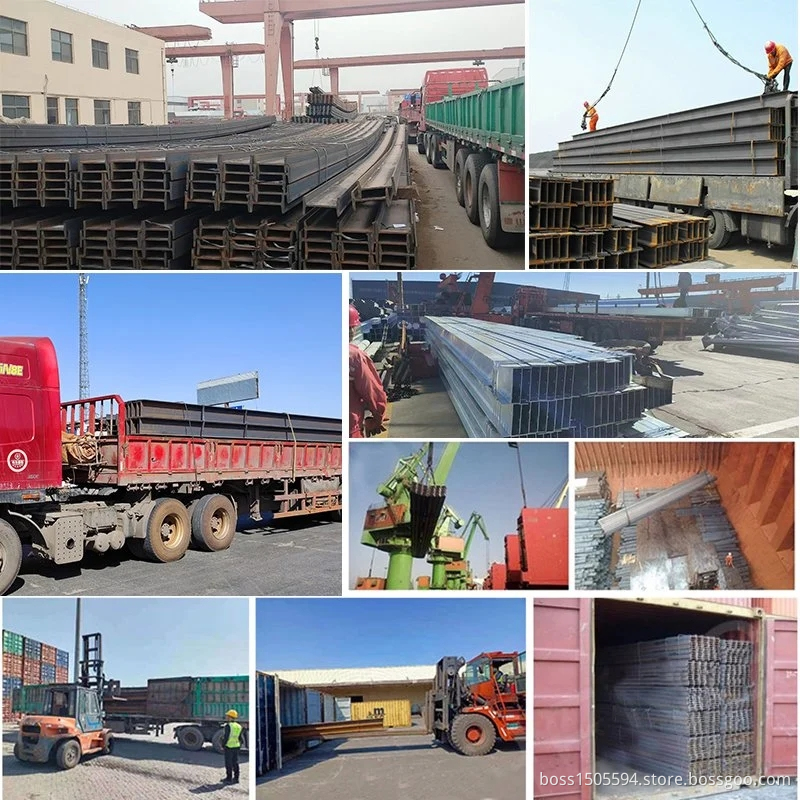

Packaging And Transportation

Export standard package,bundled or or as required.

The inner size of container is below:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Delivery Details 7-15 days, or according to the order quantity or upon negotiation.

H-beam Steel

If you have any question, please feel free to contact me by the email or telephone!
