Arch roofs Arcotechos span roll forming machine

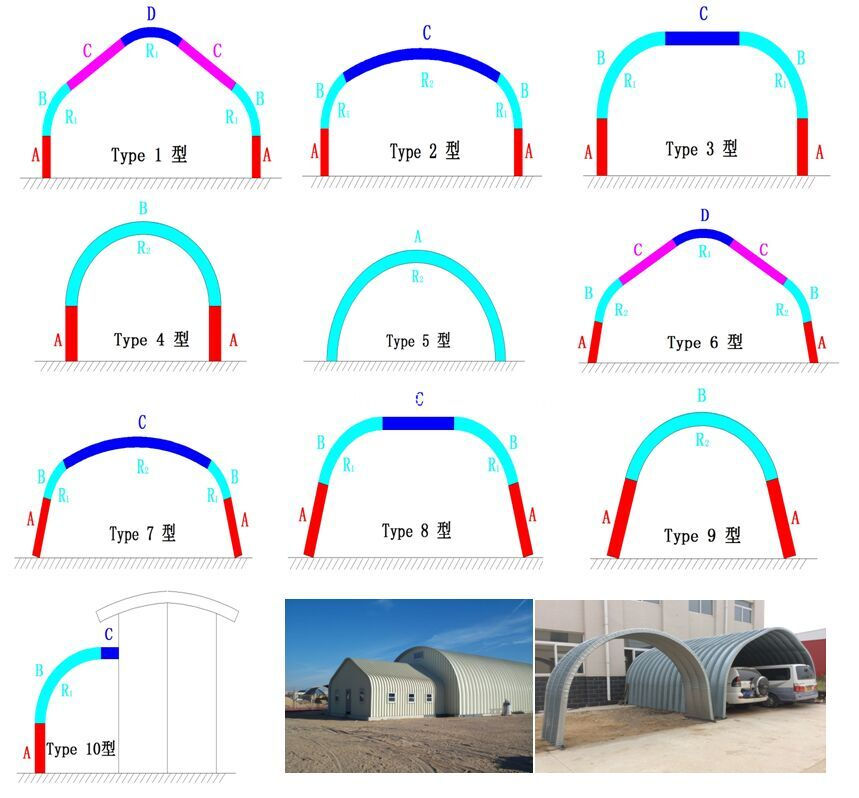

We can produce single profile(ABM) and ten profiles (UBM).

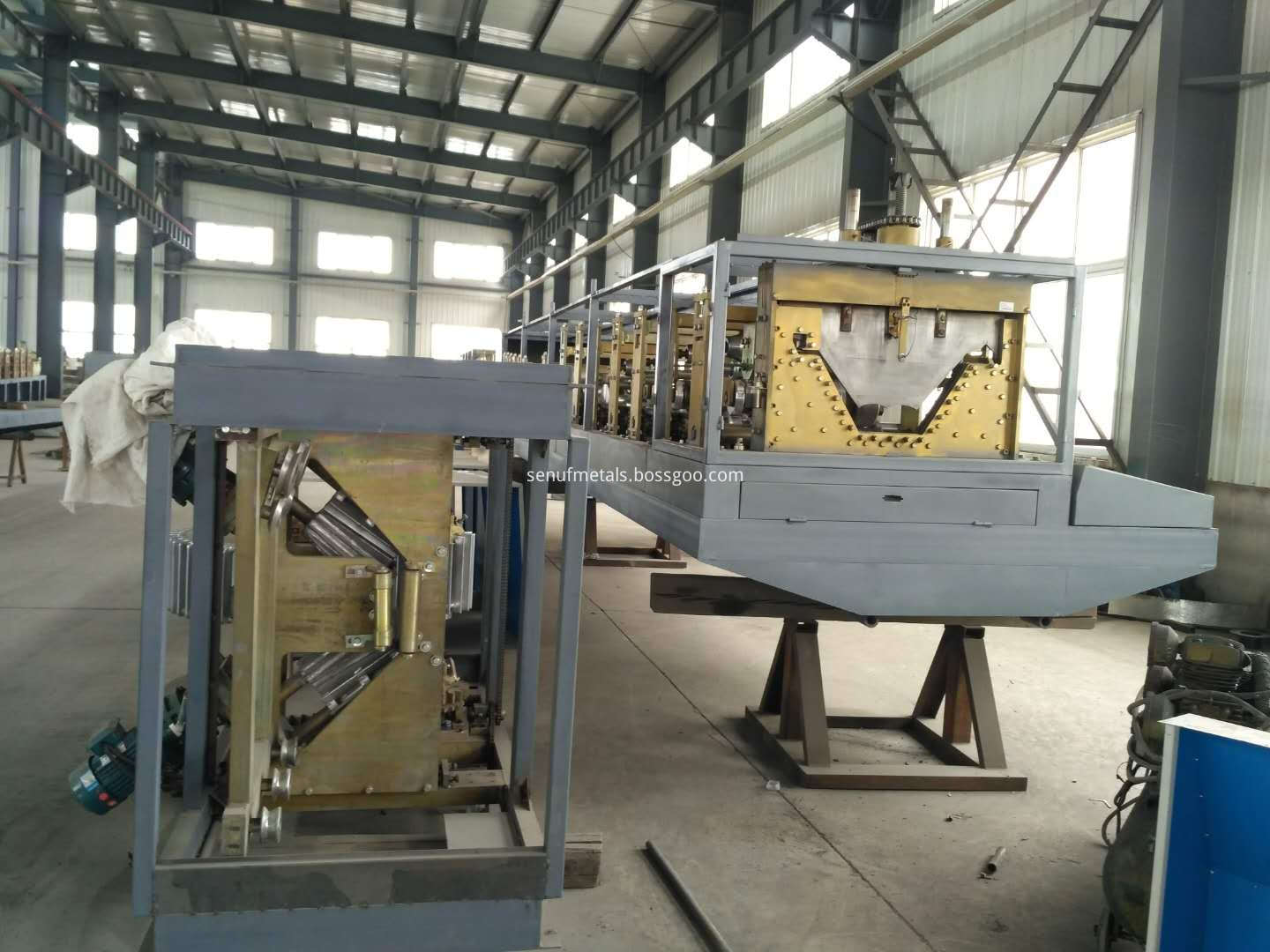

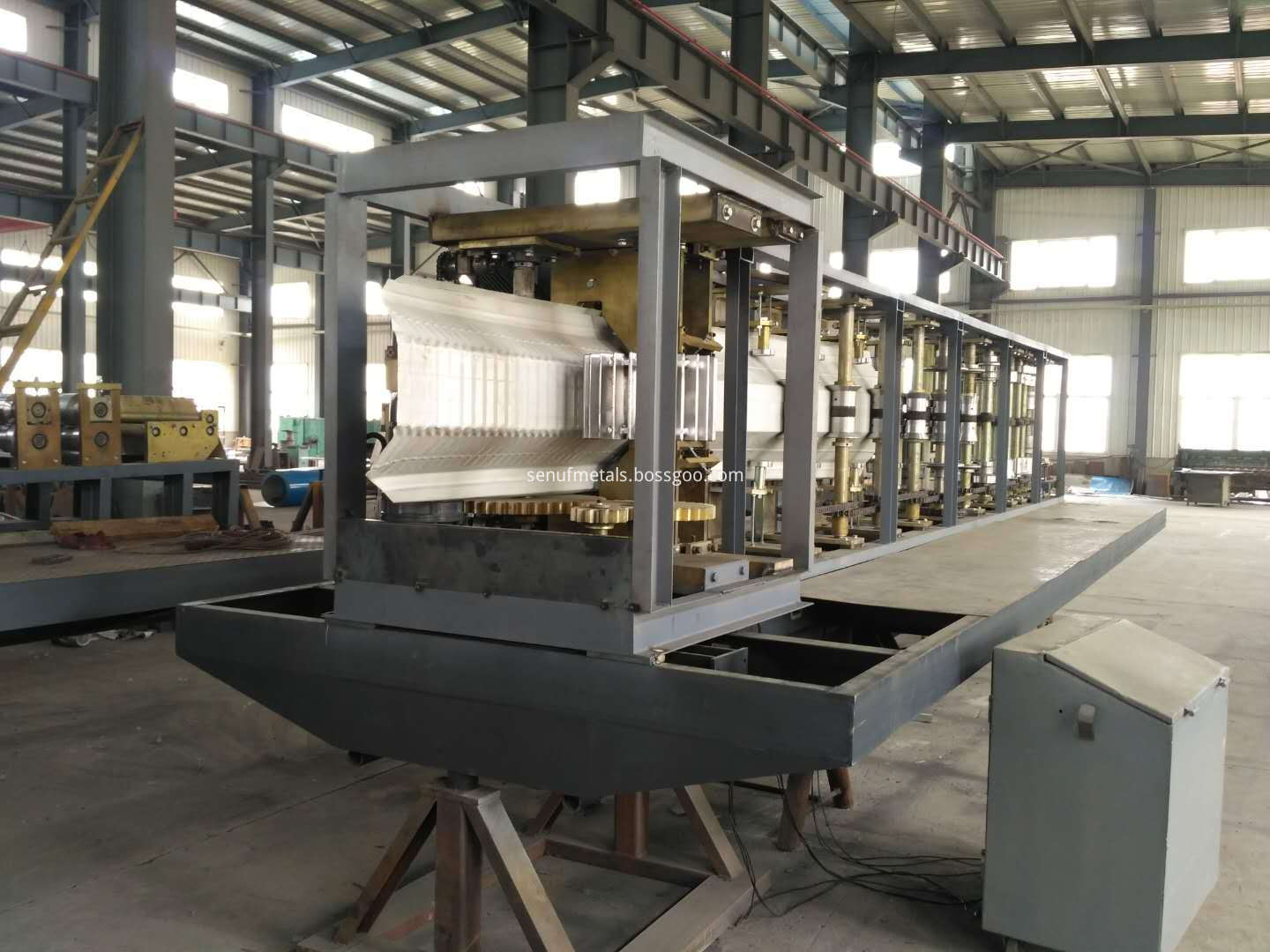

Long Large Span Roofing Sheet Production Line expansion of decoiler, face plate Forming unit, hydraulic die cutting device, curved panel forming unit, control system, Hydraulic system, run the straight and curved plate and all other accessories. All the parts Be installed in a mobile car. Therefore, it is suitable for field work.
Advantages of Long Span Roofing Sheet Production Line:
1. There is a brake system on our uncoiler, if the machine stops suddenly, the uncoiler can be stopped accordingly.
2. 14-steps to form, including the first step--Rubber shaft, it fixes steel sheet tightly from the beginning. Also there is one row Rubber Roller in the middle of each shaft, coordinating different thickness of steel sheets tightly when roll forming.
3. Long Span Roofing Sheet Machine includes 20 wider rollers than other supplier, which can make the appearance of finished sheet more beautiful and stronger.

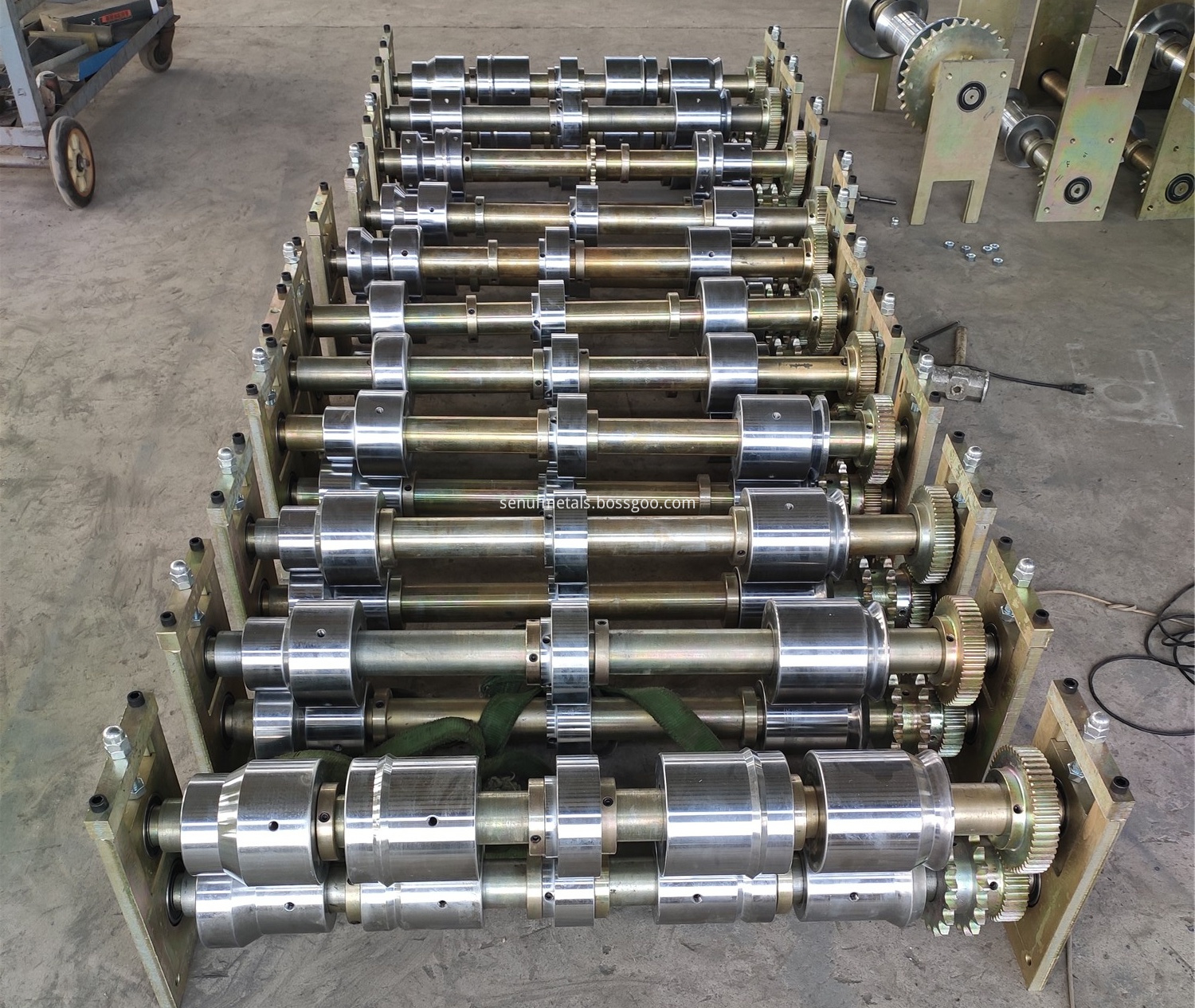

4. Long Span Roofing Sheet Machine`s rollers and axles are connected with a pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and axles more tighten and work for a long time without deformation.
5. Gear, Sprocket driving from superior workmanship.
6. Adopt automotive rear axle as the axle of our machine with size of 900-20 tires, can load more and has better impact resistance and damping effect.
7. 10mm thickness, smooth arch plate, produced by CNC machining centre.
8. Cutting material: Cr12 MoV- Best and sharpest cutting material
9. Deck of foundation: CHINA An Steel (it used to produce boat).
10. The thickness of side plate is 20mm.
11. There is one hand wheel with scale in the curving part, you can adjust the height of span as you need with it.
If you are interested in the product, contact 2bvideo.com for more information for more information
