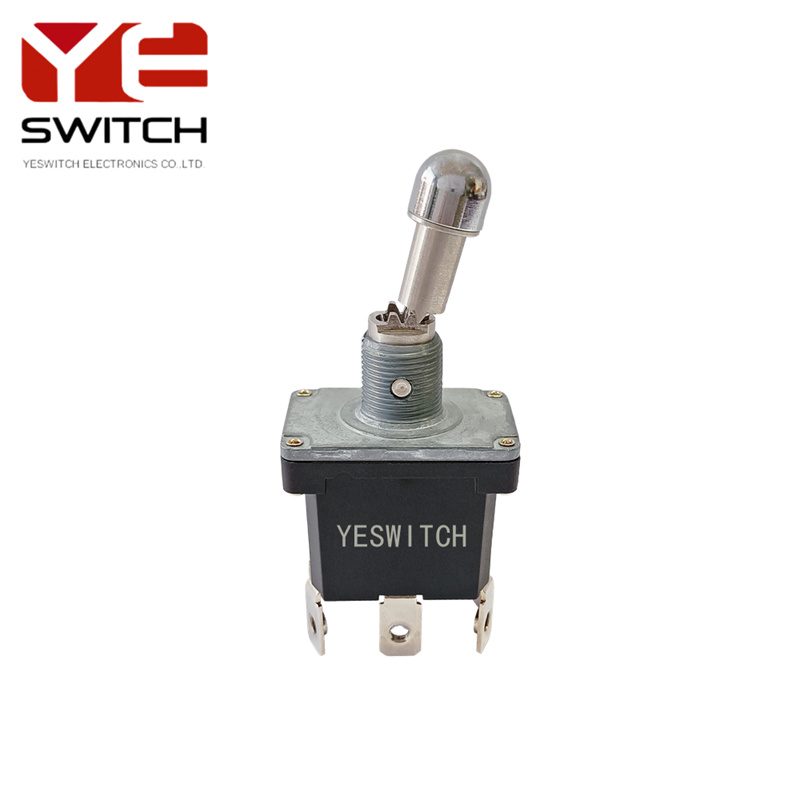

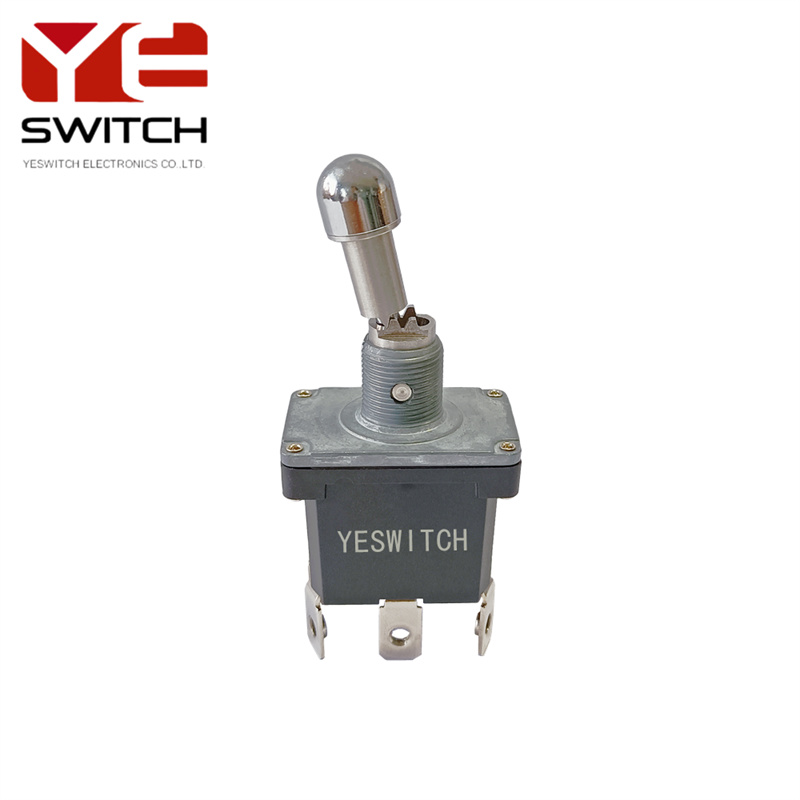

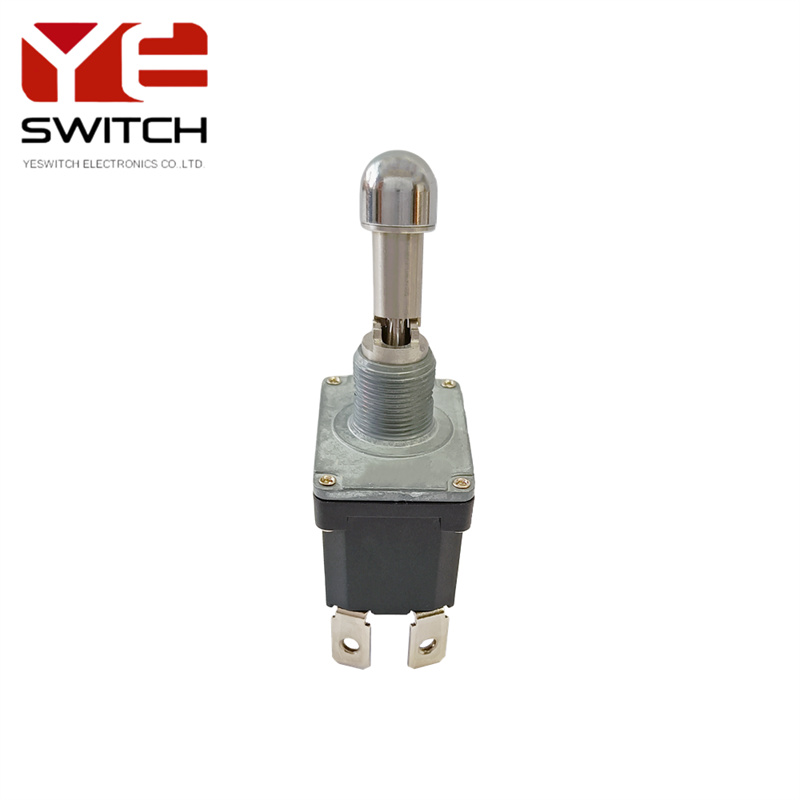

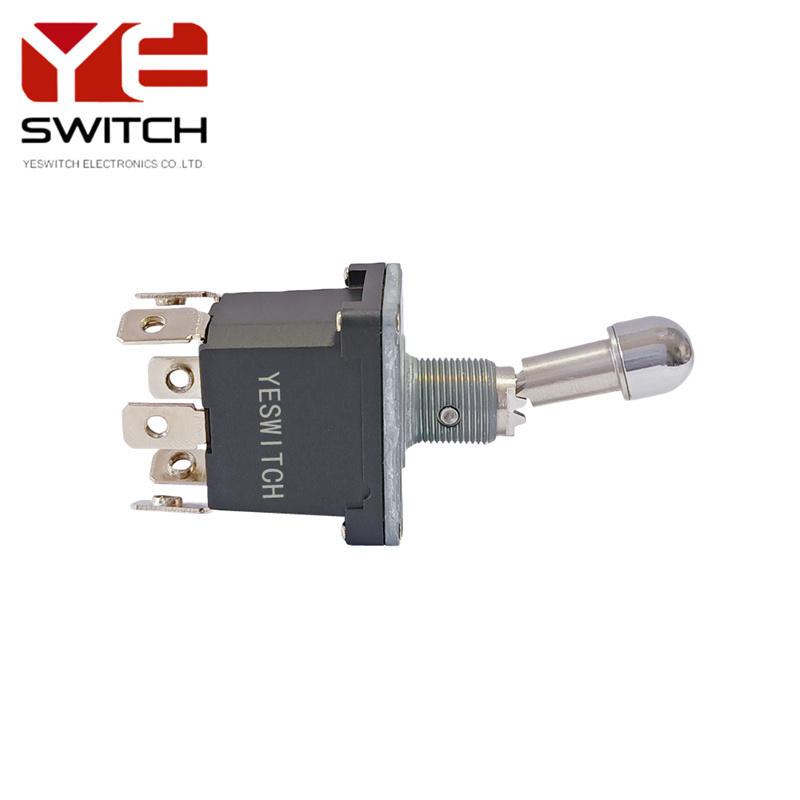

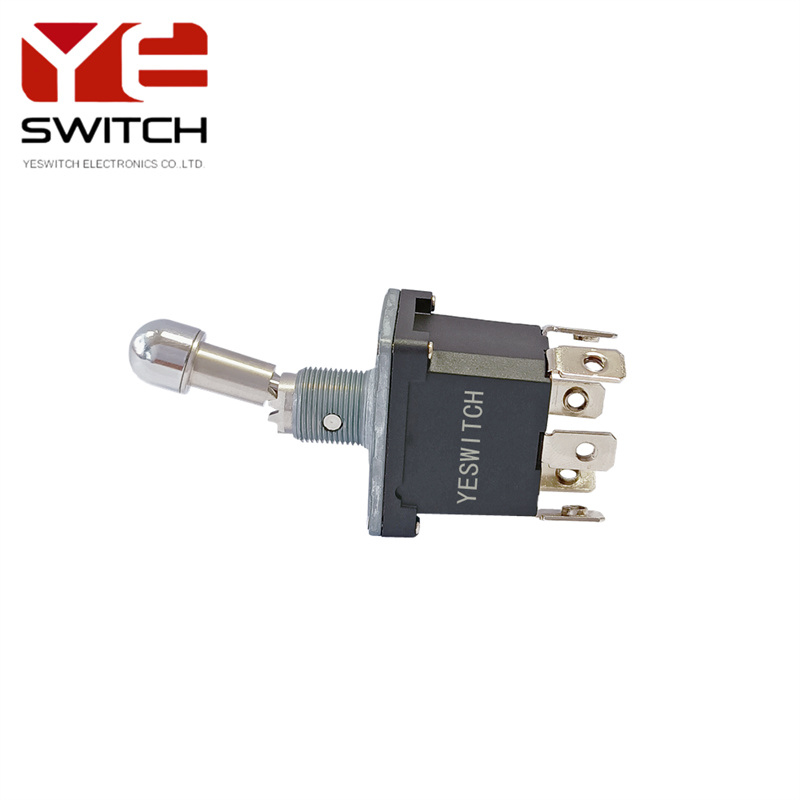

HT802 Series IP68 Lock Double Pole Toggle Switch For JLG/John Deere/Genie

Product Overview

Lock toggle switch: A toggle switch with a locking function, usually used in situations where stable control or misoperation prevention is required.

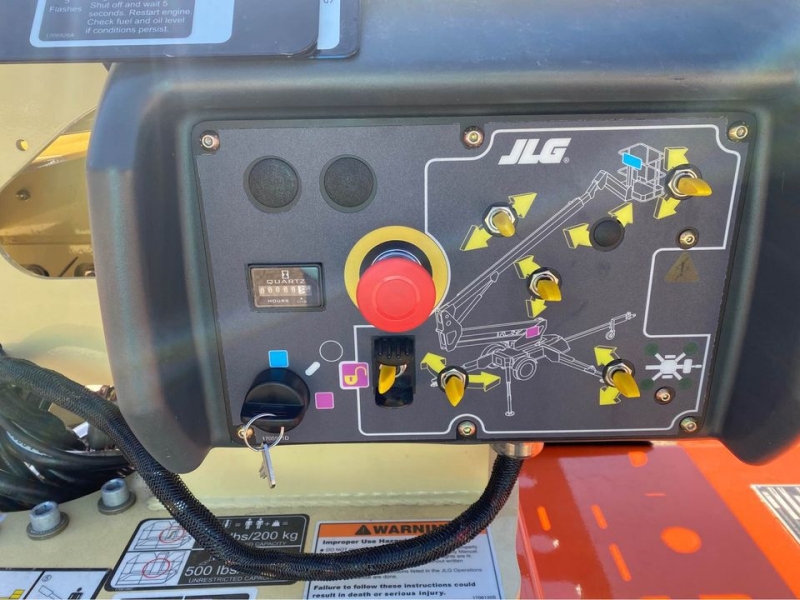

Aerial work vehicle high current toggle switch:toggle switches designed specifically for JLG/John Deere/Genie aerial work vehicles, with reliable electrical performance and mechanical life.

IP68 rating: The highest level of dust and water resistance standards, ensuring that the switch can still work normally in harsh environments.

Double pole ON-OFF-ON: The IP68 toggle switch has three positions, corresponding to two on states and one off state, suitable for situations where two-way control is required.

Screw terminal: A fixed method for connecting circuit components to power supply, with the function of quick connection and replacement of circuit boards.

Product Features

High protection level: Reaching IP68 level, excellent dust and water resistance, suitable for various harsh environments.

Stable and reliable: Made of high-quality materials and advanced processes to ensure the stability and reliability of the switch.

Easy operation: The lock design and clear identification make the operation easier and reduce the risk of misoperation.

Flexible application: Suitable for a variety of application scenarios such as construction machinery vehicles and agricultural equipment to meet different needs.

Application scenarios

Engineering machinery vehicles: such as excavators, loaders, cranes, etc., used to control key functions such as start, stop, and steering of equipment.

Agricultural equipment: such as tractors, harvesters, seeders, etc., used to control key functions such as start, stop, and speed regulation of equipment.

Product advantages

Waterproof and dustproof: IP68 level protection performance ensures that the switch can still work normally in harsh environments such as humidity and dust.

Corrosion resistance: Made of high-quality materials, waterproof toggle switch has good corrosion resistance and extends service life.

Easy installation: The screw terminal design makes installation and replacement easier and faster.

Easy maintenance: The structural design is reasonable, easy to maintain and repair, and reduces maintenance costs.

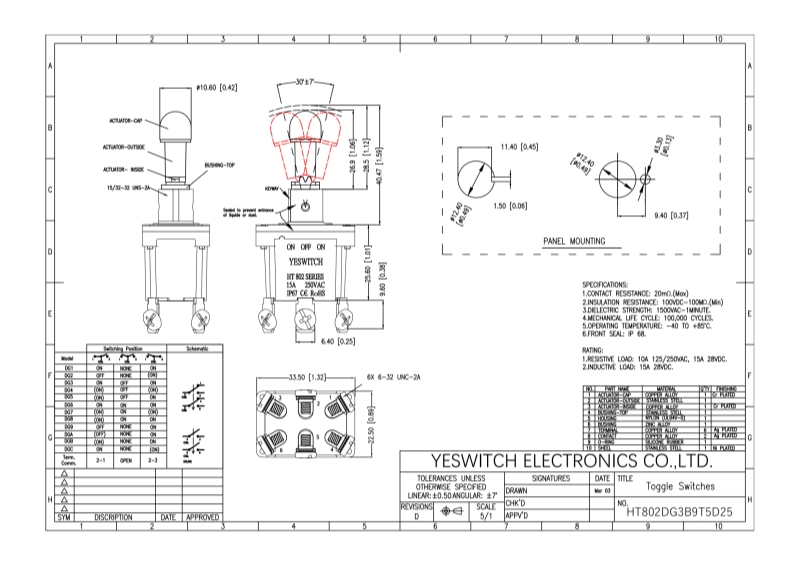

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:10A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR: COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
