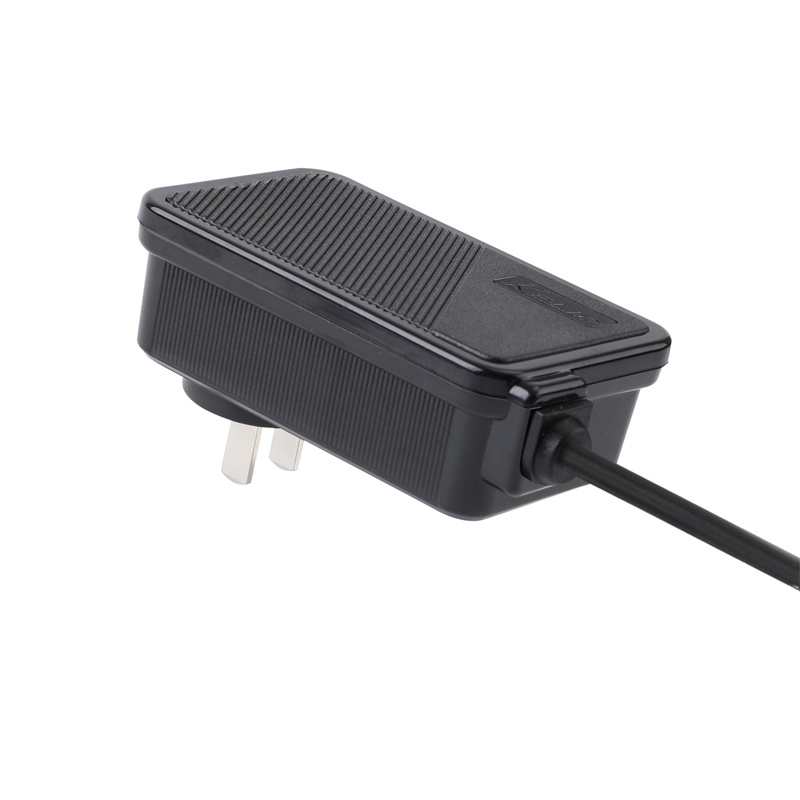

| Chinese standard plug |

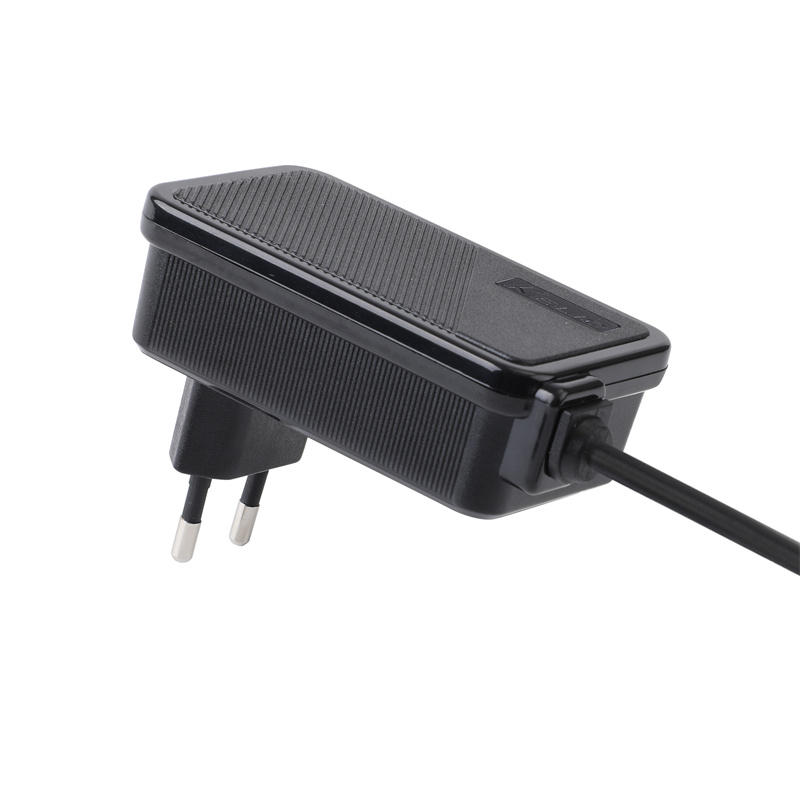

Europe standard plug
|
 |
 |

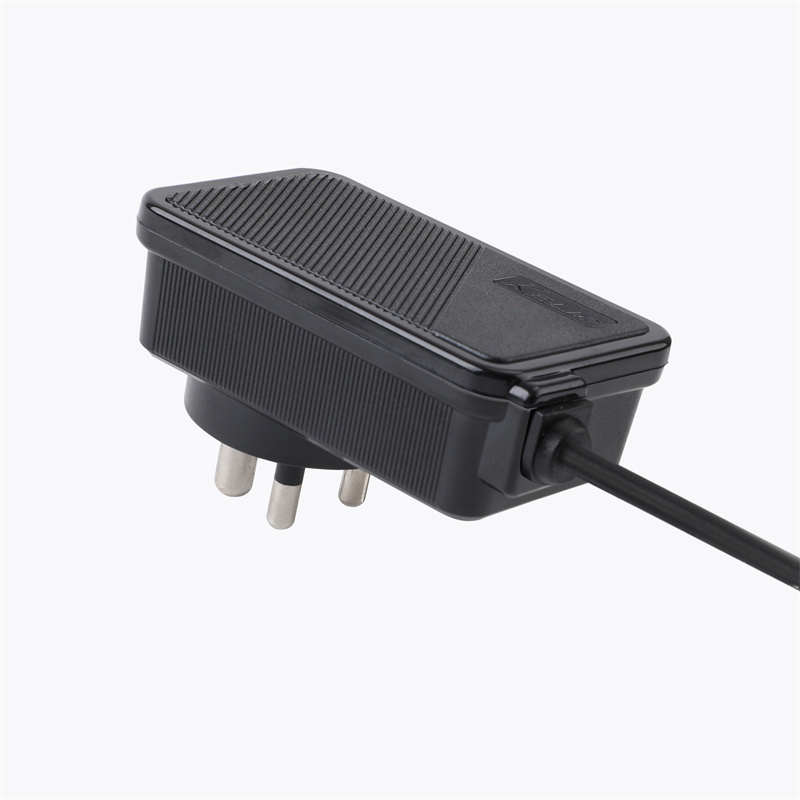

| South Africa Standard Plug |

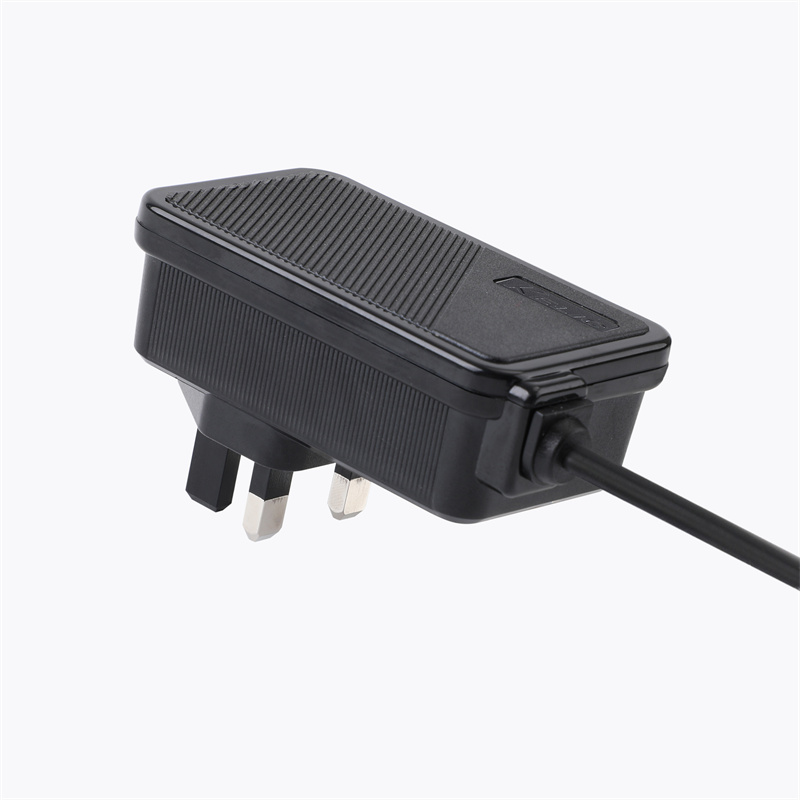

UK Standard Plug
|
Product Advantages:
Globally Compatible Input Range: With an input voltage range of 100V to 240V and a frequency of 50-60Hz, the wall mount power supply is compatible with virtually any electrical system worldwide. Whether in North America, Europe, Asia or any other region, the power adapter easily adapts to local grid standards, ensuring that equipment always receives a stable power supply. Users don't need to worry about voltage mismatches; the ac wall adapter automatically adapts to voltage fluctuations and maintains an efficient, safe power supply.
Multiple Protection and High Performance: In order to ensure the safety and long-term stable operation of the equipment, the wall power adapter has built-in multiple protection mechanisms, including over-current protection, over-voltage protection, short-circuit protection and overheating protection. Whether in harsh environments or under sustained high workloads, the ac dc power adaptor provides reliable safety against equipment damage due to current fluctuations or malfunctions.
| Test Item | 9V4A | 12V3A | 15V2.4A | 18V2A | 24V1.5A | 361A |
| Input(VAC) | 100-240V / 50-60 Hz | |||||
|
Input current
|
≤1.0A | |||||
| PF(%) | ≥0.5 | |||||
| No-load power | ≤0.3W | |||||
| Efficiency(%) | ≥75% | ≥81% | ≥83% | ≥84% | ≥85% | ≥86% |
| Output(VDC) | 9±5%V | 12±5%V | 15±5%V | 18±5%V | 24±5%V | 36±5%V |
| Output Current | 0-4.0A | 0-3.0A | 0-2.4A | 0-2.0A | 0-1.5A | 0-1A |
| Output(max) | 36W | 36W | 36W | 36W | 36W | 36W |
|
Ripple wave
|
≤100mV | ≤120mV | ≤150mV | ≤180mV | ≤240mV | ≤360mV |
