Oil pipe head four-way

3 month ago

2 0

Jianhu Fulida Machinery Manufacturing Co. , Ltd.

 4 month year

Product details

The tubing head spool is a key device used to connect the top casing head and the Christmas tree in the field of oil production.

Structural composition
Main body: usually a cross-shaped spool fitting with four connection ports, namely the top, bottom and two side ports.

Flange connection: The top and bottom are flange structures, which are tightly connected to the casing head and the Christmas tree by bolts to ensure the sealing and connection strength of the entire wellhead device.

Side port design: The two side ports can be used to connect various auxiliary pipelines, such as water injection pipelines, well washing pipelines, etc., to achieve water injection into the well, well washing and other operational functions.

Product Parameters:

Product Name:	Tubing head
Specification model:	7 1/16
Implementation standard:	API 6A
Rated working pressure:	10000PSi
Product specification level:	PSL1~PSL3G
Product performance level:	PR1~PR2
Temperature level:	PU, LU
Material level:	AA~FF
Product color:	Red

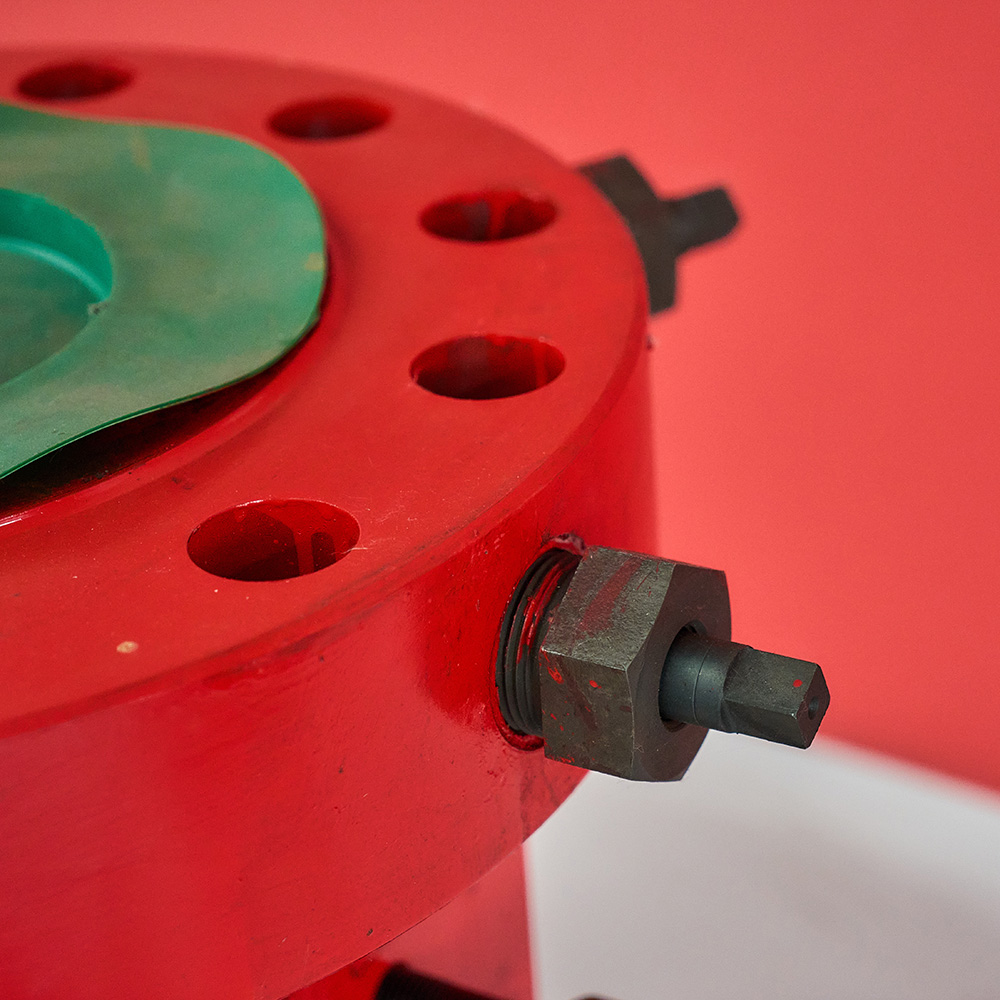

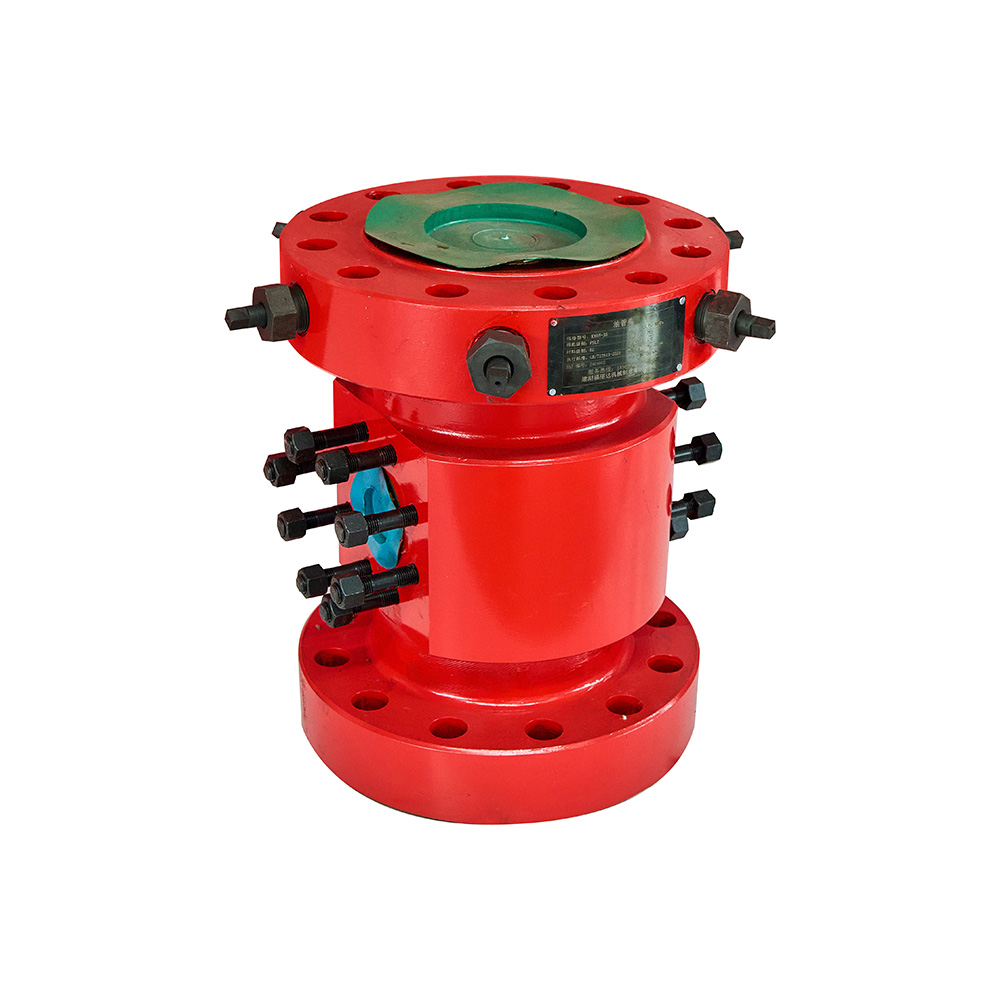

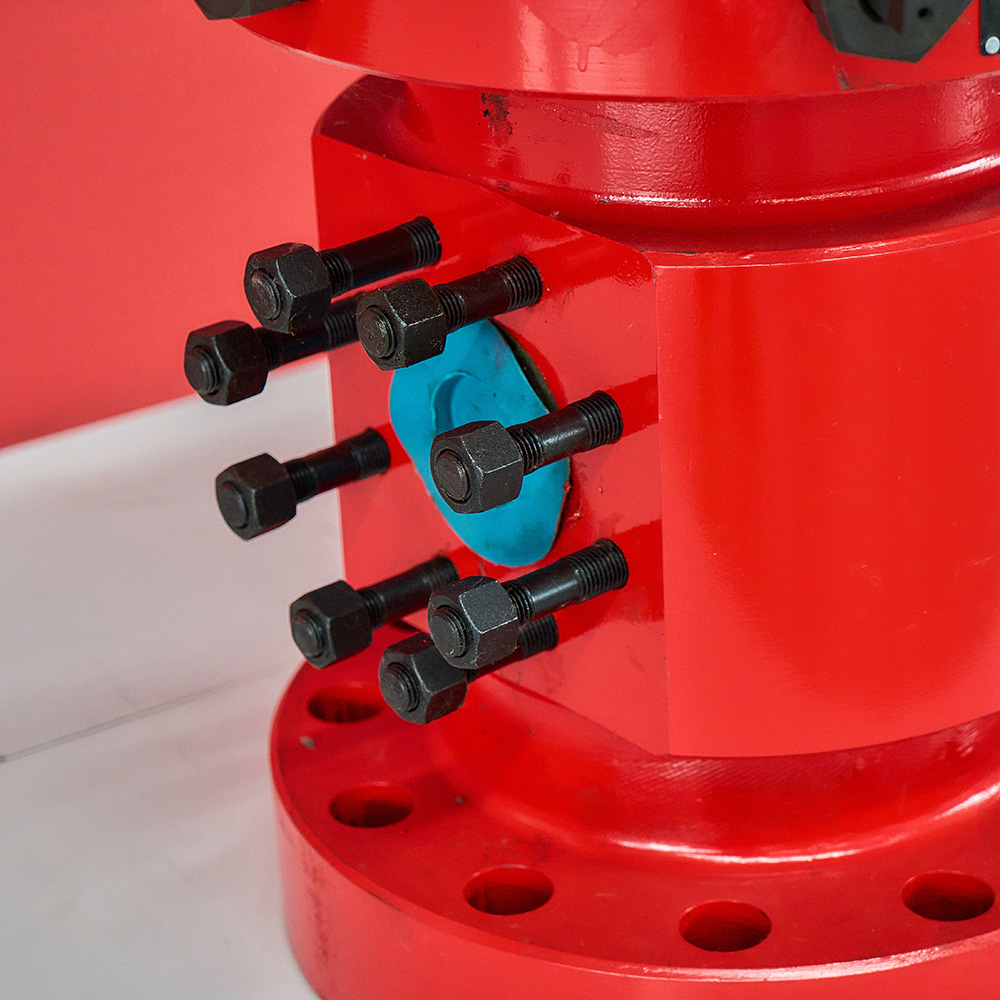

Detail Pictures:

Main function
Provide a connection hub: Provide a centralized connection hub for tubing, casing, Christmas tree and various auxiliary pipelines, so that the various components of the wellhead device can work together effectively.

Realize multiple operating functions: Through the side ports, water injection pipelines, well washing pipelines, etc., various downhole operations such as water injection, well washing, acidizing, and fracturing can be carried out to meet the process requirements of different oil well production stages.

As a petroleum machinery manufacturer, our company also produces Blowout Preventer, Manifold, Cellar Connection, Valve, Pipe Fitting and Control Apparatus, etc. If you need, please contact us.
