The SR series product is mainly installed in forklift trucks and aerial trucks and other engineering vehicles as a mechanical arm apparatus for the installation of glass,tile and marble, it has an independent hydraulic control system and circuit vacuum control system and can grip,flip,rotate,twist,expansion and contraction adjustment by wireless remote control,it is very flexible .It can be pearled with the engineering vehicle to achieve higher floor glass installation.No fear of harsh engineering site environment.
Glass Installation Robot, Vacuum Tube Lifter, Tube Vacuum Lifter, Handling lifter,Stacking lifter, Material Handling lifter, Stacking equipment, Handling equipment, Stacking tube lifter, Handling tube lifter，glass installation equipment

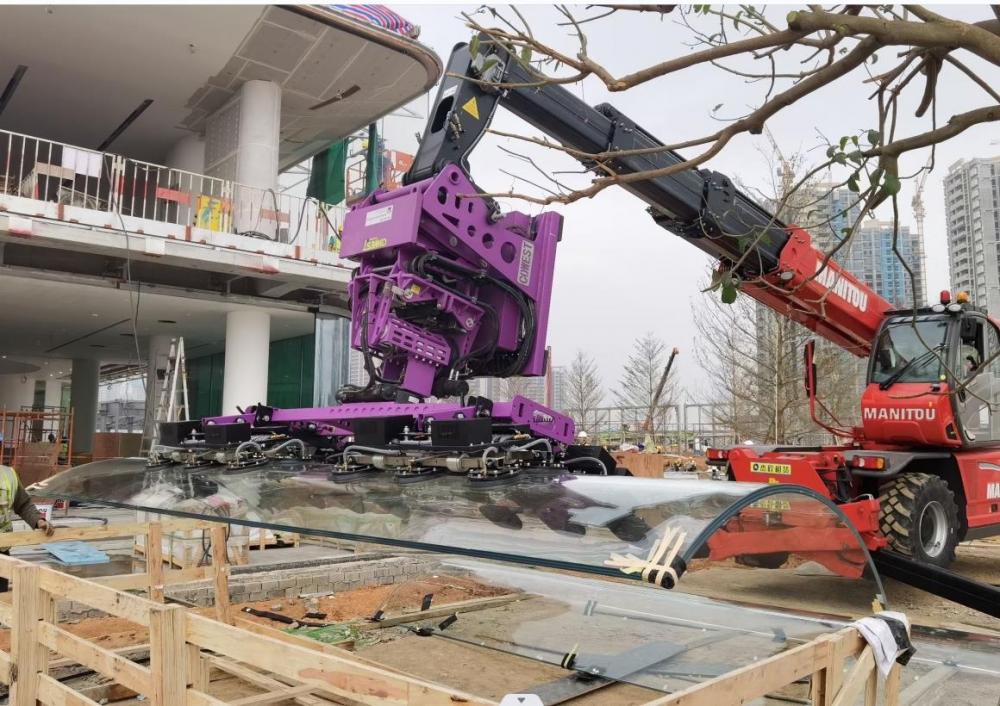

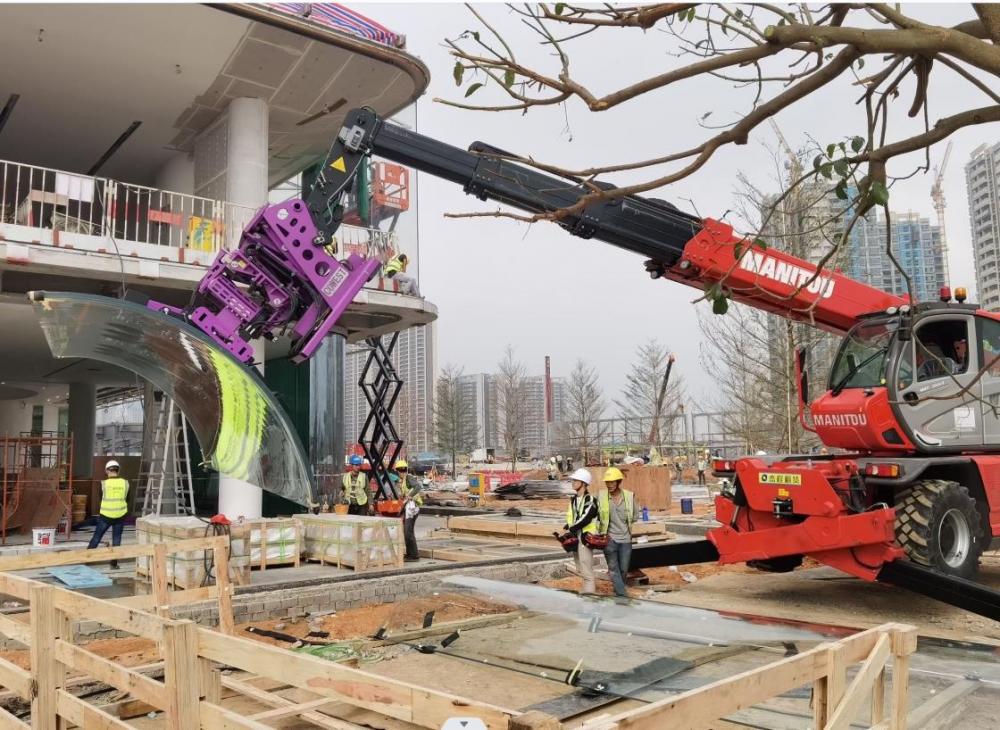

Cowest vacuum glass Robot cooperate with Manitou Forklift Truck , lifing the Curved glass from the packing case then tile and rotation the Cowest Vacuum lifter Robot head adjust the suitable position then installation the glass onto Building.
|
Model Type |
SR 800 |
SR 1200 |
SR 1500 |
|
Load Capacity |
800kg |
1200kg |
1500kg |
|
Rated Power |
1.5kw |
1.5kw |
2.5kw |
|
Rated Voltage |
DC12V |
DC12V |
DC24V |
|
Hydraulic operating pressure |
16Mpa |
21Mpa |
21Mpa |
|
Vacuum Indication |
Digital or Pressure gauge |
||
|
Suction Cups |
6pcs Dia.400mm |
8pcs Dia.400mm |
4pcs 450*850mm |
|
Vacuum Indication |
Digital or Pressure gauge |
||
|
Vacuum System |
Dual pumps and Dual systems |
||
|
Height Forward Extension |
500mm |
300mm |
250mm |
|
Wireless Remote control |
1. Pad frame vertical side shift up/down 100mm 2. Pad frame lateral side shift left/right 75mm 3. Pad frame flip angel 135° 4. Pad frame turn left/right angel 90° 5. Pad frame rotation 360°
|
||
|
N.W/G.W |
|
|
|
|
Packing Size |
|
|
|
|
Usages |
Mainly combination with engineering vehicles used for handling,moving and installing glass,marble,tile etc. |
||
About us
Guangzhou Cowest Machinery Equipment Ltd was established in 2008,which is a professional Vacuum handling equipment research and development, production, sales and service in one manufacturing enterprise. Our products are used in many industries such as Construction, Glass manufacturing, Chemical industry, Pharmaceutical industry, and food industry, and are exported to Europe, America, the Middle East, Southeast Asia and other regions around the world.
We have own R&D team and core product technology, and have obtained more than 30 product patents, including Movable Vacuum tube lifter with Fold Crane, Glass installation Robot, Stone Road installation manipulator ect. These products are one of the best in the world, and they are used in many famous enterprises and projects: Dunlop Tires, Nescafe, Brother Printer, IBM, Lipan Paint, Kohler and other products of the production line handling palletizing. Our products also participated in many famous large-scale construction projects for Glass installation .such as the glass installation projects of Beijing Library, Guangzhou Tower,Hong Kong Pacific Place,the United States Metropolis and Beijing Airport ,etc.In addition, we also cooperate with many famous construction machinery giant enterprises: Manitou, Zoomlion, Zhejiang Dingli, Sany Machinery, XCMG Group, etc. to provide technical support and accessory products.
Our company has always adhered to the philosophy of "only the best, the best in the industry", and has learned on a wide range of global technical expertise to create rock-solid product quality and safer, more personalised products that customers can buy with confidence and comfortable to use, making handling problems easy!
|
Packaging Detail: |
by Flexible Package, Seaworthy Package |
|
Delivery Time: |
45 days |
