G353A049 ASCO Type Remote Pilot Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse valves:
1. Threaded Type
2. Compression Fitting Type
3. Full Immersed Type
4. Straight Through Type
5. Flanged Type

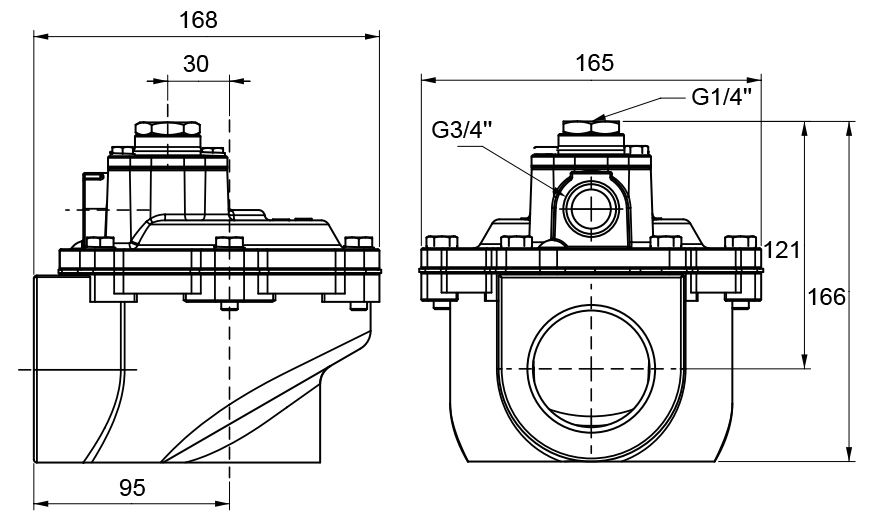

Main Dimension of 2 1/2'' G353A049 Pulse Valve:
Technical Data of Pulse Valve:
|
Port Size
|
Remote Pilot Connection
|
Orifice Size
(mm)
|
Kv
|
Operating Pressure Differential (bar)
|
Model Number
|
|
|
(m³/h)
|
(l/min)
|
|||||
|
threaded pipe connection
|
||||||
|
G3/4''
|
G1/8''
|
24
|
14
|
233
|
0.35 to 8.5
|
G353A041
|
|
G1''
|
G1/8''
|
27
|
17
|
283
|
0.35 to 8.5
|
G353A042
|
|
G1 1/2''
|
G1/4''
|
52
|
46
|
768
|
0.35 to 8.5
|
G353A045
(Single Stage)
|
|
G1 1/2''
|
G1/8''
|
50
|
46
|
768
|
0.35 to 8.5
|
G353A046
(Dual Stage) |
|
G2''
|
G1/4''
|
66
|
77
|
1290
|
0.35 to 8.5
|
G353A048
|
|
G2 1/2''
|
G1/4''
|
66
|
92
|
1540
|
0.35 to 8.5
|
G353A049
|

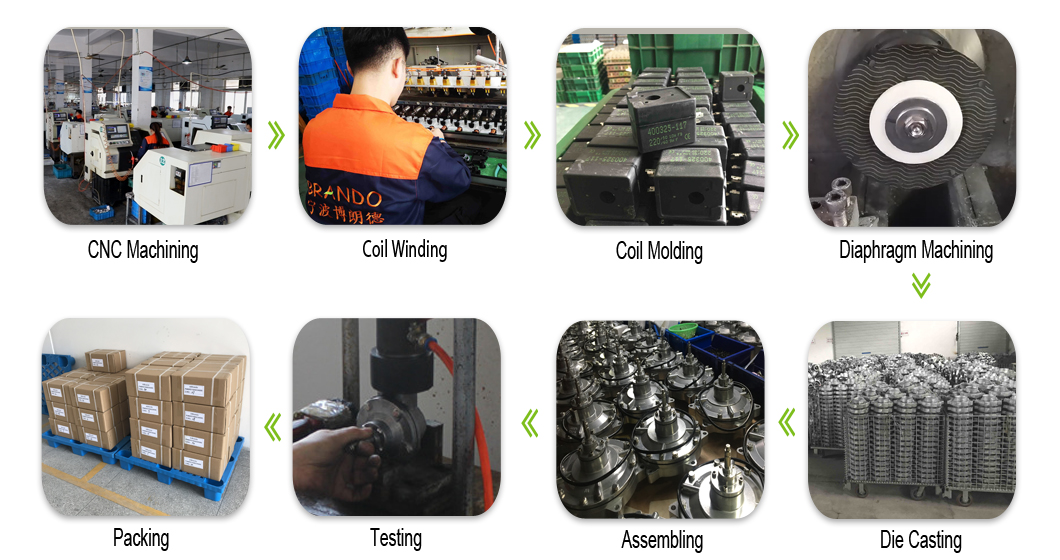

BRANDO Pulse Valve Production Picture:
Related Products:
 |
 |
 |
 |

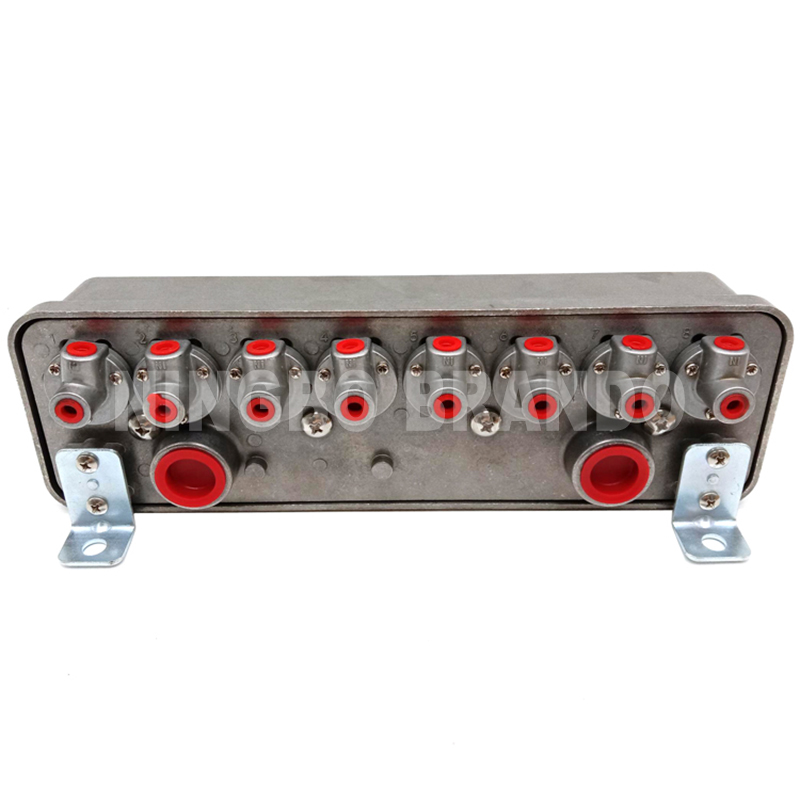

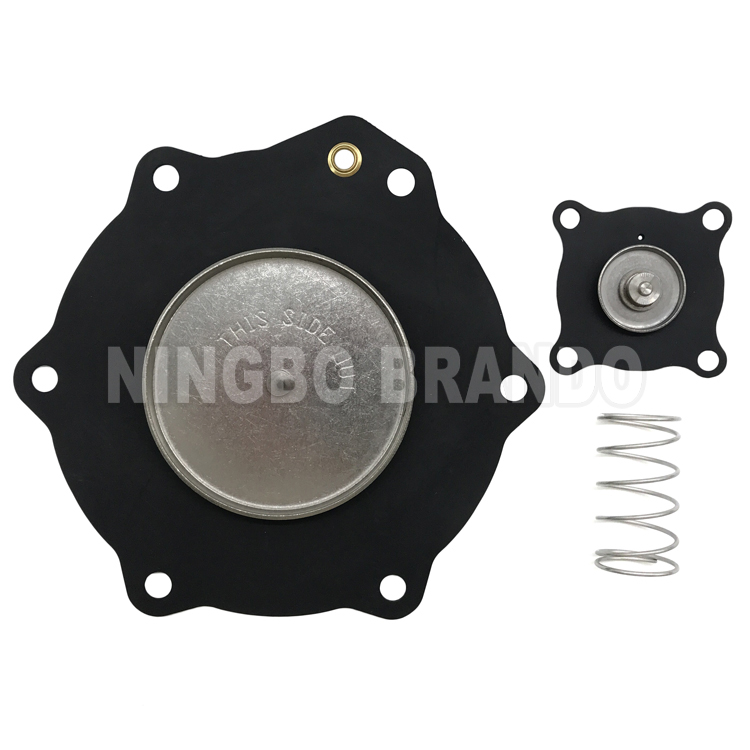

| Pneumatic Fitting | Diaphragm | Remote Pilot Enclosure | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
