DMF-T-40S BFEC Straight Through Pulse Jet Valve 1.5''
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type

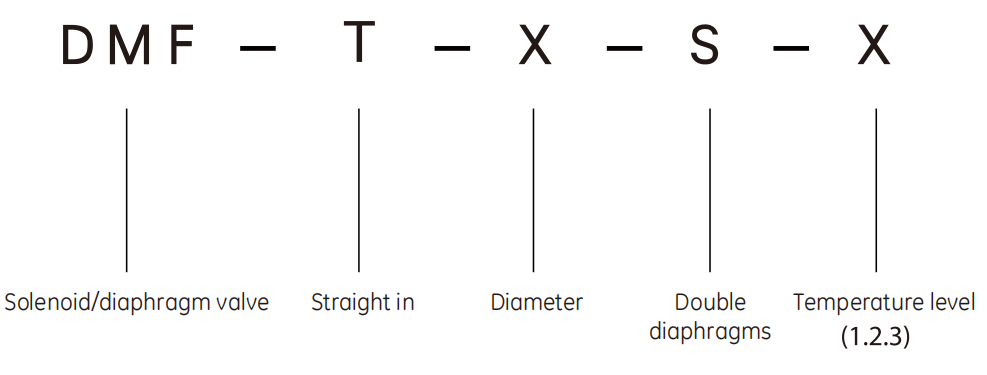

Ordering Code of T Series Straight Though Pulse Valve:

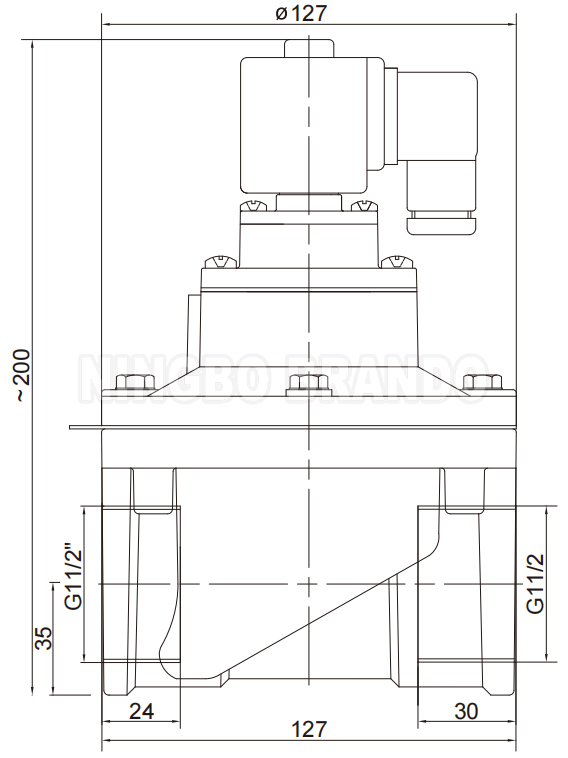

Dimension of DMF-T-40S Straight Though Pulse Valve:
Technical Data of T Series Straight Though Pulse Valve:
|
Integral Pilot
|
DMF-T-20
|
DMF-T-25S
|
DMF-T-40S
|
DMF-T-50S
|
DMF-T-62S
|
|
Remote Pilot
|
MF-T-20
|
MF-T-25S
|
MF-T-40S
|
MF-T-50S
|
MF-T-62S
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
|
Diaphragm Number
|
1
|
2
|
|||
|
Diaphragm Material
|
NBR, FKM
|
||||
|
Body Material
|
Aluminum Alloy
|
||||
|
Pressure Range
|
0.1 to 0.8 MPa
|
||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||||

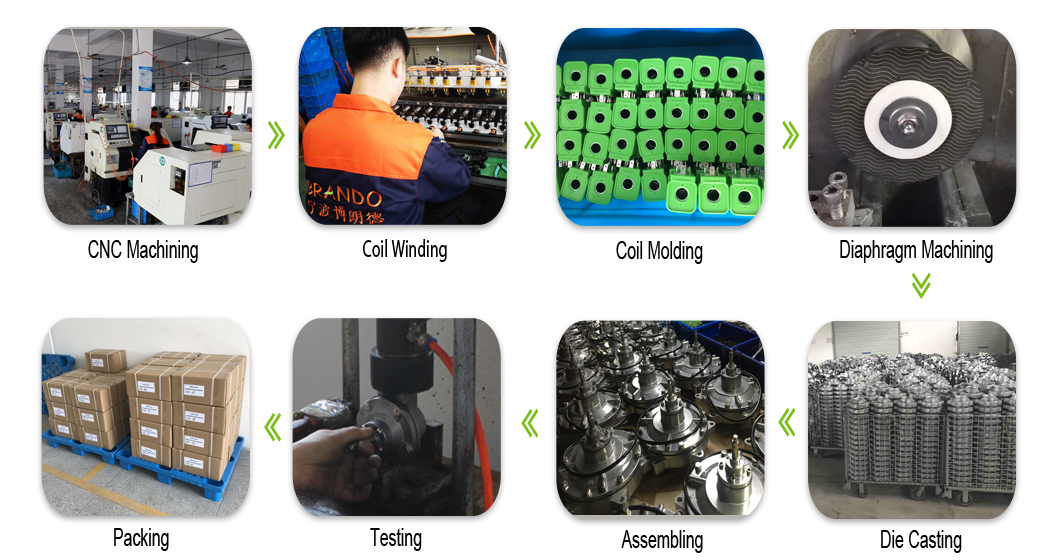

BRANDO Pulse Valve Production Picture:
Related Products:
 |
 |
 |
 |

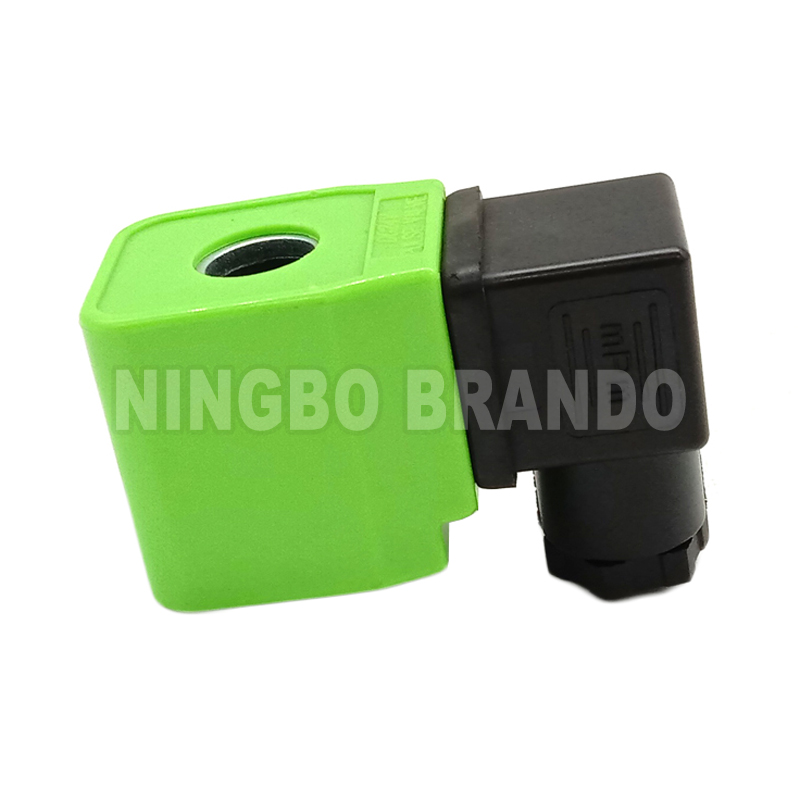

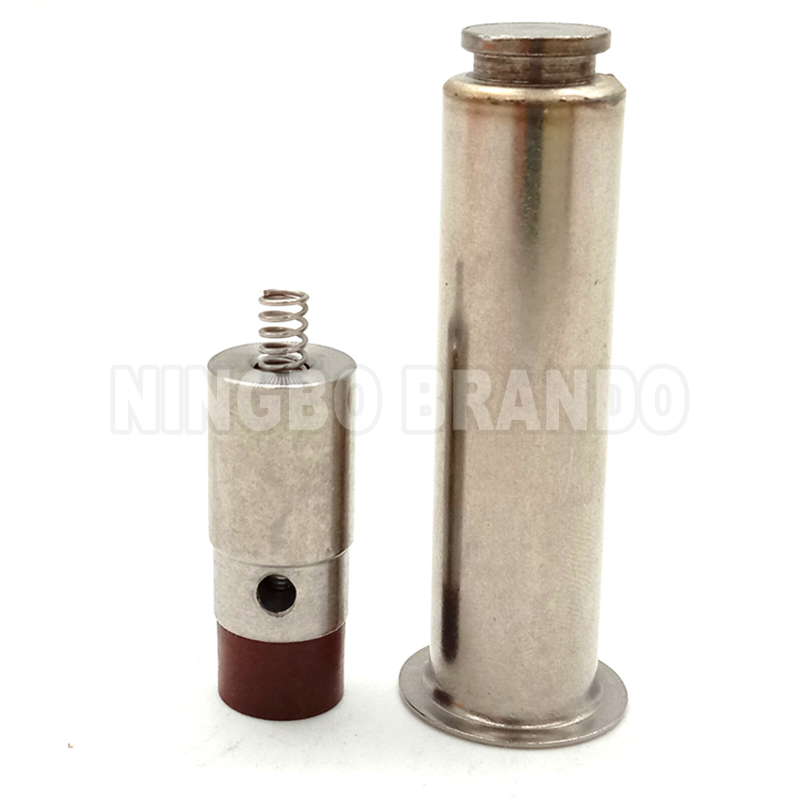

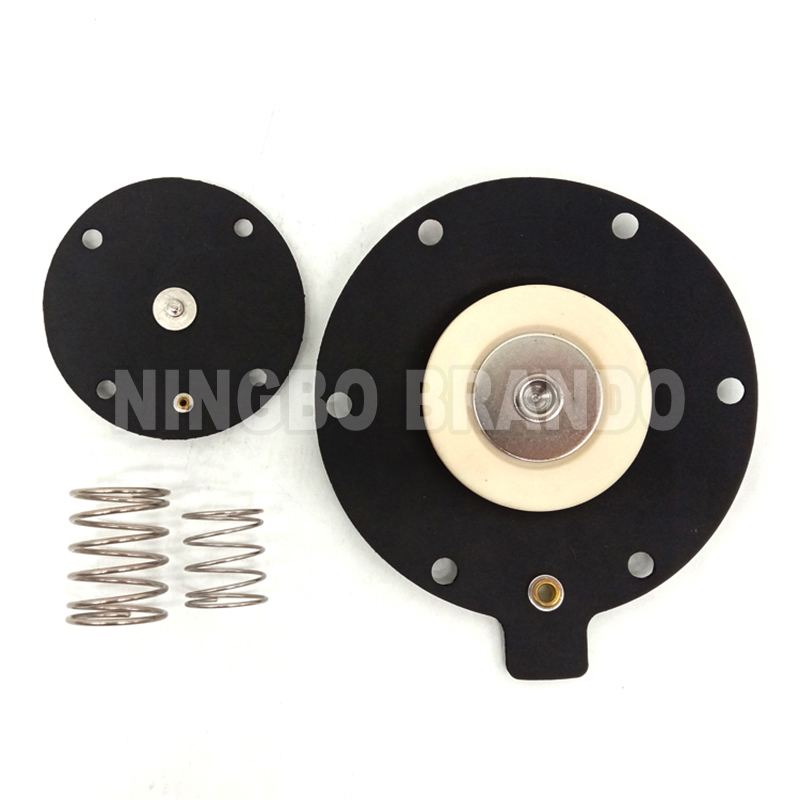

| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
