1.Introduction for Face milling machine:
Face milling machine is used for h beam ,box beam ,cross beam etc metal structure face milling process.H beam face milling machine can mill max face beam 2500*2000.H beam end face milling machine is very easy to operate ,simple structure and fast to adjust.Box beam end face milling machine is necessary equipment for Beam or column structure manufacturer
Beam end face milling machine is consists of Milling head,elevating column,working table,bed,feeding system,electrical control system,railway protection unit,tool etc
2.Drawing for Face milling machine:
3.Technical parameters for Face milling machine:
|
No. |
Model and specifications |
DX1512 |
DX2015 |
DX2520 |
|
1 |
Max section size(mm) |
1500x1200 |
2000x1500 |
2500x2000 |
|
2 |
Slide table speed(mm/min) |
0-750(VFD) |
||
|
3 |
Horizontal motor(kw) |
2.2 |
3 |
3 |
|
4 |
Elevating motor(kw) |
1.5 |
2.2 |
2.2 |
|
5 |
Milling motor(kw) |
4,5.5,7.5,11(optional) |
||
|
6 |
Milling head spindle speed(r/min) |
100-600 |
||
|
7 |
Milling head motor speed(r/min) |
1440 |
||
|
8 |
Milling head spindle retracting(mm) |
70/250 |
||
|
9 |
Milling blade diameter(mm) |
125-250 |
||
4.Face milling machine Applications:
5.Face milling machine Projects:
6.Packing and shipping for Face milling machine:
7.Our Clients:
8.Our Exhibition:
9.Why choosing us:
1. We are MANUFACTURER, so we canoffer better price and after-sale service and shorter delivery date.
2.We have strong design & technical capacity,we can design and manufacture as per the customer's requirement.
3. Our factory has been approved CE certificate and ISO certificates etc
4. We have successfully exported to Europe,USA,Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
5.Our product includes Welding manipulator,welding rotator,welding positioner,H beam welding lines,space frame welding machine,laser welding machine,laser cutting machinelaser cleaning machine,cnc flame plasma cutting machine,edge milling machine,face milling machine,magneticpolishing machine,Sheet metal deburring machine,thread rolling machine,bending machine,punching machine etc
6.We provide a FREE TWO YEAR WARRANTY for all our items.
7.OEM brand.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:

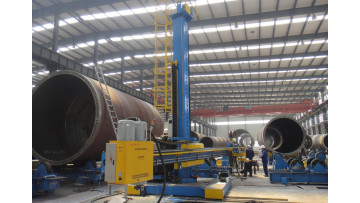

Welding Manipulator,

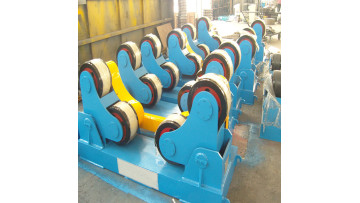

Weding Rotator,

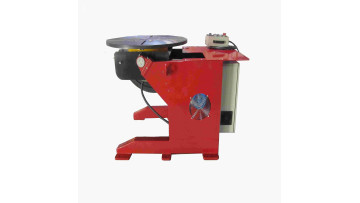

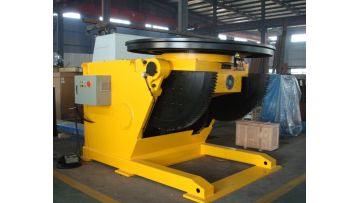

Weding Positioner,
