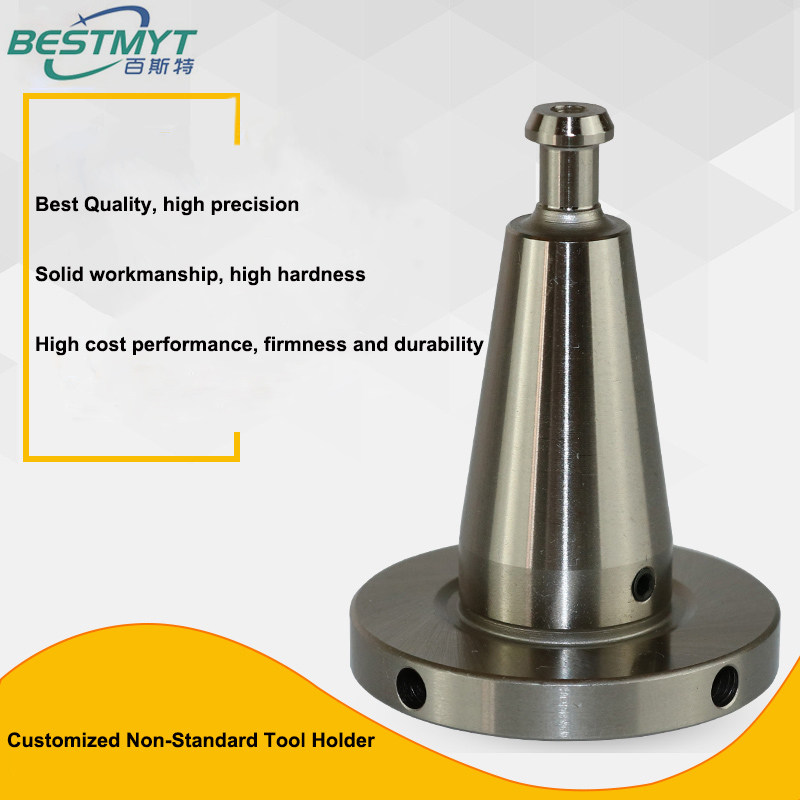

Non-Standard Customized Tool Holder Chuck CNC Spring Chuck
We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Collet Chuck , Tool Holder Device , Collet , Spanner , Pull Stud and Nuts , Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc.
Product Parameters
|
Brand Name |
BESTMYT |
|
Model Number |
Non-Standard Customized Tool Holder |
|
Color |
Bright Silver White |
|
Materials |
20 CrMnTi Alloyed case hardened steel,black-finished and precisely grind. |
|
Taper tolerance |
<AT3 |
|
Precision |
0.002mm |
|
Surface Roughness |
>0.8mm |
|
Roundness |
<0.8μm |
|
Carbonizing depth |
08mm±0.2mm |
|
Hardness |
HRC58-62 |
|
Balance |
G 2.5 / 6.3 |
|
Quality control |
100% inspection |
|
Warranty |
3 years |
|
Service |
Customized OEM / ODM |
|
Usage |
Suitable for working on drill, lathe,boring machine,milling machine and CNC machine center etc. |
|
Applicable cutters |
vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter .Mechanical spindle and cutting tools and other accessories. |
Direction for Use
* The matched nut has preinstalled dynamic balancing design, so the pre-balance can reach 120000RPM
* The tool holder is through-hole, which is better for water to get through and anti-vibrant.
* Please put the collet into the nut and then put then into body together during using.
* The shank is pre-balanced at G2.5 and can provide precision balance at G6.3 made by request.
