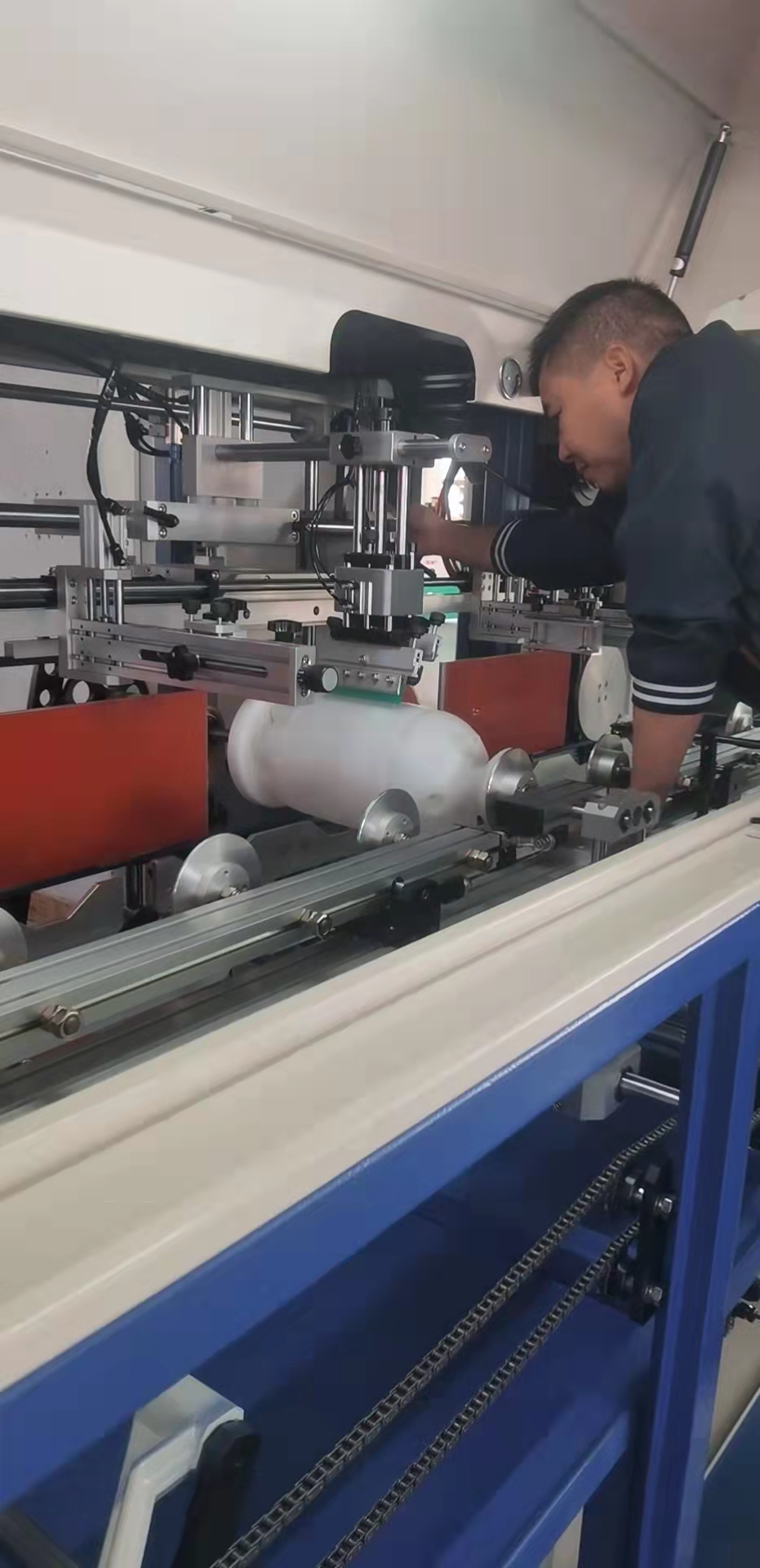

1-2L HDPE Bottle Multi Color Screen Printing Machine
- SL1667 Bottle Screen Printer is suitable for screen printing UV inks of various colors on 1-2 liter HDPE plum blossom bottom plastic jugs/bottles.
- SL1667 Printing Press adopts well-known brand electrical components, easy-to-use touch screen and OMRON PLC control system, with reliable performance.
- SL1667 adopts a highly customizable modular structure, which can be connected in a straight line to become a 1-8 color printing machine.
- Indexing in- feed conveyor loaded by hand with automatic bottle separation..
- Automatic suction cup pick and place device with dual suction cup feeding the buckets onto the “V “ support walking beam.
- Walking beam transport system with counterpoint support.
- Dual station flaming stations.
- Pre - registration station using register lug on base of the bottle.
- No bottle No print device
- UV lamp systems and local lamp system housing with ozone exhaust and blowers, and 3 power levels 50 % 75 % and 100 % power – USA made lamp system.
- Final discharge conveyer
- Variable speed drive motor and indexer 380 volt 3 phase 50 c ( Other voltages on request )
- 360 degree UV guarding with safety interlocks on the doors.
Optional Configuration:
- LED-UV curing function.
Technical Parameters:
- Printing Speed Up to 50pcs/min
- Round Jug Diameter 50–130mm
- Round Jug Height 100–300mm
- Max Printing Length 300mm
- Max Printing Height 250mm
