FL-355nm series laser has the features of high peak power, high repetition rate, and short pulse duration, which is used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
CNI Q-switched DPSS lasers have the advantages of high peak power, narrow pulse duration <2ns and compact dimension, these lasers are widely used in laser process technology, such as rapid laser shaping, laser welding, laser cutting, laser drilling, laser marking, laser weight adjusting balance, laser etching, laser trimming, laser cleaning, laser heat-treatment and surface treatment.
CNI aslo have other wavelengths lasers, such as 532nm. CNI offers the diverse of 532 nm laser sources for a broad range of industrial, medical and scientific applications. For CW operating mode lasers, the output power is up to 20 W available. For Q-switched operating mode lasers, the high power laser series is up to 500 W available, and high energy laser series is up to 1000 mJ available.
Features
Specifications
| Wavelength (nm) | 355±1 | |
| Work pattern | Q-switched | |
| Model | FL-355-1W | |
| Average output power (W) | ~1W | |
| Pulse width (ns) | ~3ns | |
| Peak power (kW) | ~15kW | |
| Pulse repetition rate (kHz) | ~25kHz | |
| Power stability (rms, over 8 hours) | <1%, <2%, <3%, <5% | |
| Transverse mode | TEM00 | |
| Beam divergence, full angle (mrad) | ~1.0mrad | |
| Beam diameter at aperture (mm) | ~8.0mm | |
| Beam height from base plate (mm) | 21.5mm | |
| Operating Temp. (℃) | 20~30℃ | |
| Laser head size | 304.5(L)×60(W) ×80.5(H) mm³, 1.5 kg | |
| Power supply (12VDC) |
PSU-FL-FDA (12V/25A DC ) 253(L) ×242(W) ×100(H) mm³, 3.6 kg |
PSU-FL-OEM (12V/25A DC ) 235(L) ×174(W) ×73(H) mm³, 2.6 kg |
| Expected lifetime (hours) | 20000 | |
| Warranty | 1 year | |
| Datasheet |
 |
|
Marking Samples
Plastic pipe QR code Plastic Glass

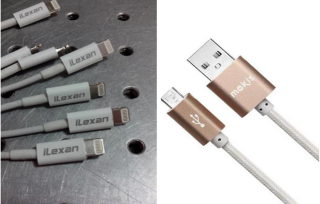

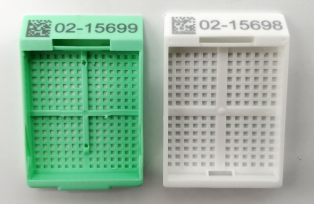

Ballast Charger Charging cable Tissue cassettes
Related Products
Yellow Lasers
532nm green laser
Infrared Lasers
laser 20mw
SLM laser
Red Lasers
1.5w laser
ir laser for sale
uv lasers
single frequency laser
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
