Silicon Photovoltaic Solar Panels

2 year ago
1 0
Product details

Monocrystalline silicon solar panels are a popular choice in the solar industry due to their high efficiency and reliability. These panels are made from a single crystal structure, which allows for better electron flow and higher conversion efficiency compared to other types of solar panels.


One of the key advantages of monocrystalline silicon solar cells is their ability to generate more electricity in a smaller space. This makes them an ideal choice for residential and commercial installations where space is limited. The high efficiency of monocrystalline panels also means that fewer panels are needed to achieve the desired energy output, reducing overall installation costs.

Another advantage of monocrystalline silicon solar panels is their durability and longevity. These panels are made from high-quality materials, ensuring that they can withstand harsh weather conditions and last for decades. This makes them a cost-effective investment in the long run, as they require minimal maintenance and have a longer lifespan compared to other types of solar panels.

Flexible monocrystalline silicon solar panels are a recent innovation in the solar industry. These panels are made from thin, lightweight materials that can be bent or curved to fit various surfaces. This flexibility makes them highly versatile and suitable for applications where traditional rigid panels are not feasible, such as on curved roofs or on vehicles.

In summary, monocrystalline silicon solar panels offer high efficiency, durability, and flexibility. These panels are an excellent choice for those looking to maximize energy production in limited spaces, while also ensuring long-term reliability and performance.

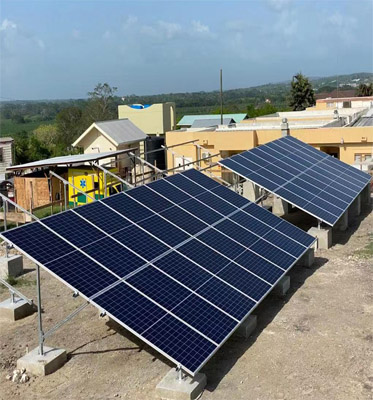

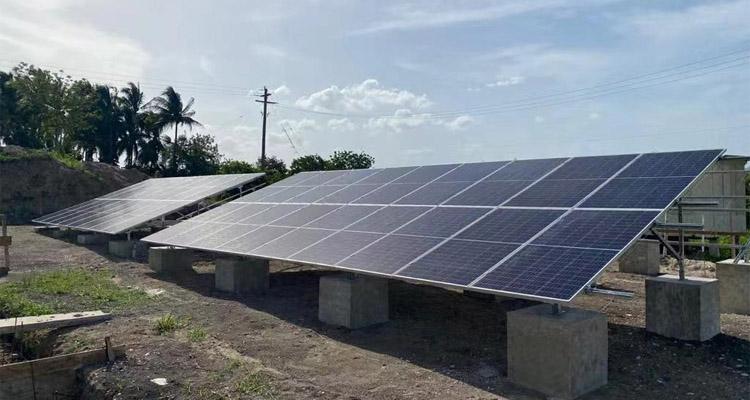

Our PV company specializes in the installation and maintenance of photovoltaic solar panels, offering a comprehensive solar panel system for residential and commercial properties. We utilize cutting-edge technology such as mono perc solar panels and bifacial solar panels to maximize energy generation and efficiency. Whether you need a small-scale residential installation or a large-scale commercial solar panel project, our team is equipped to meet your specific needs.

Model QM435-30V-MH QM440-30V-MH QM445-30V-MH QM450-30V-MH QM455-30V-MH
Nominal Peak Power(W) 435 440 445 450 455
Voltage at Nominal Peak Power(V) 34.16 34.21 34.26 34.31 34.36
Current at Nominal Peak Power(A) 12.74 12.87 12.99 13.12 13.25
Open-circuit Voltage(V) 41.38 41.44 41.50 41.56 41.62
Short-circuit Current(A) 13.41 13.55 13.67 13.81 13.95
Module Efficiency (%) 20.20 20.40 20.60 20.80 21.00
Power Tolerance (W) 0~+5
Pmax Temperature Coefficient -0.35%/ºC
Voc Temperature Coefficient -0.27%/ºC
Isc Temperature Coefficient +0.048%/ºC
Nominal Operating Cell Temperature(ºC) 45±2
Operating and Storage Temperature(ºC) -40~+85
Standard Test Condition(STC) 1000W/m²,AM1.5,25±2ºC
Mechanical characteristics and packlng
Solar Cell Type 182x91 (Mono)
No. of Cells 120 (6x20)
Dimension(mm) 1908x1134x35
Weight(kg) 24.00
Front Glass High transparency solar glass 3.2mm
Frame Silver anodized aluminum alloy
Max. System Voltage(V) 1500
Max. Series Fuse Rating Current(A) 25
Junction Box IP68 with 3 diodes
Output Cable 4mm² x30cm cable, MC4 compatible connector included
Mechanical Load Front side 5400Pa/Rear side 2400Pa
20FT Container 6 pallets/186pcs
40HQ Container 24 pallets/744pcs
Abd6fbd8dc7b34157b688156281ef062ejAf0a36fa0db1349569e04279652a12674p
A54c6f982127e4a20a9767866e0a4e12e1
