1/2'' Timer Controlled Air Compressor Drain Solenoid Valve
Brando is a Air Compressor Auto Drain Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The air compressor Auto Drain Valve is suitable for a wide range of compressed air applications including compressors, receivers, filters and refrigerated air dryers.
The COMBO auto drain valve combines an adjustable electronic timer controlled drain, a ball valve and a mesh strainer into one compact easy to install package.
The OPTIMUM auto drain valve with an easily adjustable electronic timer, a Direct Acting Solenoid Valve, a large orifice and options for a brass or stainless steel body, this drain provides reliable compact condensate removal.
Technical Data of Auto Drain Valve:
|
Model
|
BADV01
|
BADV02
|
|
Port Size
|
1/8'', 1/4'', 3/8'', 1/2''
|
|
|
Valve Type
|
OPTIMUM
|
COMBO
|
|
Operation Type
|
2/2 Way, Direct Acting
|
|
|
Power Connection
|
DIN 43650 FormA
|
|
|
Voltages
|
24V DC, 110V AC, 220V AC (50/60Hz)
|
|
|
Body Material
|
Brass, Stainless Steel (For High Pressure)
|
|
|
Seal Material
|
FKM
|
|
|
Insulation Class
|
H
|
|
|
Protection Class
|
IP65
|
|
|
Timer Cycle Range (ON / OFF)
|
0.5 - 10seconds / 0.5 - 45 minutes
|
|
|
Timer Cycle Indicatin
|
Bright LED illumination
|
|
|
Test Feature
|
Yes
|
|
|
Pressure Range
|
0 - 230 PSI
|
|
|
Medium Temperature
|
34 - 131℉
|
|

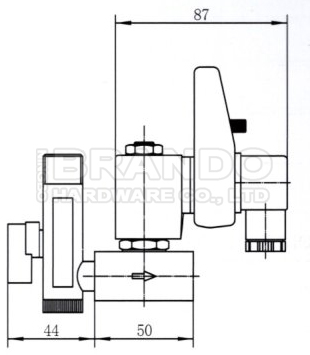

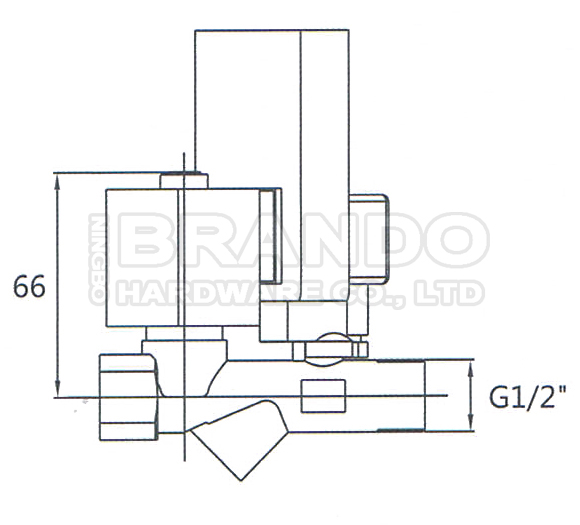

Main Dimension of Auto Drain Valve:
OPTIMUM COMBO

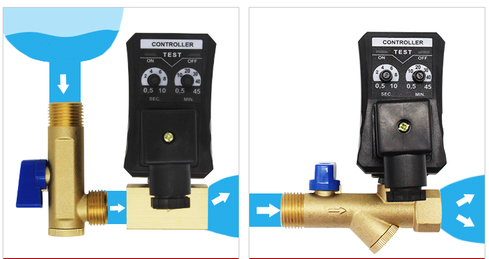

Working display of Auto Drain Valve:

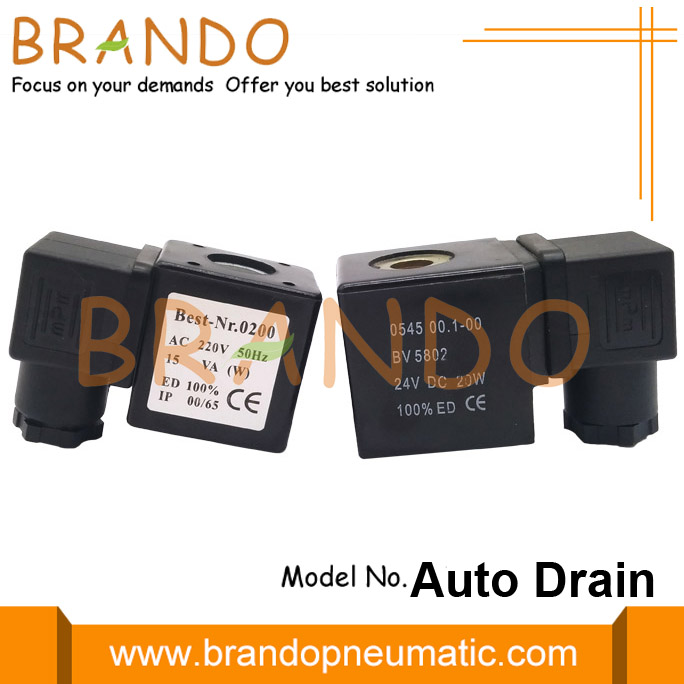

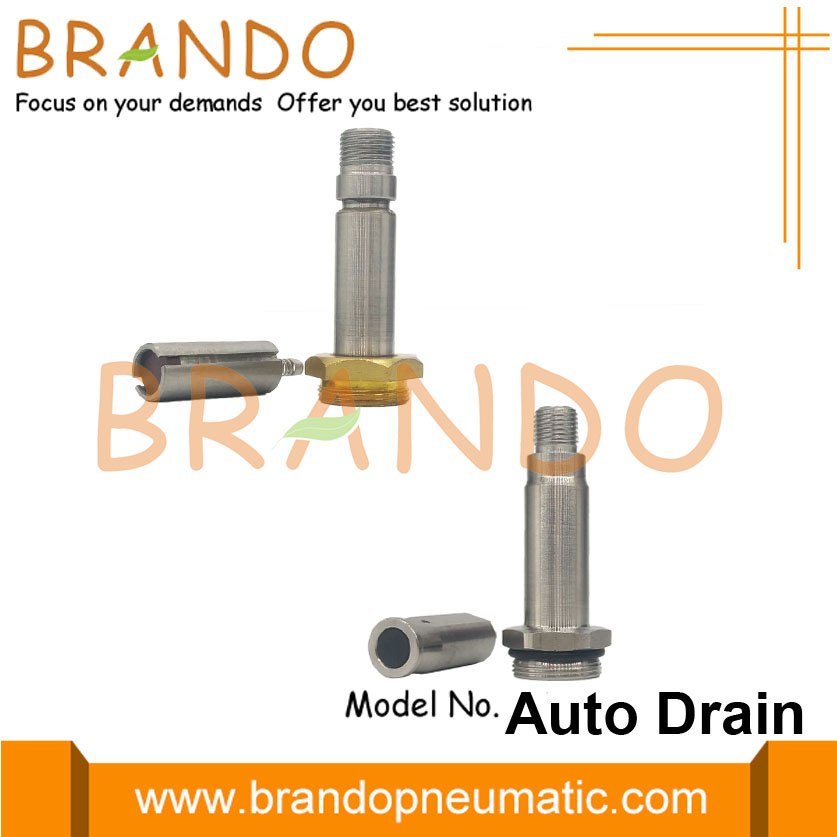

Spare Parts of Auto Drain Valve:
Brando Factory Solenoid Valve Production:

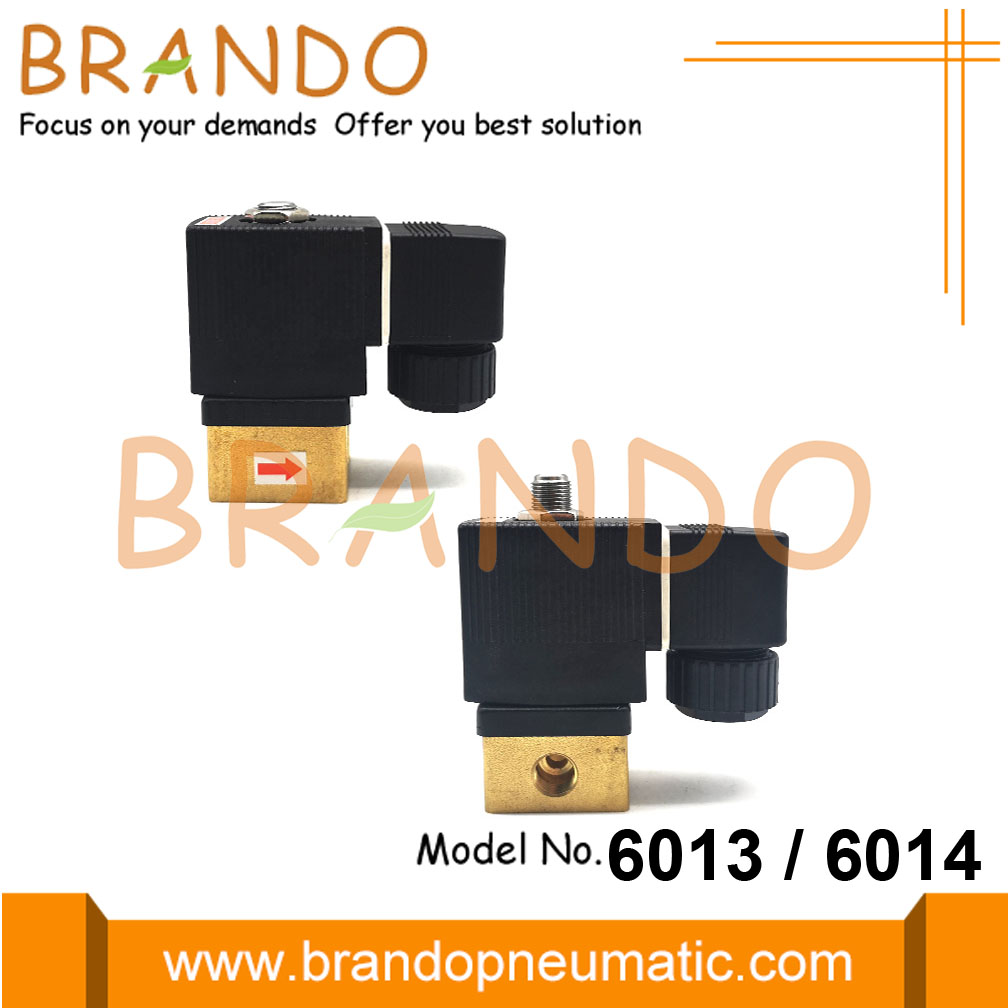

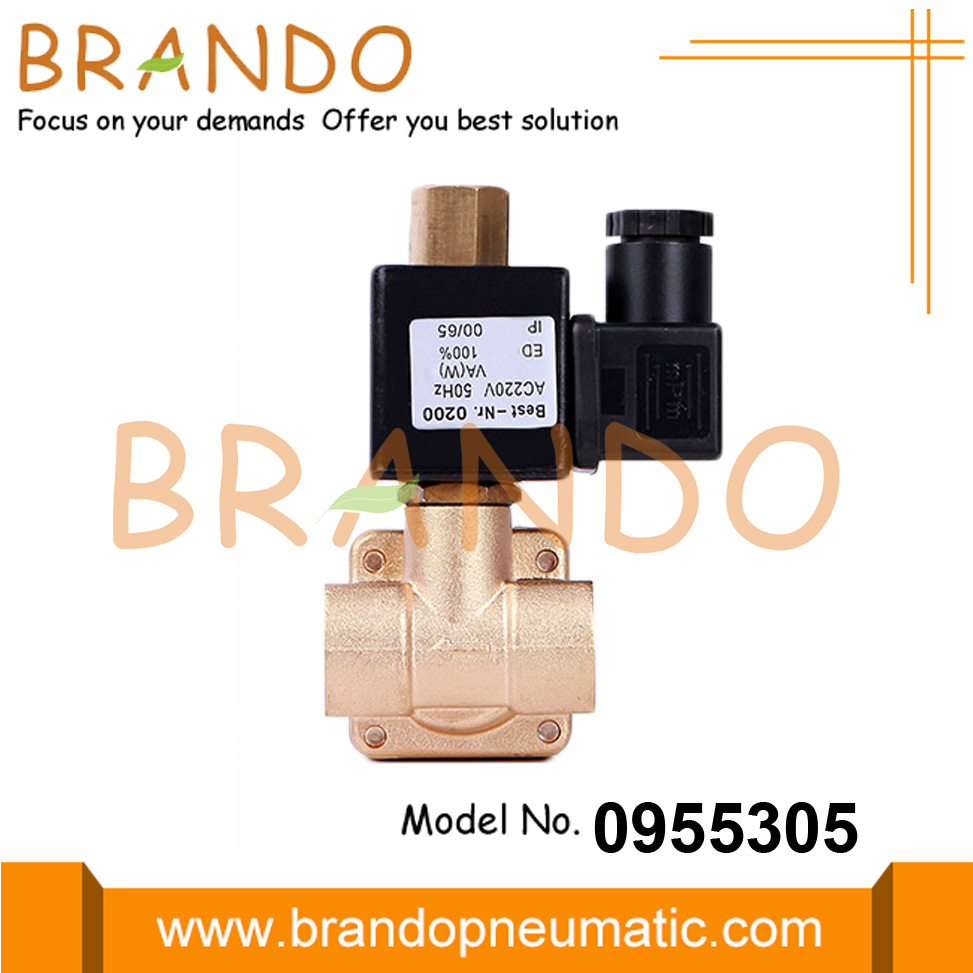

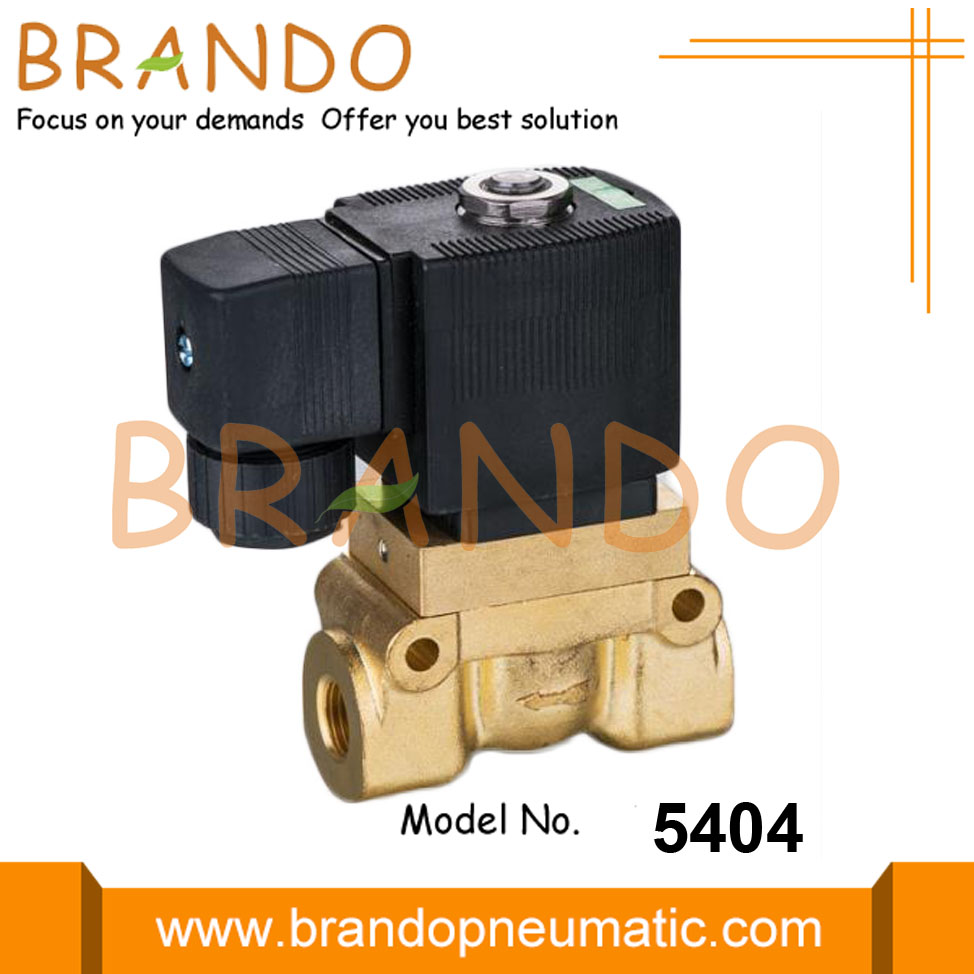

More Solenoid Valve for your to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
