Product Introduction:
Haohong hydraulic has a lot of Hydraulic Check Valves for you to choose.For example，Z1S Series,S10P Series,RVP Series.
We also have the Directional Control Valves like Solenoid Directional Valves DSG02.03 Series.It can help you to change the direction of oil too.

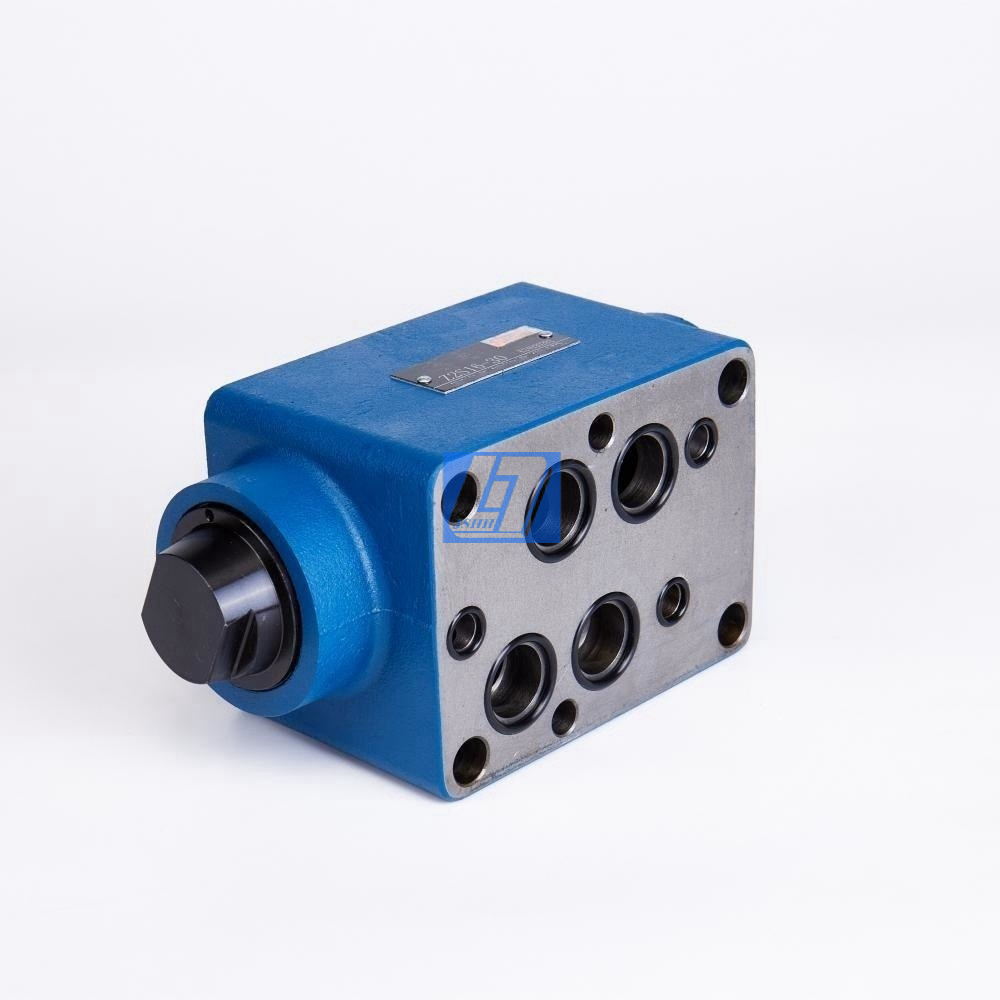

The Z2S stacked dual hydraulic control one-way valve is a high-performance hydraulic control valve widely used in flow control and pressure control in hydraulic systems. This valve has the function of a dual hydraulic control one-way valve, which can achieve flow superposition and pressure superposition control in the hydraulic system.
Product features:
1. High performance: The Z2S stacked dual hydraulic control one-way valve adopts advanced hydraulic control technology, which has fast response, stable and reliable performance, and can meet the control requirements of complex hydraulic systems.The Z2S stacked dual hydraulic control one-way valve is a high-performance and multifunctional hydraulic control valve that has the function of a dual hydraulic control one-way valve and can achieve flow control in hydraulic systems. This valve has the advantages of high reliability, energy conservation and environmental protection, and is widely used in various fields such as engineering machinery, metallurgical equipment, mining machinery, shipbuilding machinery, agricultural machinery, etc.

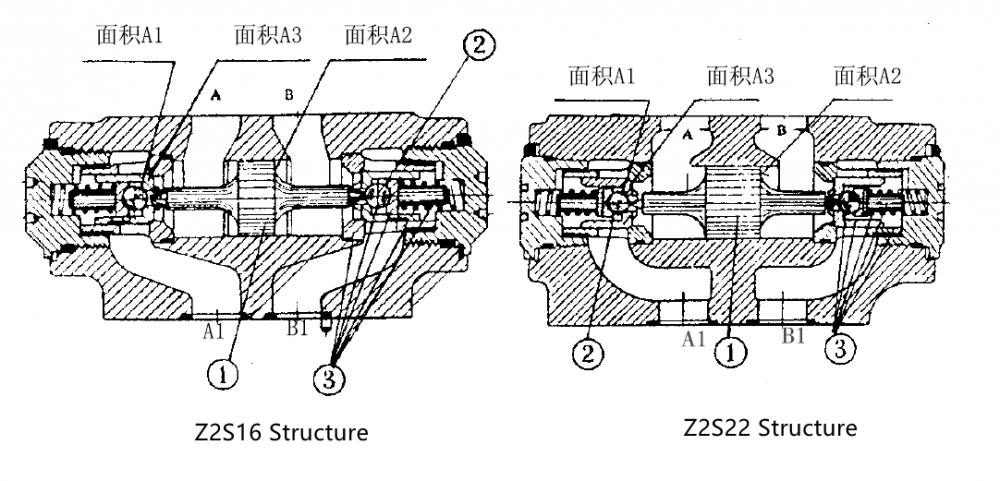

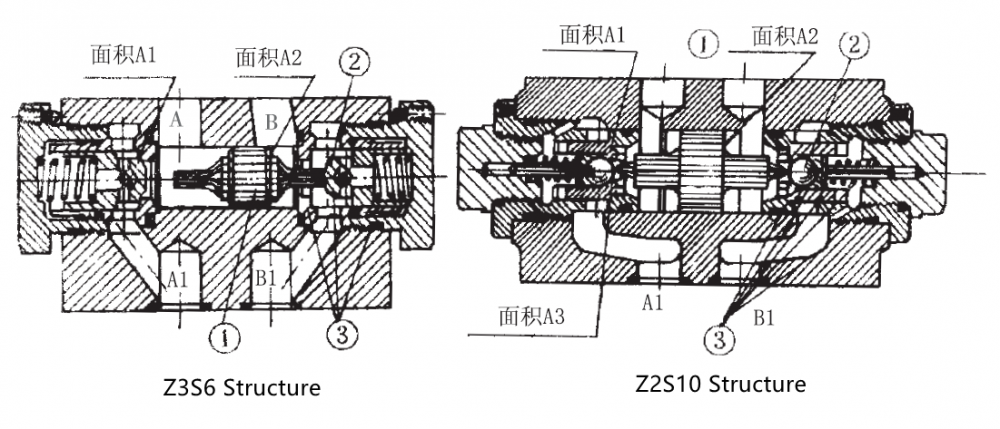

Z2S type check valve is a superimposed hydraulic control check valve, it can be used to close one or two working oil ports, no leakage for long time, good stability, free flow of oil from A to A1 or B to B1, Reverse is blocked. If the oil flow through the valve, eg from A to the pressure oil acts on the valve core (1), the valve moves to the right and pushes the ball (2) off the valve seat. A1, when the one-way valve (3) is opened by the controlled oil, the oil can flow from B1 to B. The pressure is unloaded in the B1 cavity, and the one-way valve (3) is fully opened.
In order to ensure that the two one-way valves can be closed reliably when the reversing valve is in the neutral position, the A and B ports of the valve are connected to the oil return line.
1- Valve core
2- Steel ball
3- Check Valve

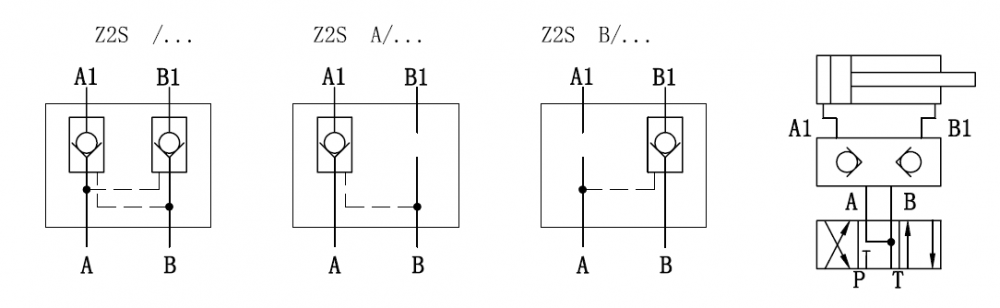

Symbol
