Product details

Pipe Process of ASME SA335 P9 Steel tube / ASTM A335 P9 Alloy Steel tube:

Round Billet → Material Inspection → Grinding → Cut to Length → Heating → Piercing → Bite mandrel → Hot Rolled → Get Rid of Mandrel → Heat Treatmen t → Size Reducing → Cooling → Straightening → Semi Manufactured Product → Corp End Cutting off → UT/ET TEST or Hydrostatic Test → Marking → Packing → Warehousing

ASTM /ASME
Product Name	Executive Standard	Dimension (mm)	Steel Code / Steel Grade
Seamless Ferritic and Austentic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes	ASTM A213	Ø9.52~630 x WT0.59~40	T2, T5, T9, T11, T12, T22, T91, T92
Seamless Ferritic Alloy Steel Pipes for High Temperature Use	ASTM A335	Ø10.3~1200 x WT2~200mm	P5, P9, P11, P12, P22, P91, P92
Seamless Carbon and Alloy Steel for Mechanical Tubing	ASTM A519	Ø10.3~323.9 x WT1.65~40mm	4130, 4130X, 4140, 4145

EN
Product Name	Executive Standard	Dimension (mm)	Steel Code / Steel Grade
Seamless Ferritic Alloy Steel Pipes for High Temperature Use	EN10216-2	Ø10.3~323.9 x WT1.65~40mm	13CrMo4-5, 1-CrMo9-10, X10CrMoVNb9-1, 15NiCuMoNb5-6-4

Application of ASME SA335 P9 Steel tube / ASTM A335 P9 Alloy seamless steel tubes:
Alloy seamless steel pipe is ideally suitable for chemical, petrochemicals and other energy-related applications. It has characteristics of high corrosion resistance and can be used in a wide range of industrial sectors.
- Chemical industries
- Petrochemical industries
- Energy-related applications

Chemical Composition and Mechanical Properties of ASME SA335 P9 Steel tube / ASTM A335 P9 Alloy Steel Seamless tubes

Standard

Types Chemical Composition(%)

Steel Name

Steel Number

Cr+Cu

+Mo+Ni

ASTM A335/ ASME SA335

≤0.15

0.25 -1.00

0.30 -0.60

≤0.025

8.0 -10.0

0.90 -1.10

Standard

Grade

Steel Name

Steel Number

Yield Strength

Tensile Strength

Elongation(%)

Impact Properties(KV J)

( Mpa)

(Mpa)

Longitudinal

transverse

ASTM A335/ ASME SA335

0℃

-10℃

0℃

205min.

415min.

≥30

DIMENSION TOLERANCES OF ASME SA335 P9 Steel tube / ASTM A335 P9 Alloy Steel Seamless tubes :

Types						Types																							Uses
Hot rolled						OD								OD<101.6															+0.4/-0.8
														190.5≥OD≥101.6															+0.4/-1.2
														228.6≥OD≥190.5															+0.4/-1.6
						WT								OD≤101.6, WT ≤2.4															+40/-0
														OD≤101.6, 2.4<W ≤3.8															+35/-0
														OD≤101.6, 3.8< W ≤4.6															+33/-0
														OD≤101.6, W >4.6															+28/-0
														OD>101.6, 2.4<W ≤3.8															+35/-0
														OD>101.6, 3.8< W ≤4.6															+33/-0
														OD>101.6, W >4.6															+28/-0
Cold drawn						OD								OD<25.4															±0. 10
														25.4 ≤ OD ≤ 38.1															±0.15
														38.1 < OD < 50.8															±0. 20
						WT								50.8 ≤ OD <63.5															±0.25
														63.5 ≤ OD <76.2															±0. 30
														76.2 ≤ OD ≤ 101.6															±0. 38
														101.6< OD ≤ 190.5															+0.38/-0.64
														109.5< OD ≤ 228.5															+0.38/1.14
														OD≤38.1															+20/ -0
														OD>38.1															+22/ -0

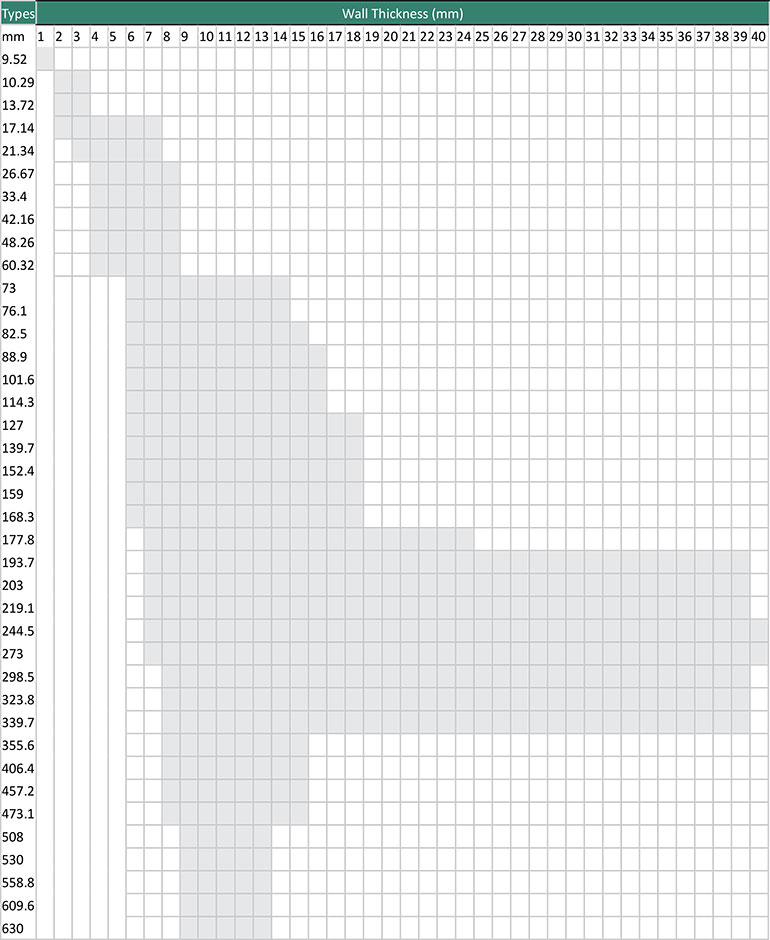

Types		Wall Thickness (mm)
mm	1	2	3	4	5		6	7	8	9	10	11	12		13	14	15	16	17	18	19	20	21	22	23	24	25	26		27	28	29	30	31	32	33	34	35	36	37	38	39	40
9.52
10.29
13.72
17.14
21.34
26.67
33.4
42.16
48.26
60.32
73
76.1
82.5
88.9
101.6
114.3
127
139.7
152.4
159
168.3
177.8
193.7
203
219.1
244.5
273
298.5
323.8
339.7
355.6
406.4
457.2
473.1
508
530
558.8
609.6
630
