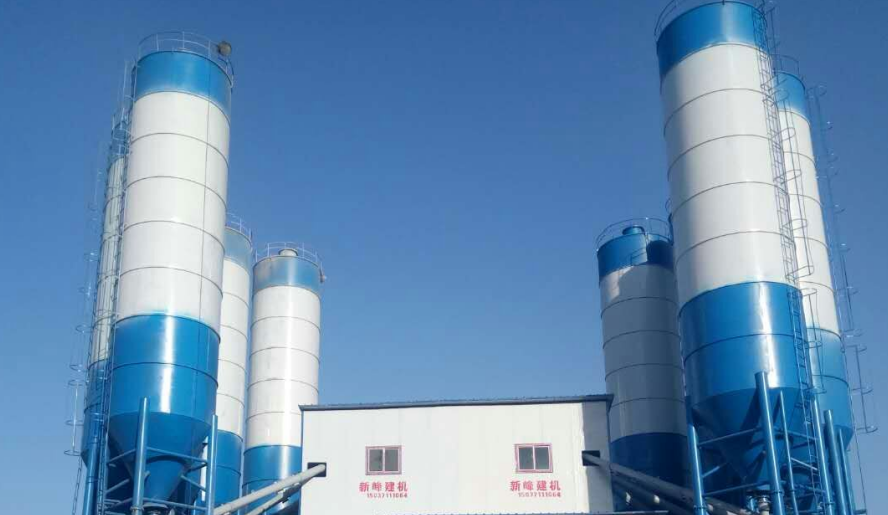

50-500T Cement Silos Concrete batching plants For Sale
The sheet-assembled cement silo applies to engineering construction concrete mixing stations roads and bridges water conservancy urban construction and other projects. It is also suitable for storing grain cement fly ash and other bulk materials.
The sheet-assembled cement silo is designed for resolving the difficulties in export packing on-site silo making construction site transferring extra-high and extra-wide transportation.
|
Type |
Tank diameter |
Tank height |
Silo Capacity(T) |
Quantity of silo legs |
Total height |
|
50t |
3m |
8m |
50 |
4 |
12m |
|
80t |
3m |
10m |
80 |
4 |
15.6m |
|
100t |
3m |
12.5m |
100 |
4 |
18m |
|
150t |
3.2m |
13m |
150 |
4 |
18m |
|
200t |
3.6m |
13.6m |
200 |
4 |
18.6m |
|
300t |
4.5m |
12.6m |
300 |
4 |
18.6m |
|
500t |
6m |
11.7m |
500 |
6 |
18.7m |
|
625t |
6.5m |
13.8m |
625 |
6 |
19m |
The sheet-assembled cement silo is a kind of closed storage tank which is safe reliable and convenient to be installed.
The cement silo must be erected by a special crane when working. Then place it on the prefabricated concrete and check the verticality between cement silo and the horizontal level. Then weld the bottom of the silo with embedded parts firmly.
