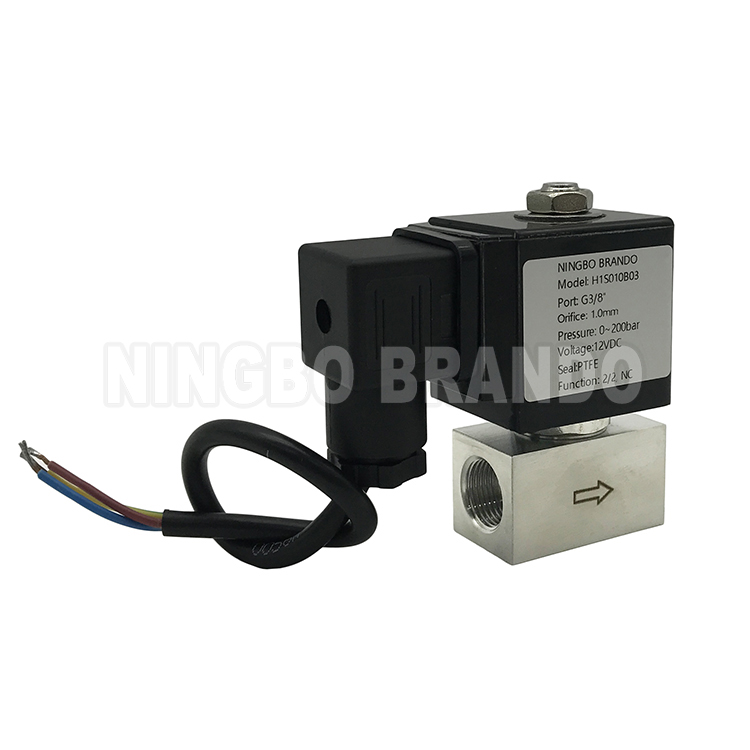

250 bar High Pressure Solenoid Valve 1/4'' 3/8''
Specifications:
1. Working Medium: Air, Water, Gas, Liquid, etc
2. Working Pressure: 0 to 300 bar
3. Medium Temperature: -10 to +180℃
4. Port Size: 1/4'', 3/8''
5. Orifice Size: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model No
|
Port Size
|
Orifice Size
|
CV
|
Working Pressure
(bar)
|
Body
|
Seal
|
Function
|
Voltage
|
|
|
220VAC
|
24VDC
|
||||||||
|
H1S010BXX
|
1/8''
1/4''
|
1.0mm
|
0.04
|
0 to 300
|
0 to 200
|
SS304
|
PTFE
|
2 Way NC
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
H1S015BXX
|
1.5mm
|
0.08
|
0 to 250
|
0 to 200
|
|||||
|
H1S020BXX
|
2.0mm
|
0.15
|
0 to 180
|
0 to 120
|
|||||
|
H1S025BXX
|
2.5mm
|
0.20
|
0 to 110
|
0 to 80
|
|||||
|
H1S030BXX
|
3.0mm
|
0.25
|
0 to 80
|
0 to 40
|
|||||
|
H1S040BXX
|
4.0mm
|
0.6
|
0 to 40
|
0 to 15
|
|||||

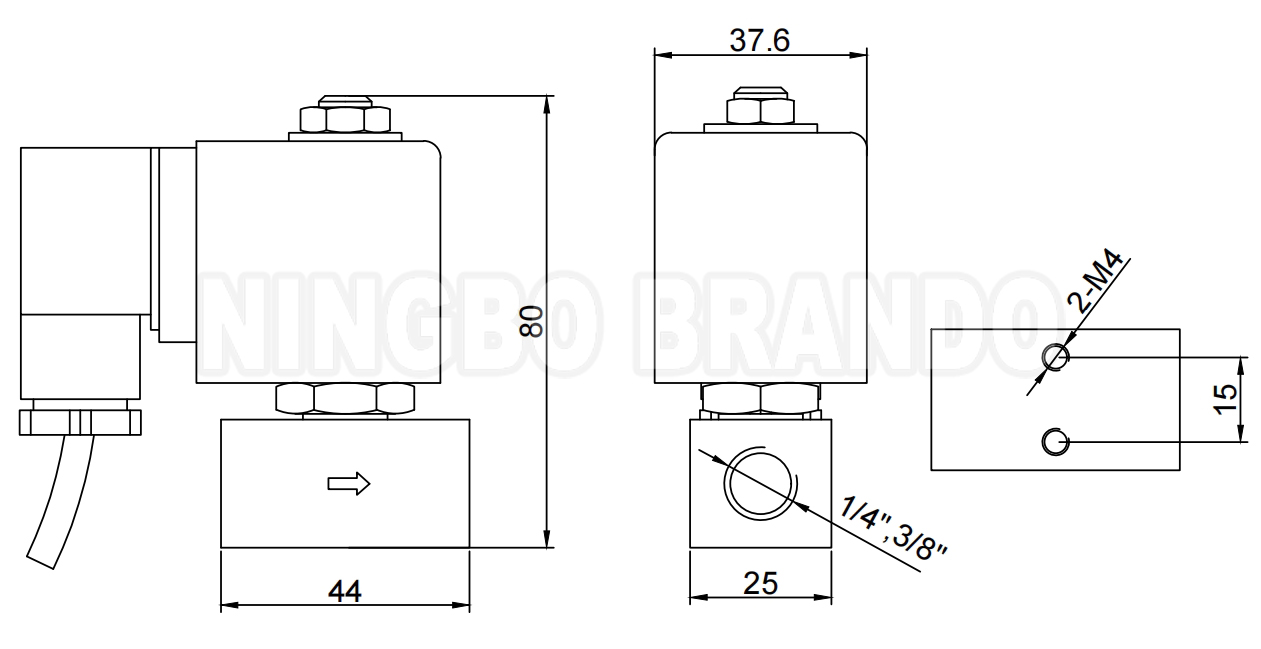

Main Dimension:
Our Production:
FAQ:
Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.
Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.
Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

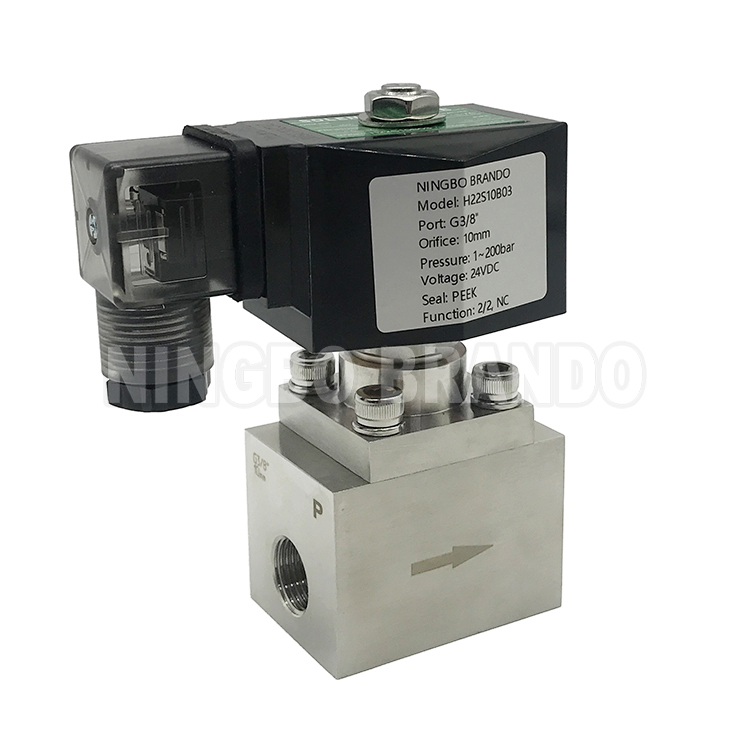

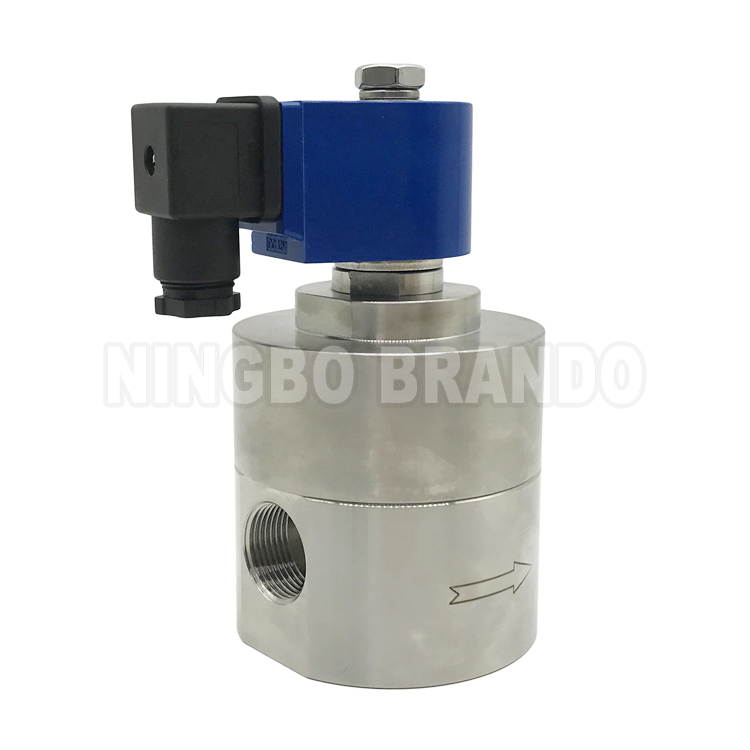

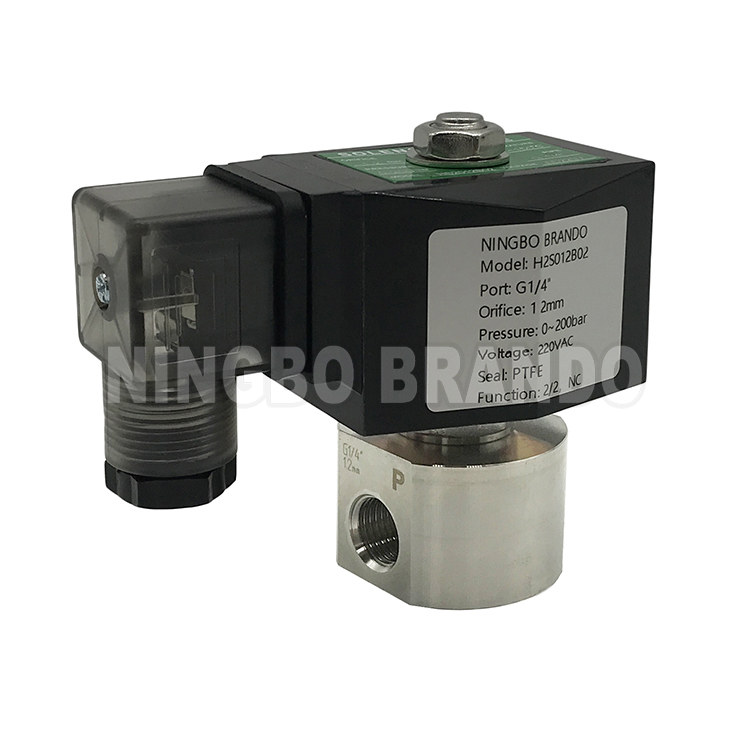

Similar Products:
 |
 |
 |
 |
|
Max 200 bar |
Max 200 bar | Max 300 bar |
Max 360 bar |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
