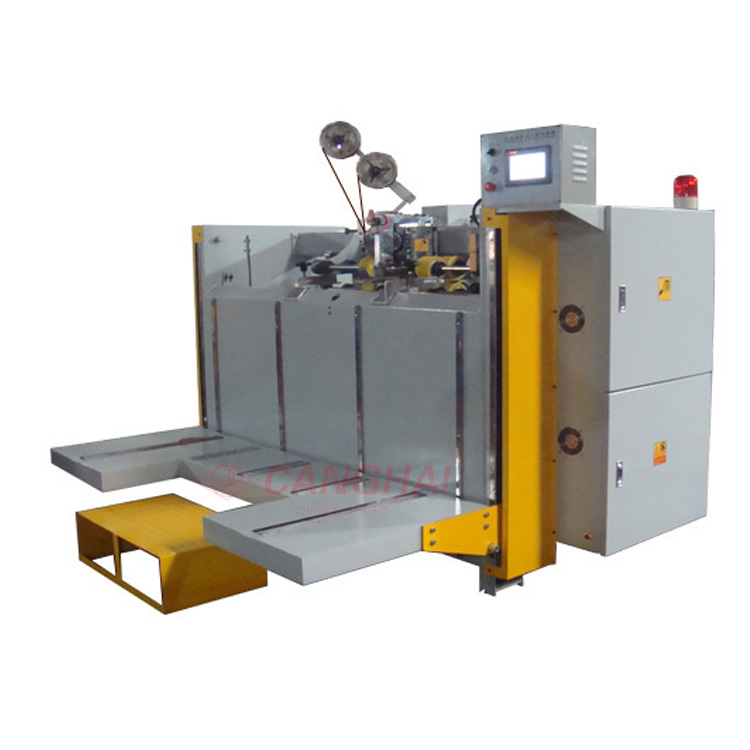

Semiautomatic cardboard carton box stitching machine
|

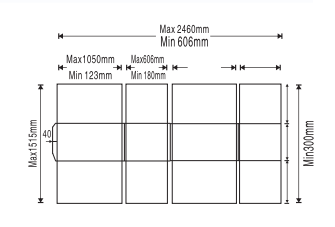

specification |
|
|
1515X2460mm |
|
|
Max(L+W)×2 |
2460mm |
|
Min(L+W)×2 |
606mm |
|
Max(W+H)×2 |
1515mm |
|
Min(W+H)×2 |
300mm |
|
Machine Speed |
500 nail/Minute |
|
Stitching Pitch |
30-120mm |
|
Height of feeder |
900mm |
|
Power |
6HP |
|
Machine Length |
2800mm |
|
Machine Weight |
2000KG |
|
Stitching Type |
Single, double, Tie Stitching |
|
No.of Stitches |
1-99 Stitches |
|
The first Stitching pitch |
25mm |
|
Stitching wire |
2.0*(0.68-0.75)mm |
Suitable for 3-Layer and 5-Layer boxes(3mm-8mm),customed size available
Features:
The size can be quickly changed in one minute
Very easy operation no training required
Single, double and tie stitching are available
Automatic counter ejector
Touch screen operation
Double Servo Control system
Stitching pitch can be set on the touch screen, and The max stitching pitch can reach for 120mm
Machine speed:500stitchers/minute
Suitable for boxes with cover or without cover
Rear baffle was Electrically controlled,it has the memory function
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
2. Where is your company located? How can I visit there?
Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--25 years' experience: We have been in making die cutting machine carton box for 25 years.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
5. Whats your guaranty time?
We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
