TD 1 Angle Refrigeration TXV Thermostatic Expansion Valve

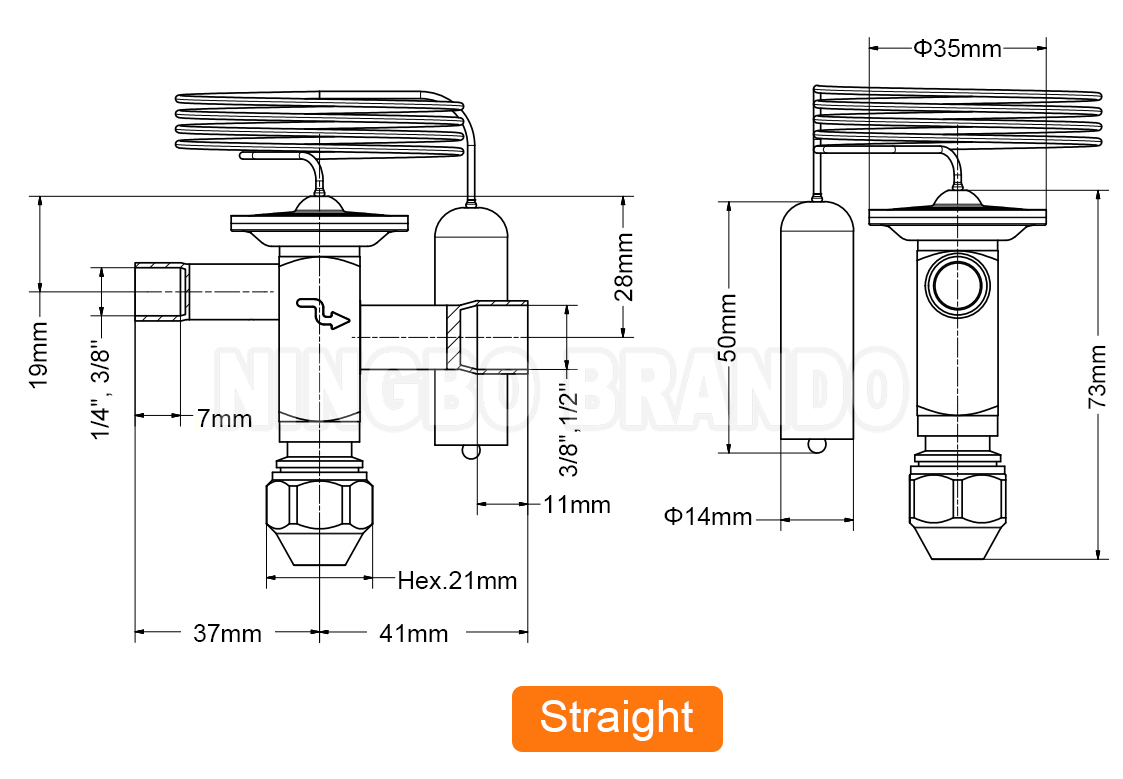

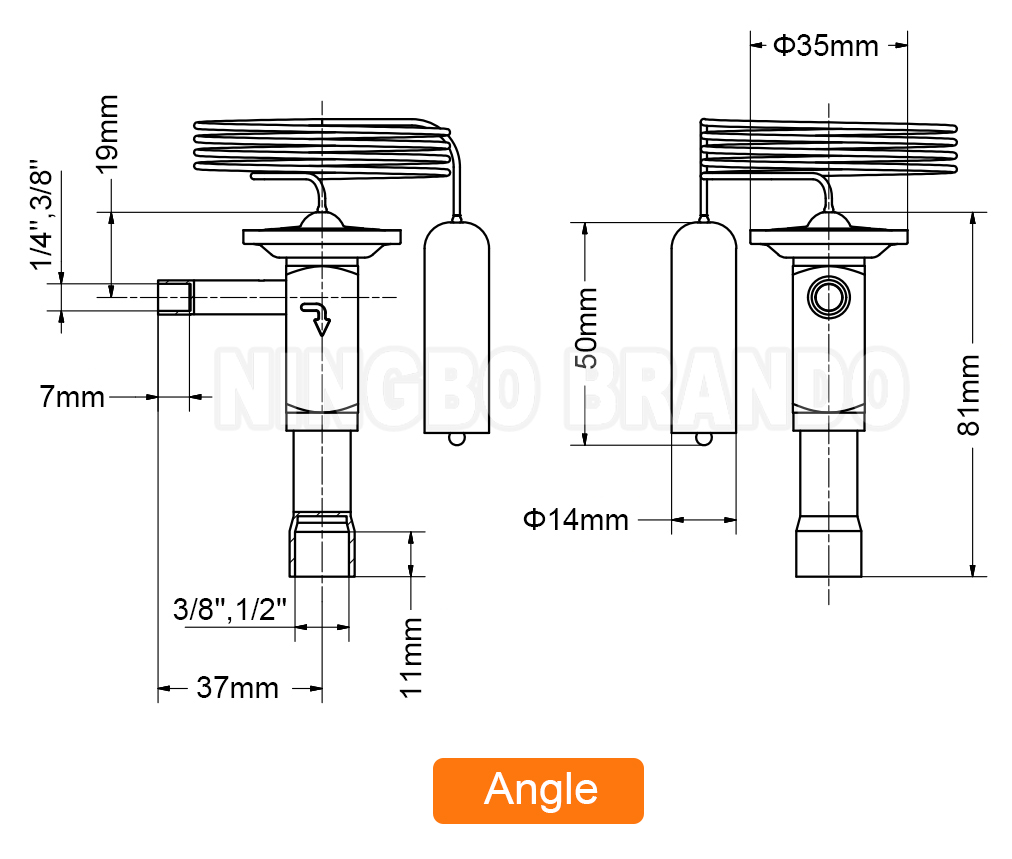

TD 1 is a thermostatic expansion valve designed to regulate refrigerant injection into evaporators. The injection depends on the refrigerant superheat at the evaporator outlet, where the bulb must be placed. TD 1 is constructed for hermetic sealed systems and supplied as angleway and straightway version.
Application Examples:
1. GDM (Glass Door Merchandiser)
2. Commercial fridge and freezer
3. Heat Pump
Technical Data:
|
Type
|
Flow Direction
|
Port (ODF)
Inlet x Outlet
|
Equalization
|
Refrigerant
|
Orifice No
|
|
TD 1
|
Angle
Straight
|
1/4'' x 3/8''
(6mm x 10mm)
|
Internal
|
R134a
R22
R404a
R407C
|
0
1
2
3
4
5
|
|
3/8'' x 1/2''
(10mm x 12mm)
|
Rated Capacity:
|
Orifice no
|
Rated capacity in tons (TR)
|
Rated capacity in kW
|
||||||
|
R134a
|
R22
|
R404a
|
R407C
|
R134a
|
R22
|
R404a
|
R407C
|
|
|
0
|
0.13
|
0.23
|
0.24
|
0.26
|
0.46
|
0.82
|
0.83
|
0.9
|
|
1
|
0.2
|
0.34
|
0.32
|
0.37
|
0.7
|
1.19
|
1.13
|
1.31
|
|
2
|
0.34
|
0.54
|
0.51
|
0.59
|
1.19
|
1.89
|
1.78
|
2.09
|
|
3
|
0.57
|
0.84
|
0.67
|
0.92
|
2.01
|
2.95
|
2.37
|
3.24
|
|
4
|
0.8
|
1.16
|
0.95
|
1.28
|
2.83
|
4.10
|
3.36
|
4.51
|
|
5
|
1.08
|
1.83
|
1.635
|
2.01
|
3.81
|
6.43
|
5.79
|
7.08
|
Our Production:
Related Products:
 |
 |
 |
 |

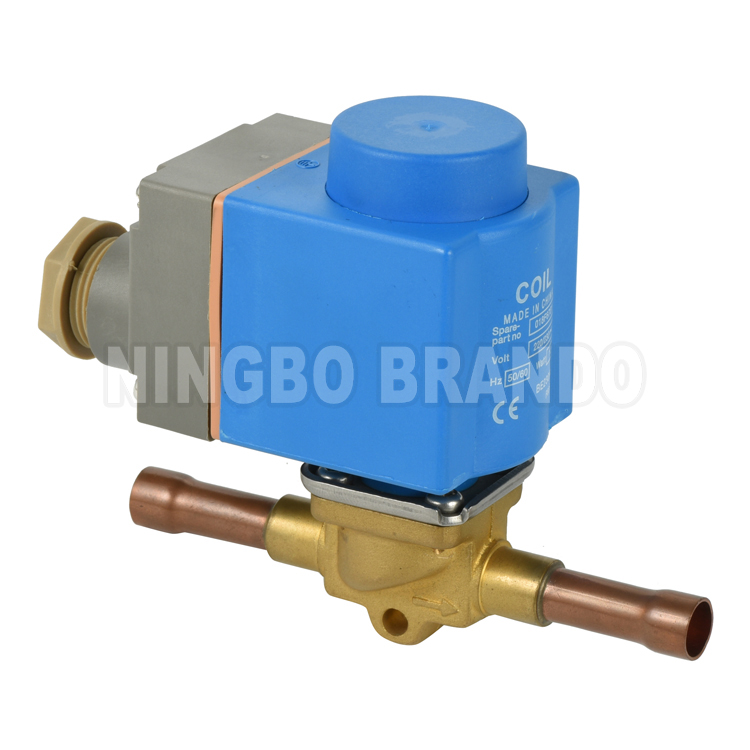

| Refrigeration Solenoid Valve |

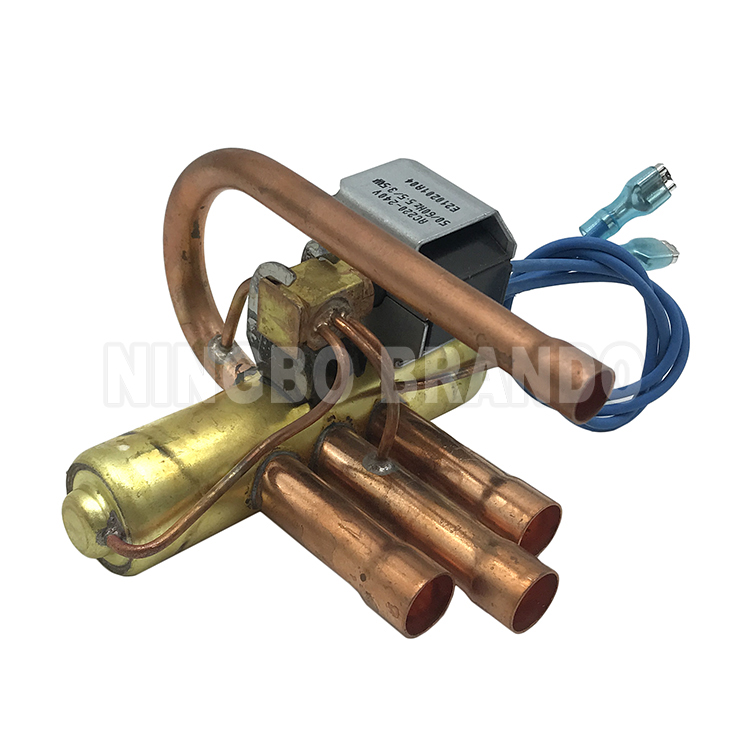

4 Way Reversing Valve |

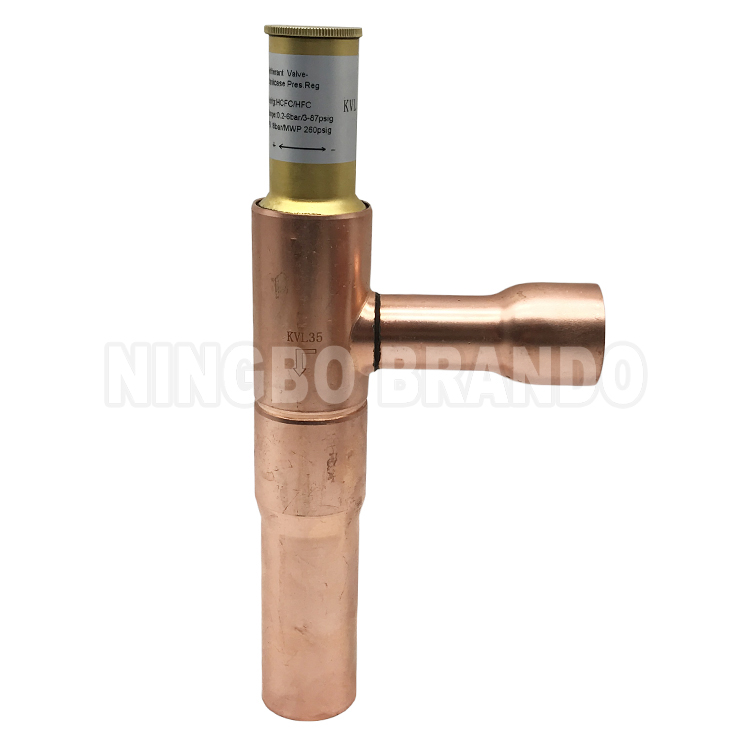

Pressure Regulator |
