CNC Machine BT40 Stone Cutter Holder for Stone Engraving
We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Collet Chuck , Tool Holder Device , Collet , Spanner , Pull Stud and Nuts , Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc.
Product Description
|
Brand Name |
BESTMYT |
|
Model Number |
BT40 Stone tool holder |
|
Color |
Bright Silver white with nickel film coated |
|
Materials |
20/42CrMnTi Alloyed case hardened steel,black-finished and precisely grind. |
|

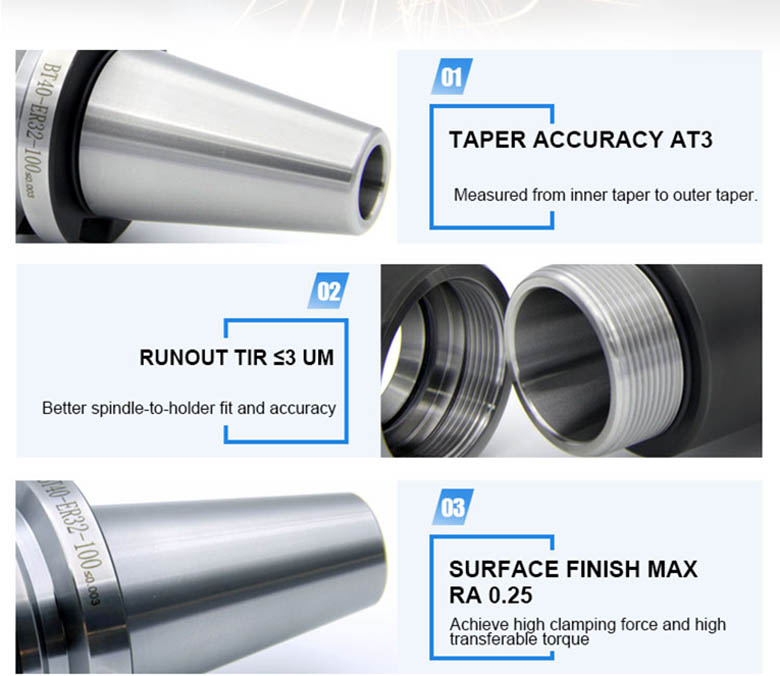

Taper tolerance |
<AT3 |
|
Precision |
≤0.001 mm |
|
Surface Roughness |
>0.8mm |
|
Roundness |
<0.8μm |
|
Carbonizing depth |
08mm±0.2mm |
|
Hardness |
HRC58-62 |
|
Balance |
G2.5 / G6.3 |
|
Quality control |
100% inspection |
|
Warranty |
3 years |
|
Service |
Customized OEM/ODM |
|
Function |
Suitable for drill iron bed, grinder, lathe,process,carving Machine, Engraving and Milling machine etc various stone maching centers and precion lathes. |
|
Applicable cutters |
vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter .Mechanical spindle and cutting tools and other accessories. |
Our Advantages
1. Raw materials: Carbonized steel high harden ability, especially high temperature impact toughness under guaranteed harden ability.
2. Production capacity: Optimizing the industrial structure makes our production efficient, cost-effective and very good quality.
3. Application: Vertical/horizontal/gantry cnc machining.
Installation and Usage
BT tools allow use of ATC (Automatic Tool Change) technology to maximize the speed and productivity of manufacturing. BT tool holders perform work with high strains and pressures, so be sure to store them safely without any chance for the tool being damaged – as this may cause some misbalance that can be critical at high speeds and precise CNC machinery. To insure proper performance of your toolholders, overall cleanliness of toolholder, collet pocket, collet, and nut must be maintained. It’s important to remember that all these components are manufactured to perform within tolerances of ten-thousanths (.0001”) of an inch.
Product Features
