VX2130-10 Brass Solenoid Valve 3/8'' AC220V AC110V DC24V
Product Features:
1. Working Media: Air, Water, Gas, Liquid, Steam, etc
2. Working Pressure: 0 to 10 bar
3. Medium Temperature: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃
4. Port Size: 3/8'', 1/2''
5. Orifice Size: 10mm, 13mm
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
BRANDO Model
VX2260-03
VX2360-03
VX2360-04
Ref No
VX2120-10
VX2130-10
VX2130-15
Orifice Size
10mm
13mm
13mm
Port Size
3/8''
3/8''
1/2''
Medium
Water, Air, Gas, Liquid, Steam, etc
Operation
Direct Acting
Function
2 Way Normally Closed
Body Material
Brass
Seal Material
NBR, EPDM, FKM
Medium Temperature
NBR: -5 to +80℃
EPDM: -5 to +120℃
FKM: -10 to +150℃
Working Pressure
0 to 10 bar
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, other voltages can be customzied

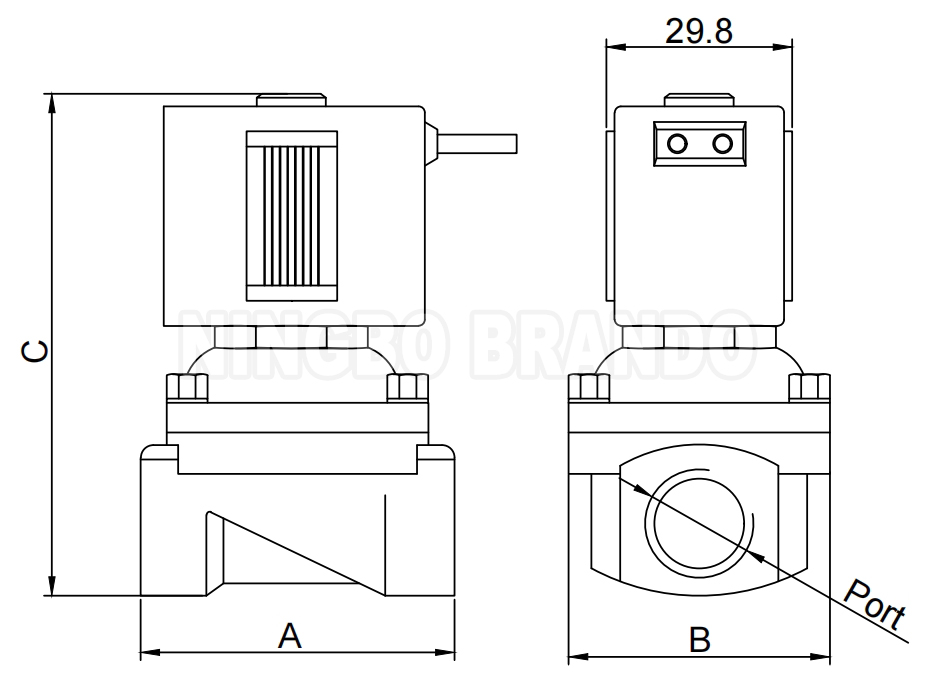

Main Dimension:
BRANDO Model
Port
A
B
C
VX2260-03
(VX2120-10)
3/8''
40
50
80
VX2360-03
(VX2130-10)
3/8''
40
50
80
VX2360-04
(VX2130-15)
1/2''
48
66
110
