Semi-Automatic Sanding Machine

8 month ago
0 0
Product details

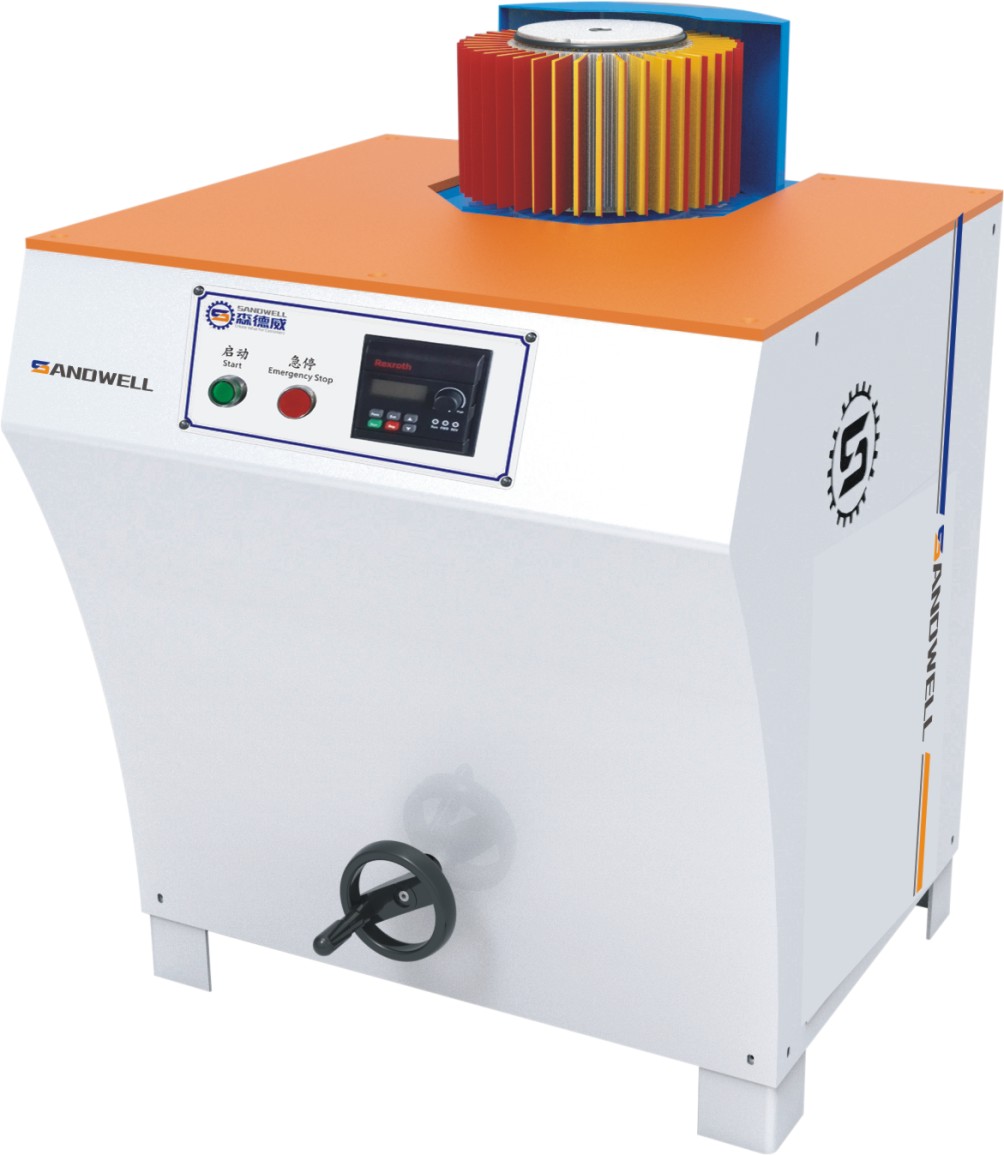

Single head edging machineSXP-W1

Single side sander


Characteristics of the equipment:

  • Single-head edge sander is a simple, multi-functional vertical edge sander designed to improve productivity.
  • It is equipped with a vertical 100 mm sand brush roller, which can be used as a direct sand roller or a spiral roller. Different numbers of sand cloth strips are installed according to the need of use. It can be equipped with various sand cloth silk rollers, brown brush sand rollers, abrasive silk rollers, cloth cotton linen rollers, etc.
  • The best sanding effect can be achieved by adjusting the speed of the converter.
  • Various grinding heads can be installed to meet the wider application requirements.
  • A 100 mm (4 inch) dust port can keep the dust and clean working environment.

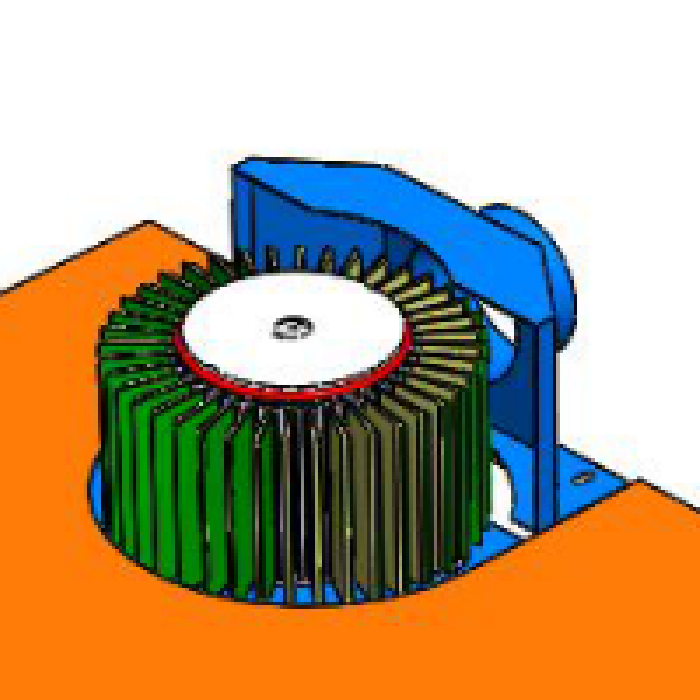

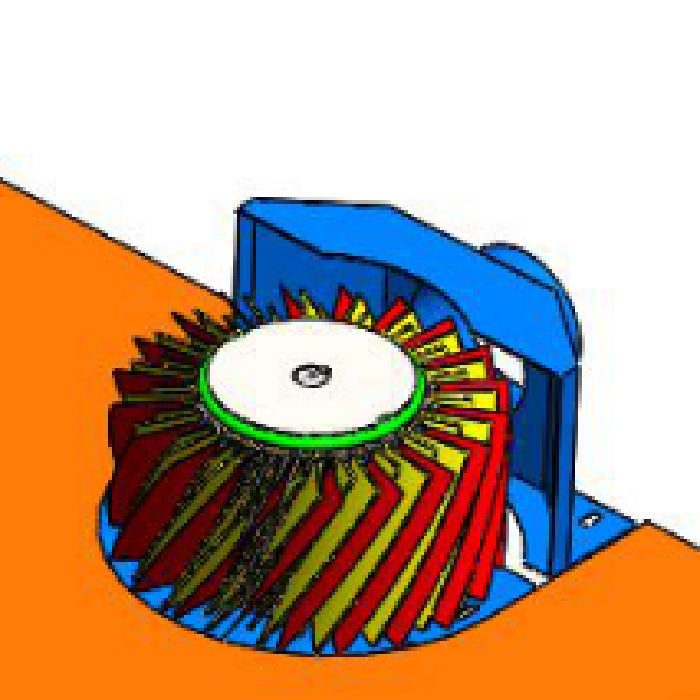

sanding machine part     sander machine part


Technical parameters:



Equipment Model

SXP-W1

Workpiece width

201000 mm

Minimum length of workpiece

400 mm

Workpiece thickness range

5 100 mm

Motor power

1.5KW

Brush Length of Sand Roller

1 group 60×300mm

Spiral Roller Sisal Length

1 group 70×300mm

Helical Roller Sisal Length

1 group 60×300mm

Spiral Roller Sisal Length

1 group 50×300mm

Vacuum Cleaner

Φ123×1pcs

Total power

1.5KW/380V 50HZ

Shape size

800×860×850mm

Weight

138kg
