Product details

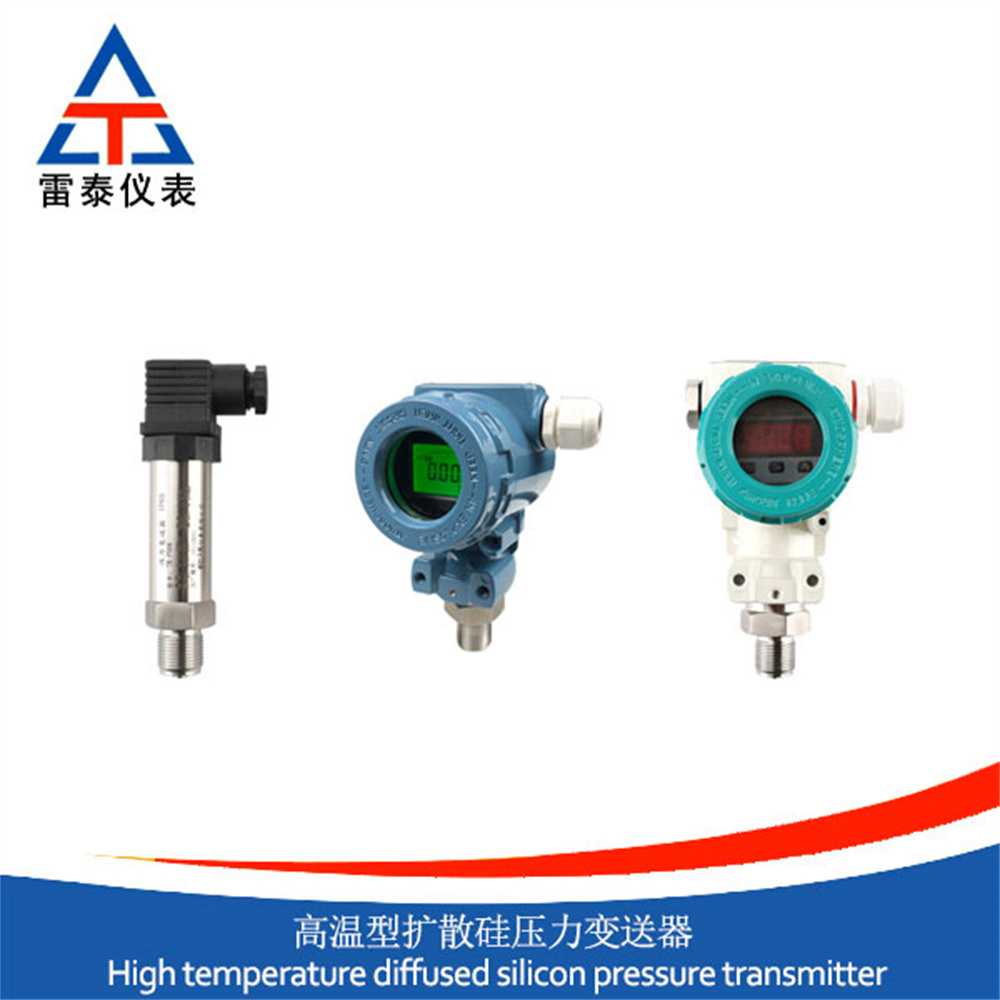

The high-temperature diffusion silicon pressure transmitter adopts high-precision and high-stability high-temperature pressure sensor components from internationally renowned companies. It is a pressure sensor that uses a high-temperature-resistant pressure core or sapphire core as the pressure measurement raw material. It passes through a high-reliability amplification circuit. And precision temperature compensation, convert the absolute pressure or gauge pressure of the measured medium into standard electrical signals such as 4~20mA, 0~5VDC, 0~10VDC and 1~5VDC. High-quality sensors, fully sealed and welded packaging technology, and perfect assembly processes ensure the product's excellent quality and optimal performance. This product has a variety of interface forms and lead methods, which can meet the needs of customers to the greatest extent. It is suitable for use with various measurement and control equipment in high-temperature industrial environments. It is also widely used in industry. It collects pressure signals at the pressure measuring parts of some high-temperature steam and high-temperature fluid pipelines.

Application scope of high temperature resistant diffusion silicon pressure transmitter:

It is used in water plants, refineries, sewage treatment plants, building materials, light industry, machinery and other industrial fields to measure the pressure of liquids, gases and vapors.

Technical parameters of high temperature resistant diffusion silicon pressure transmitter:

Measuring medium	Gas, liquid, oil and other media compatible with 316L
Measurement form and range	Gauge pressure (G)---very large (0～60)MPa, very small (0～10)KPa
	Absolute pressure (A)---very large (0～60)MPa, very small (0～10)KPa
	Negative pressure (B) --- (-0.1～60)MPa, very small (-5～5)KPa
Accuracy level:	0.1, 0.25, 0.5
Overload capacity:	2 to 5 times the measuring range
Long term stability:	Less than 0.3%FS/year
Power supply:	15～36 VDC (calibrated voltage 24VDC)
output signal:	(4～20)mA (two/three-wire system), (0～10/20)mA (0～5)V, (1～5)V, (0～10)V
Display method:	Pointer meter or LCD liquid crystal display optional
calibration:	Adjust the zero point and range by adjusting the precision potentiometer
Operating temperature	Liquid medium: (-20～200)℃ Gas medium: (-20～300)℃ Compensation temperature: (-20～300)℃
Process connection:	M20×1.5 external thread or user specified
Isolation diaphragm material:	316L stainless steel
Sensor interface material:	1Cr18Ni9Ti
Shell material:	Aluminium Alloy
Protection level	IP65

Our main products are: Electromagnetic flowmeter, Energy meter, Vortex flowmeter, Pressure transmitters, Level gauge, Magnetic flap level gauge.
