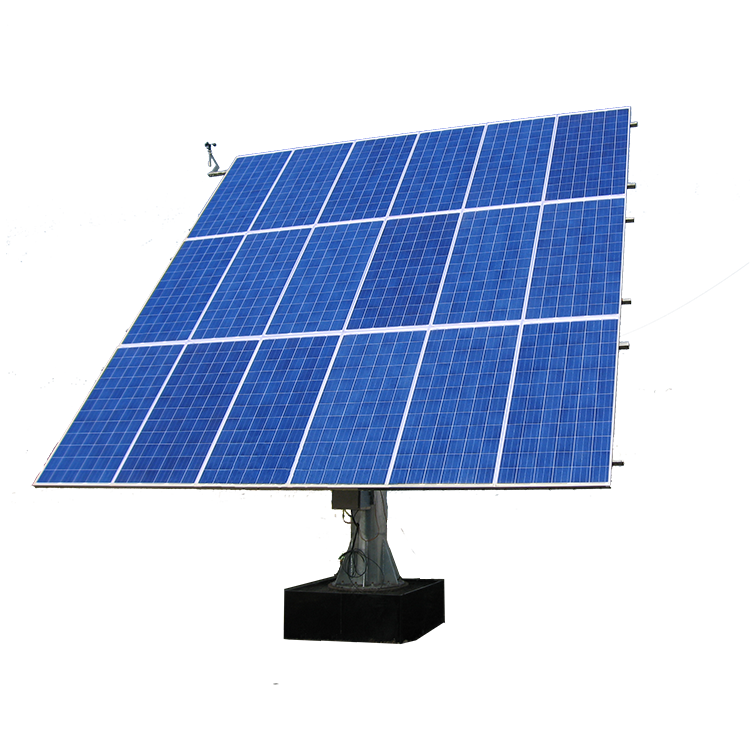

Dual Axis Solar Tracker system

Dual Axis Solar Tracker system

8 month ago

1 0

Hebei Shuobiao New Energy Technology Co., Ltd.

 10 month year

Product details

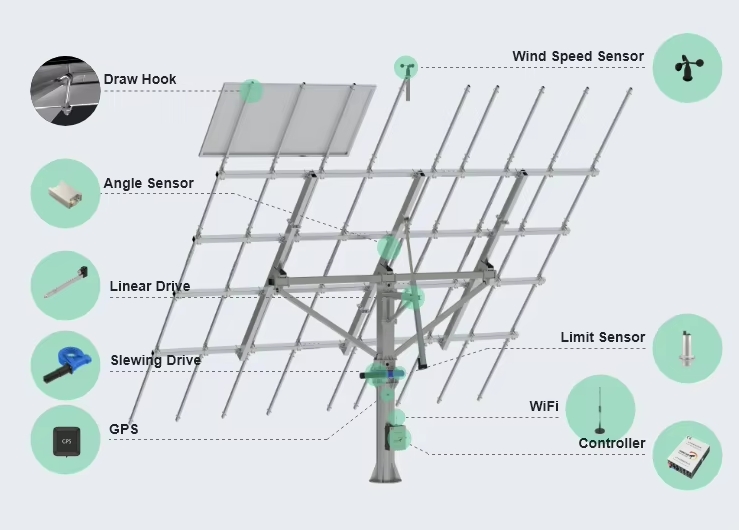

Tracking Structure
Tracking Technology	Dual Single Axis Tracker	System Voltage	1000v/1500v

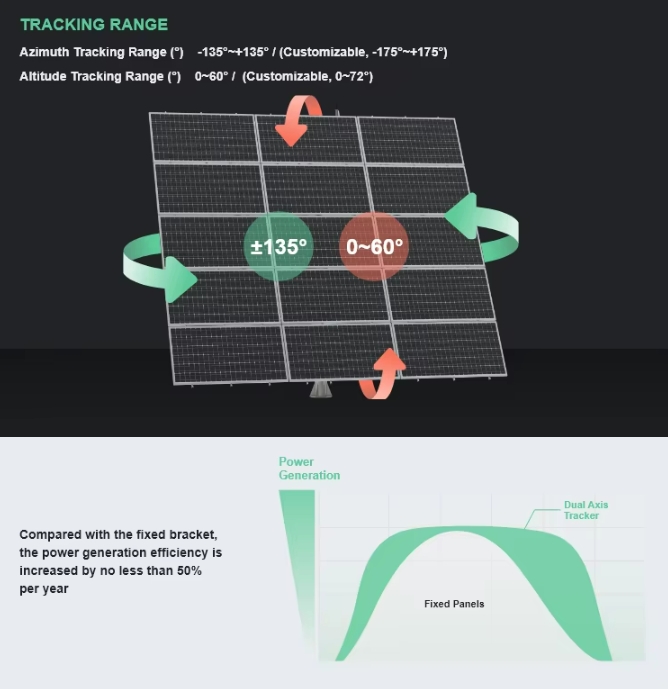

Tracking Range	X-Axis ±120°, Y-Axis 0-60°	Working Wind Speed	18m/s (Customizable)
Max Wind Speed ( at Stow Position)	35m/s (ASCE 7-10)	Modules Per Tracker/tables	≤40 In Portrait (Customizable)

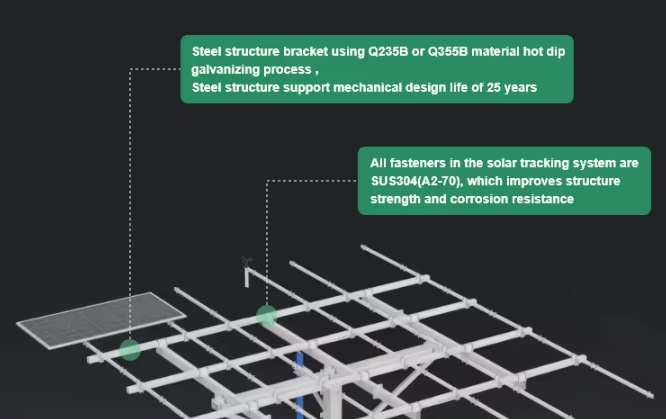

Principal Materials	HDG Q235B/ Q355B/ ZAM	Mean Coating Thickness	≥65 um
Drive System	Slewing Drive	Foundation Type	Concrete Foundation
Control System
Tracking Control	MCU	Tracking Mode	Closed Loop Time Control +GPS
Tracking Accuracy	<1°	Communication Interface	Wire/Zigbee
Powder Acquistion Mode	External Supply/Self-Powered	Communication Protocol	Modbus RTU
Auto Stow At Night	Yes	Auto Stow During High Winds	Yes (response after 10 seconds)
Optimized Backtracking	Yes	Protection Degree	IP65
Working Temperature	`-30°~60°	Anemometer	Yes
Power Consumption		0.3KW/H per day

1.Tracking the operation of the support control system, how to connect the computer to check?

There is no need to operate the tracking system. Our tracking bracket has light sense and automatically tracks with the sun. The power generation data can be viewed by downloading the inverter APP.

2.How the tracking system receives signals and how to control the brackets to drive panel rotation？

The tracking system rotates with the latitude and longitude of the sun according to the light sensor, and the main power

source is rotary drive.

3.Can 4G communication be added (remote control and monitoring of power generation data)?

The power generation data can be downloaded from the inverter app for detection. The tracking bracket is automatic tracking and cannot be controlled remotely. When encountering strong wind, it will automatically protect itself with the wind direction leveling.

4.What is the spacing between the dual solar tracker columns? How many photovoltaic panels can it fit? What is the floor area?

The tracking distance should be calculated according to the longitude and latitude of the sun. Which region can you provide me? I will give you a plan within 24 hours.

5.How long is the rotary drive warranty? How long service life will it last? What brands do you have?

The tracking brackets structure is guaranteed for 10 years, the electrical quality is guaranteed for 3 years, and the service life is 25 years. The driving force is that our long-term partners are all first-tier brands in China. Solar Tracking System, Solar Mounting System, Solar Panel,Ground Solar Mounting.

6.How much difference does the installation capacity make in the case of the same area compared with the single shaft support?

The single axis solar tracker power station occupies 1.5 times of the fixed area, and the dual axis solar tracker power station occupies more than 2 times.

7.What is the maximum Angle range for dual axis solar tracker?

Accuracy: ±0.5°

Horizontal rotation Angle: 360°

Pitch Angle: 180°

Power supply to the controller: DC 12V

Motor power supply: DC 12V
