Product details

1.7225 42CrMo4 cold drawn alloy steel round bar(42CrMo4+c)

1.7225 42CrMo4 cold drawn alloy steel round bar(42CrMo4+c) steel bar is made from hot rolled steel bars or wire rod. Depend on the ship of the mould, cold drawn steel bar can can be classified as cold drawn steel round bar, cold drawn steel square bar, cold drawn hexagonal steel bar, cold drawn flat bar and other shapes of cold drawn steel bar or profiles.

In order to meet the personalized and professional requirements of customers, the company built cold drawing, annealing, normalizing, quenching and tempering production lines and finishing lines such as peeling, fine grinding and chamfering in March 2016. In order to ensure stable product quality, Equipped with complete testing equipment and testing equipment. Utilize our strong production capacity to continuously meet customer needs.

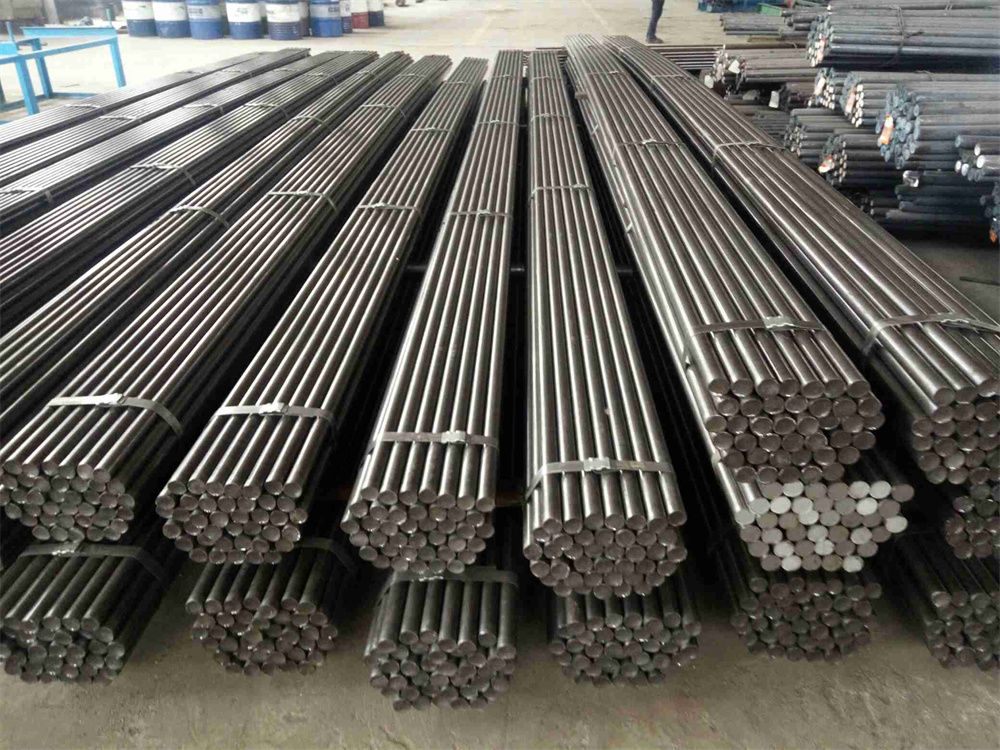

CD steel round bar Cold drawn bar

Product Description

1. 1.7225 steel bar chemical composition:

Materail	Chemical Composition %
DIN	C	Si	Mn	S	P	Cr	Mo
1.7225	0.38-0.43	0.15-0.35	0.75-1.00	0.035 max	0.035 max	0.80-1.10	0.15-0.25

2. 1.7225 steel mechanical properties:

Mechanical Properties
Yield Strength (MPa)	Tensile Strength (MPa)	Elongation	Reduction of area	AKV (J)
930 min	1080 min	12% min	45% min	63 min

3.Our advantage of cold drawn steel bars：

1.Precision size tolerance(h8, h9,h10, h11)
2.Good roundness
3.Good straightenss(0.2mm/m, 0.5mm/m, 1mm/m, 2mm/m)
4.Suitable sued mechanical properties (We can do heat treated according to final usage)
5.Good roughness to bright surface ( 0.4um, 0.6um, 0.8um)
6.More processing (Straightening, polishing, grinding)
7.Machinability is improved leading to a better tool life
8.No brittle, UT testing
9.Professional technical service
10.Competitive price

11.Fast delivery

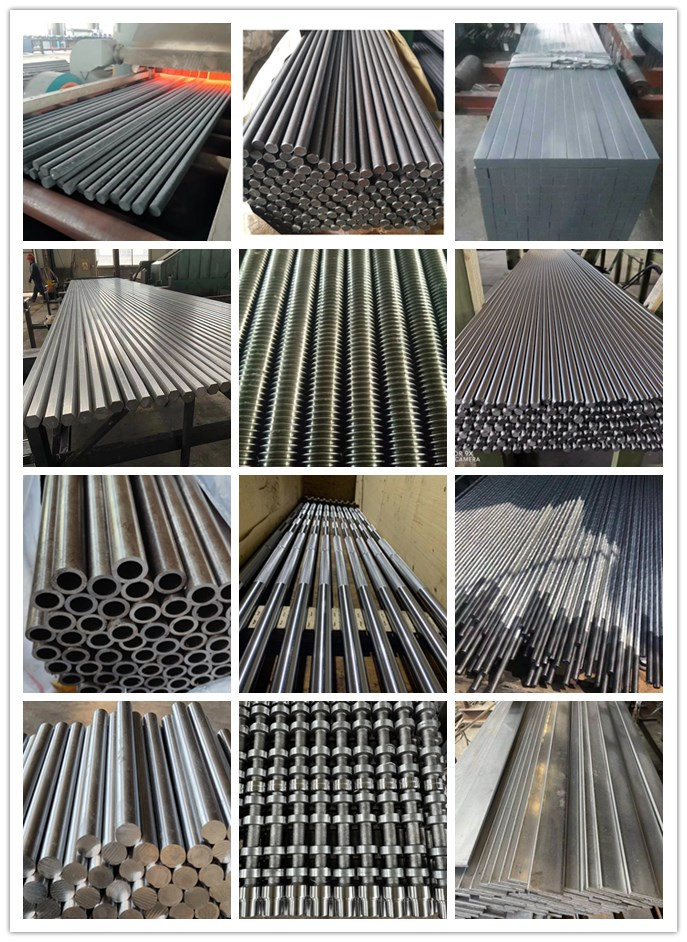

Other states and Applications

1.7225 hot rolled Round bars in other states can also be produced:

1.7225 42CrMo4 hot rolled alloy steel round bar
1.7225 42CrMo4 cold drawn alloy steel round bar(42CrMo4+c)
1.7225 42CrMo4 turned, ground and polished steel round bar(42CrMo4+sh)
1.7225 42CrMo4 quenched and tempered steel round bar(42CrMo4+qt)
1.7225 42CrMo4 annealed steel round bar(42CrMo4+a)
1.7225 42CrMo4 normalized steel round bar(42CrMo4+n)
1.7225 42CrMo4 cold drawn + quenched and tempered steel round bar(42CrMo4+c+qt)
1.7225 42CrMo4 quenched and tempered + turned, ground and polished steel round bar (42CrMo4+qt+sh)

1.7225 steel can be used for high strength stud bolt, threaded rods, wind power bolt, prestressed anchor bolts, post stressed anchor bolt, steel tie rod, tie bar, tension rod, tension bar etc. Shaft, axle shaft, crankshaft, shaft for sleeve, linear shaft, pump shaft, rotor shaft, sensor shaft, spline shaft, drive shaft, mandrel shaft, transmission shaft, screw rod etc. CNC machines, precision CNC machines etc. Ejector pins and Ejector rods.

Packages:

In order to ensure that the surface of the product is smooth and defect-free, it is first packaged with plastic film to prevent corrosion during shipping, and then packaged with non-woven fabric or thick woven bag, or if the surface quality of the product is more stringent, we can use wooden boxes for transportation.

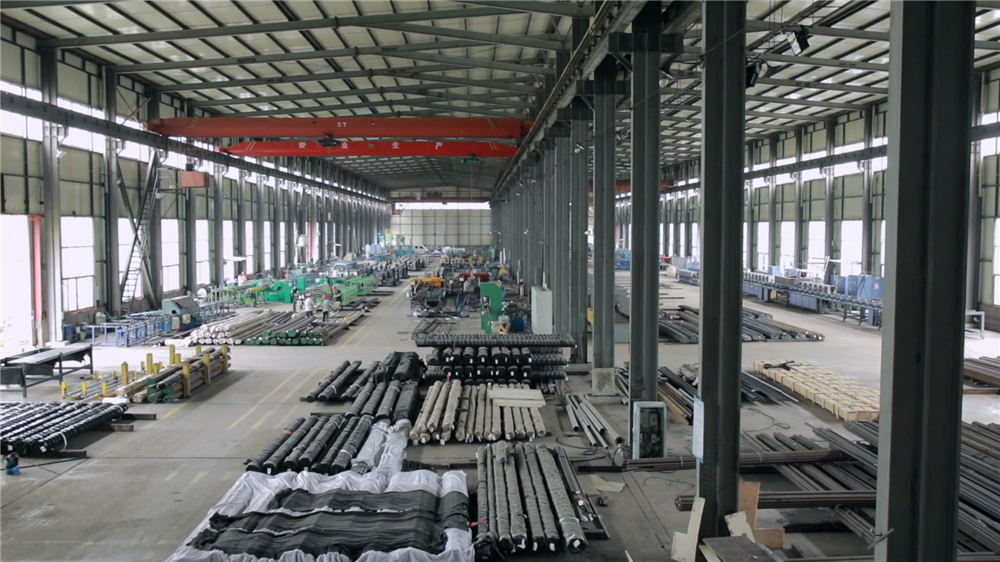

Our Factory And Inspection:

In March 2016, in order to meet the performance requirements of more customers, the company built a finishing line production line such as cold drawing, annealing, normalizing, tempering, peeling, fine grinding, chamfering, etc., equipped with complete experimental equipment and testing. equipment to ensure stable product quality. Strong production capacity, and constantly meet the personalized and professional requirements of customers.

mechanical equipment

mechanical equipment2

If you are a trading company, we'd like to supply you the most competitive resources, the most suitable quality products, the techanical support to communicate with the end users. If you are a factory, we'd like to communicate with you on your technical specifications, we can supply you free samples for your trial testing or produce small trial order for your production. We aim to supply our customers teel solutions to decrease their cost and increase the commercial value. Our full sets of production facilities and complete testing equipments will support our aim.
