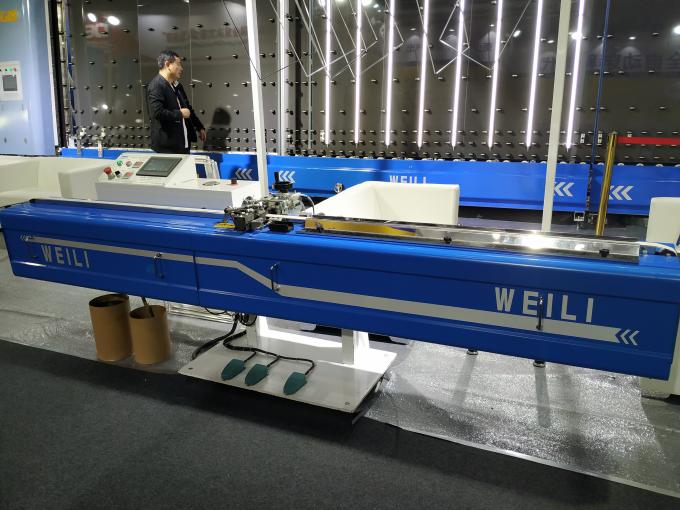

WL2000 Automatic Butyl Extruder Machine
WL2000 Hot Melt Butyl Extruder machine with 5.7inches man-machine interface and PLC control system. It adopt Germany MAXIMATOR Pneumatic and hydraulic supercharging system,machine can run 2milion times and much more stable. It is free of lubrication system.Hot Melt Sealing Machine is one necessary machine to product double glazing glass.
1 Butyl extruder can process frames from 6-27mm width.
2 The feeding nozzles can be positioned automatic to deliver uniform sealing.
3 Pneumatic operation of butyl process is controlled by a PLC that electronically regulates the temperature of the butyl heaters.
4 A timer enables the preheating of butyl ahead of the start of operation.
5 The height adjustment is available according to the frame size.
6 The nozzle width shall be controlled by the pneumatic and hydraulic parallel method.
7 Conveyor speed can be adjusted with 5 conveyor speed.
8 Possible to control the length of butyl application and monitoring current production quantity on the touch screen.
9 Adopt Germany pneumatic pump,brand Maximator.
10 The machine has sealant shortage alarm system.
11 The maximum amount of glue is 14L.
Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
| Max glass size | 2500x3500mm |
| Min glass size | 250*250mm |
| Glass thickness | 3-19mm |
| Sealing speed | 5-30m/min |
| Spacer width | 6-25mm |
| Conveyor speed | 0-25m/min |
| Power supply | 3.75KW |
| Dimension | 3000(L)x600(W)x950(H)mm |
| Butyl volume | 14L |

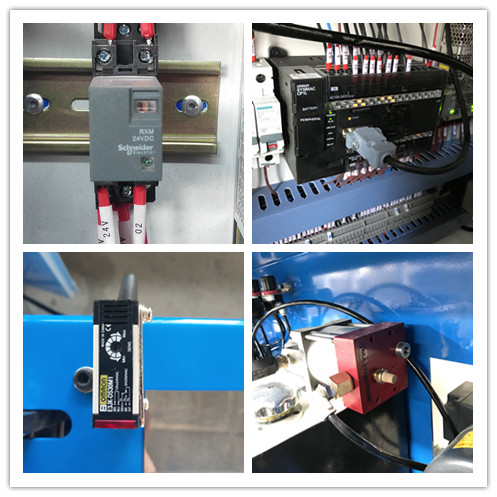

Main components :
| No. | Name | Brand | Country |
| 1 | Low-voltage electrical component | SCHNEIDER | FRANCE |
| 2 | PLC | OMRON | JAPAN |
| 3 | Touch screen | OMRON | JAPAN |
| 4 | Transducer | OMRON | JAPAN |
| 5 | Temperature controller | OMRON | JAPAN |
| 6 | Approach switch | AUTONIC | KOREA |
| 7 | Photoelectric switch | AUTONICS | KOREA |
| 8 | Pneumatic pump | MAXIMOTOR | GERMANY |
| 9 | Hydraulic solenoid valve | AUTONICS | KOREA |
| 10 | Air parts | AIRTAC | TAIWAN |
| 11 | Air-hydraulic pressure cylinder | HUAYING | CHINA |
| 12 | Motor | DPG |
CHINA |
Our main components are all used world-renowned brands ensure that equipment operates more stably.
Other Items of our Company:
1 Automatic Buytl Extruder Machine
2 Hot Melt Sealing Machine
3 Automatic Desiccant Filling Machine
4 Manual Desiccant Filling Machine
5 Automatic Aluminum Spacer Bar Bending Machine
