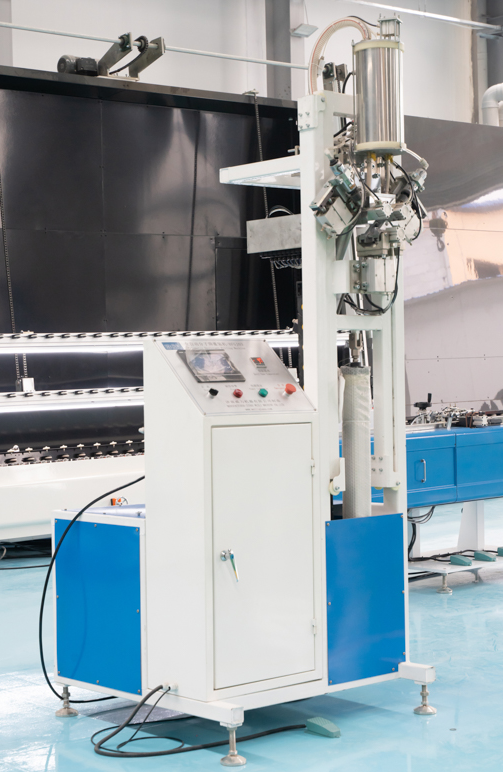

Automatic Dessiccant Filling Machine
Automatic Desiccant Filling Machine is one machine to fill desiccant to Aluminum spacer bar.It can adsorb the moisture of the double glazing and keep double glazing dry and is one indispensable machine for double glazing processing.Our this Automatic Desiccant Filling Machine can drill hole,fill desiccant and seal butyl at one time.
Functions
1. Multifunctional system for drilling, filling and closing two holes drilled in two adjacent frame legs.
2. The machine automatically do the three steps step by step.
3. The machine automatically adjusts to the width of the respecctive spacer frame.
4. The height of the single filling head can be continuously adjusted to different frame sizes.
5. Anelectronic control device is fitted for reliable and optimal filling.
6. Spacer frames are loaded manually. By simply turning the spacer frame 180 degrees, all four frame legs can be filled with desiccant.

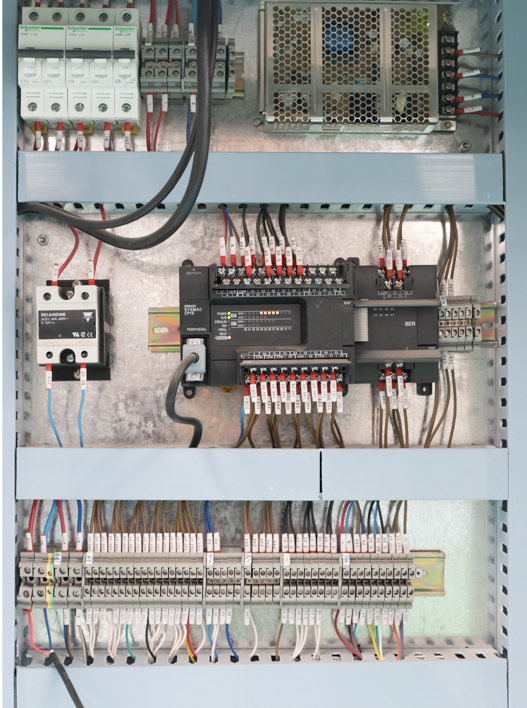

Main Electrical Components
|
No. |
Product Name |
Brand |
Origin |
|
1 |
PLC |
OMRON |
JAPAN |
|
2 |
Approach switch |
AUTONICS |
KOREA |
|
3 |
Magnetic switch |
AIRTAC |
TAIWAN |
|
4 |
Foot switch |
CNTD |
CHINA |
|
5 |
Temperature controller watch |
OMRON |
JAPAN |
|
6 |
Touch screen |
EIEW |
CHINA |
|
7 |
Low-voltage electric component, like relay, breaker |
SCHNEIDER |
FRANCE |
|
8 |
Pneumatic components, like solenoid valve, air cylinder |
AIRTAC |
Taiwan |
Photos
Welcome to visit us - WEILI Glass Machine!
Other Items of our company:
1 Manual Desiccant Filling Machine
2 Automatic Aluminum Spacer Bar Bending Machine
3 Semi-auto Aluminum Spacer Bar Bending Machine
4 Automatic Butyl Extruder Machine
5 Hot Melt Glue Sealing Machine
