Double Track Drilling Fluid Vibrating Screen/Shale Shaker

Drilling fluid shale shaker is the primary equipment of drilling fluid solid control system and one of the most important solid control equipment in drilling operation system. The shale shaker from us include linear motion shale shaker,Balanced elliptical Motion shale shaker, Frequency conversion translational elliptical shale shaker and double track shale shaker. In addition, we can also provide dual screens and three screens of the above various shale shakers according to user needs.

Characteristics and features

1.Use well-known short motor with longer service life.
2.The linear motion and Balanced elliptical Motion are switched to meet the needs of different working conditions.
3.Polyurethane frame screen is used, and its service life is twice longer than others.
4.Use the wedge block mechanism to compress the screen, which is more convenient to replace the screen.
5.The hydraulic mechanism is used to adjust the inclination of the screen box, which is simple to maintain.
6.Single, double, triple and quadruple screens can be provided for customers.

Specifications and parameters



No.

Item

Technical Parameter

1

Model

S-1

S-2

S-3

S-4

2

Overall parameters

Maximum overall dimension

2900*1620*1250mm

3150*1620*1250mm

2900*1620*1250mm

3150*1620*1250mm

3

Weight

2600kg

2750kg

2650kg

2780kg

4

Performance

Shaker Motion

Linear motion + Balanced elliptical

5

Double amplitude

Linear Motion≥6mm
Long Axis ≥5.5mm
Short Axis ≥2mm

Linear Motion≥5.8mm
Long Axis ≥5.3mm
Short Axis ≥2mm

Linear Motion≥6.5mm
Long Axis≥5.8mm
Short Axis  ≥2mm

Linear Motion ≥6.5mm
Long Axis ≥5.8mm
Short Axis  ≥2mm

6

Vibration angle

45°

7

Deck angle

0° — +5°

8

Throw index

Linear Motion:6g      Balanced elliptical:5.5g

Linear Motion:6.4g    Balanced elliptical:5.7g

9

Motor

 Power

2 x 1.72kw+ 1 x 0.75kw

2 x 1.92Kkw + 1 x 0.75kw

10

 Speed

1450 r/min

11

Frequency

50HZ

12

Screen mesh

Type

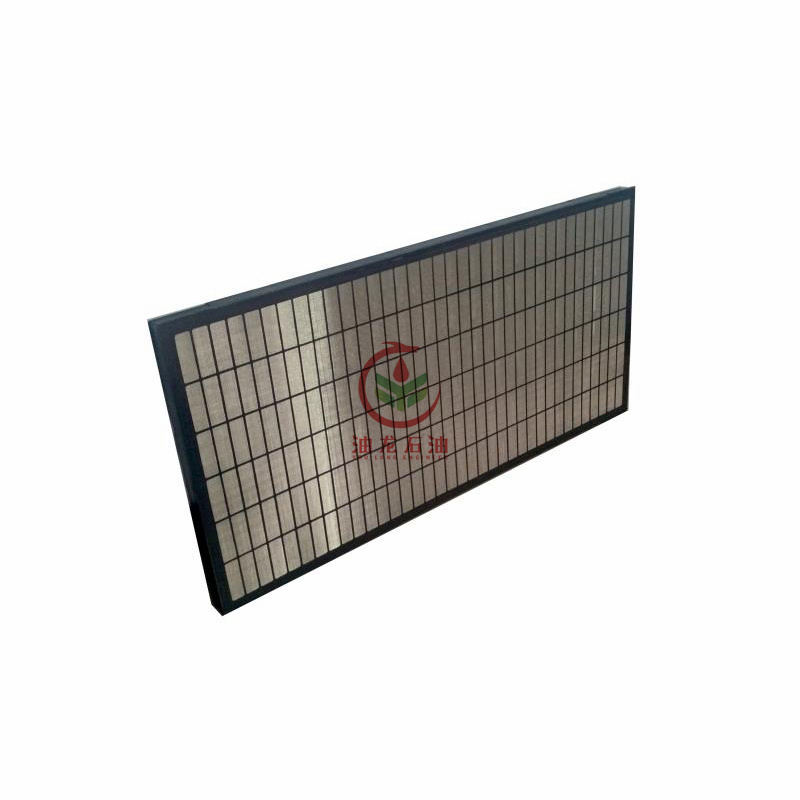

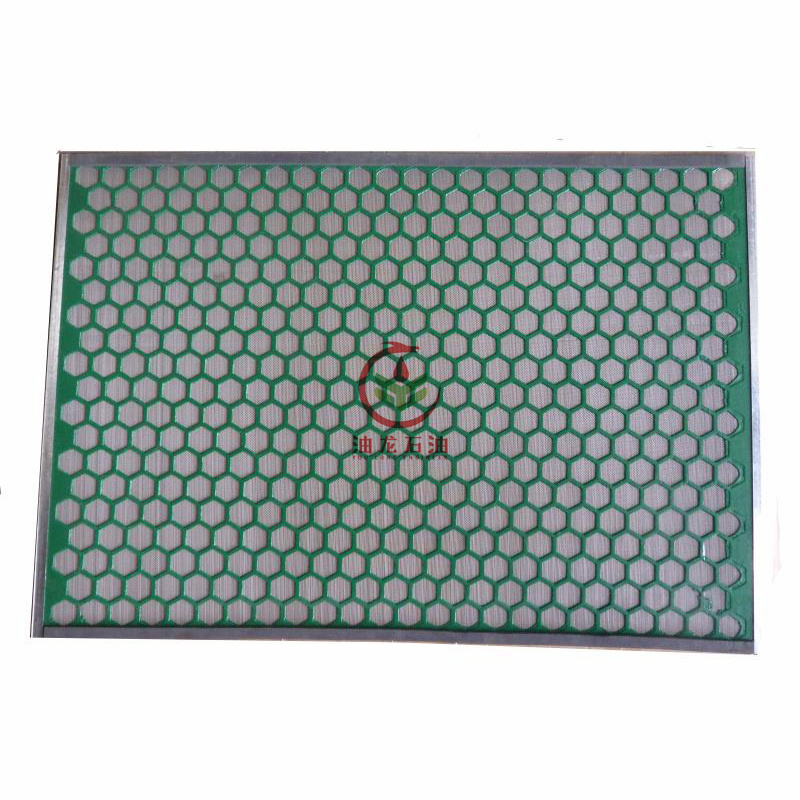

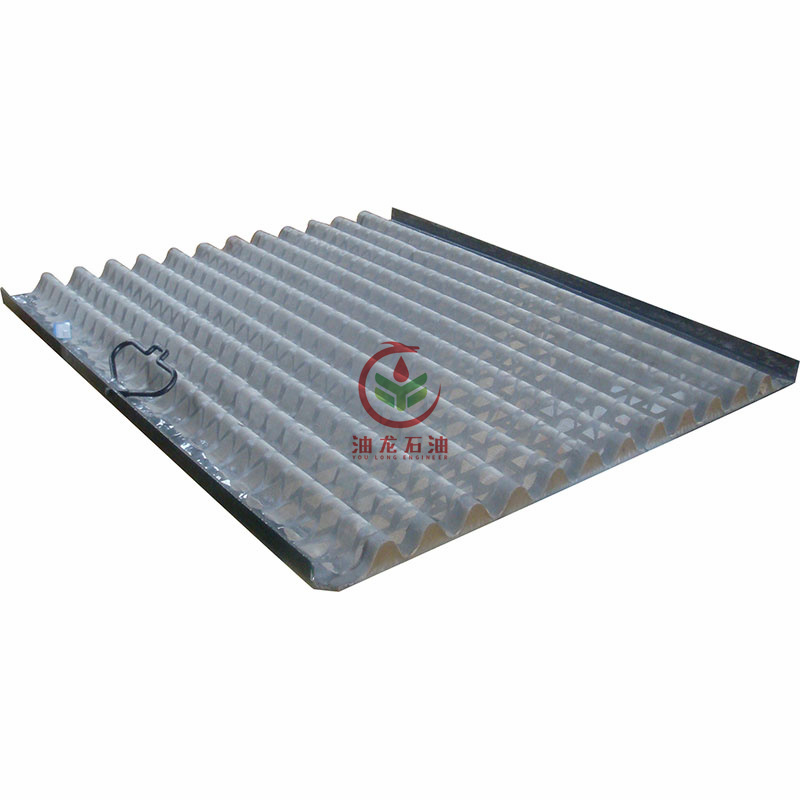

Polyurethane frame screen

13

Mesh

20-200um

14

Sieving area

2.73㎡

3.41㎡

2.73㎡

3.41㎡

15

Screen size

1165*585MM    4pcs.

1165*585MM    5pcs.

1165*585MM    4pcs.

1165*585MM    5pcs.

16

Screen mounting

Wedge block

17

Capacity

60L/S

65L/S

60L/S

65L/S

18

Vibration damping

Rubber spring / metal spring



Particulars

Modular Screen JpgVibration Electrical Machinery JpgHydraulic Dashpot Lifting Device Jpg

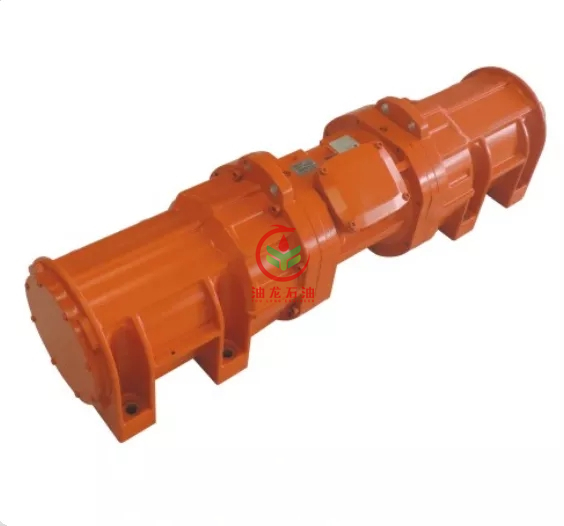

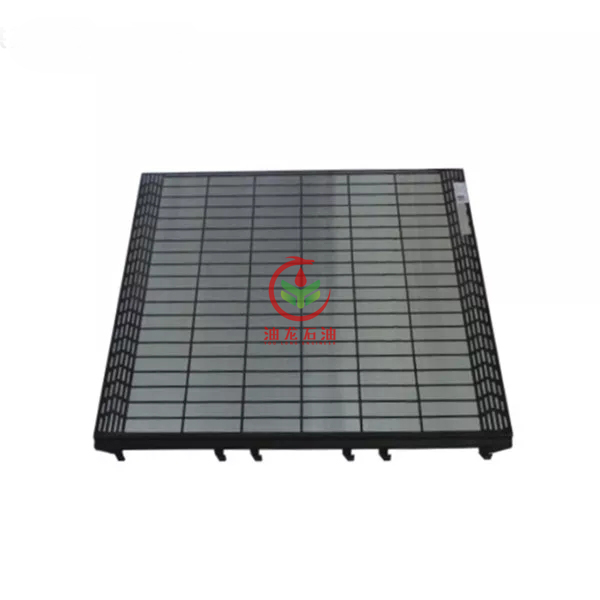

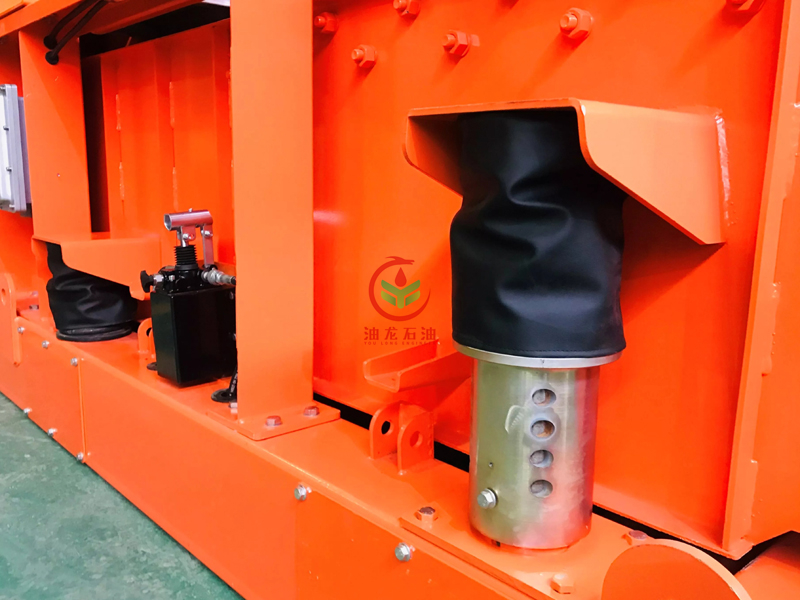

     Modular screen                          Vibration electrical machinery               Hydraulic dashpot lifting device

Successful Project

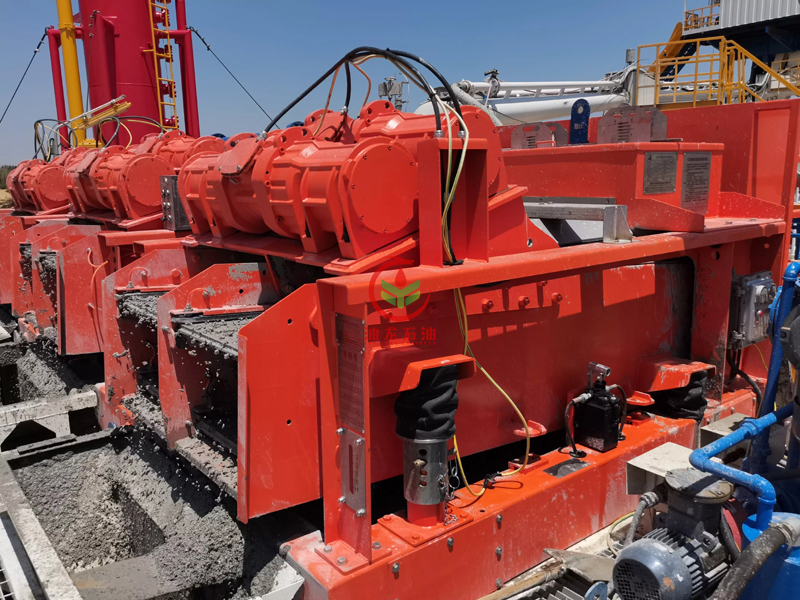

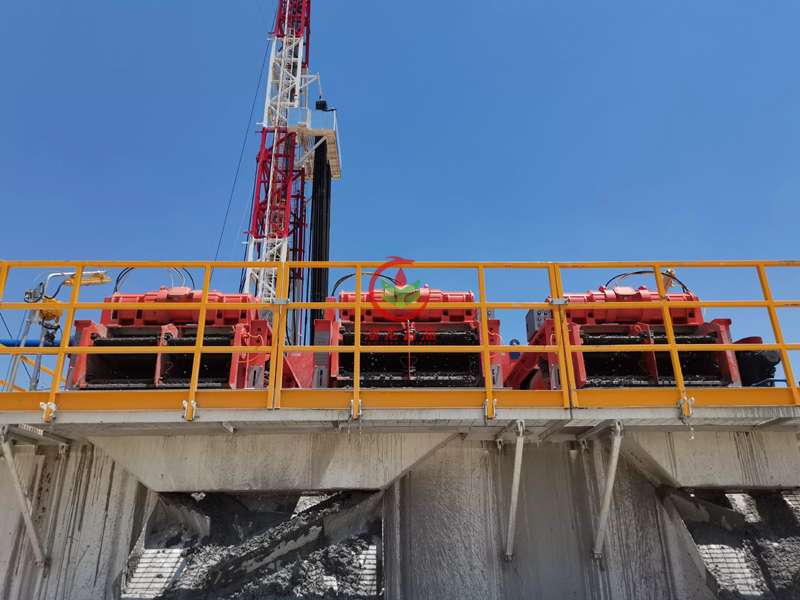

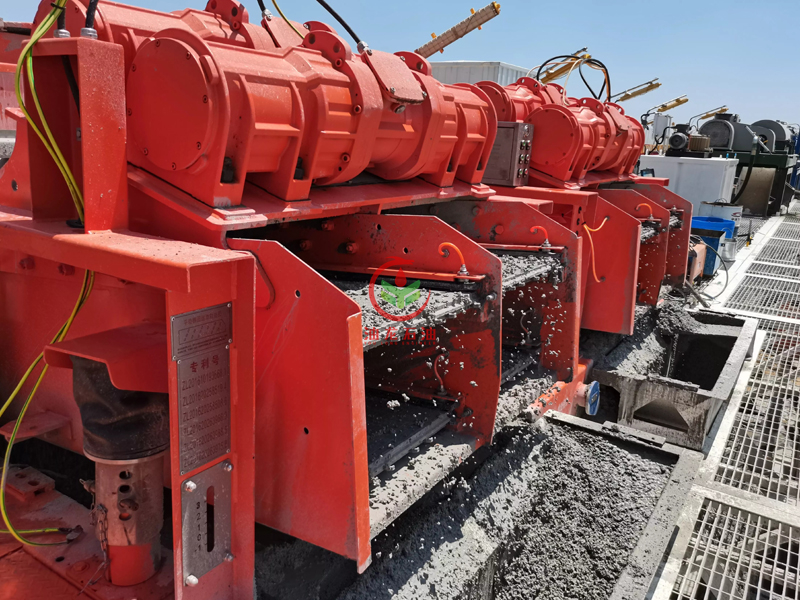

Project In Thailand JpgProject In India JpgProject In Russia Jpg

FAQ

Q1. Why choose us ?

1. Competitive price: our company is a professional supplier of Cementing and Fracturing Equipment, Gate Valve and Wellhead Christmas Tree, Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment, Drilling Rigs and Work over Rigs Matching Equipment etc. We have competitive prices and best resources in advanced production line and testing equipment, designed and manufactured according to certification of API, ISO, GOST, etc.

2. Fast delivery: the delivery time of all our machines is very fast, especially the popular Plunger Pumps and Mud Pumps, Flow line Products.

3. Warranty: after sales service is very important for construction machinery. Our company provides warranty for all machinery purchased from us. During the warranty period, we will accurately confirm the damaged parts in the shortest time and send the replacement parts to the customers by DHL or air freight in the most efficient way.

Q2. How can you guaranteed quality?

On the basis of more than 40 years of manufacturing experience,more than 30 years of export experience, high quality products with competitive price, better understanding in Chinese market, High quality after-sales service, we hope to establish business relations with your company.

Q3. Can you satisfy my special requirement?

As the manufacturer, Youlong will review the special requirement and recondition it as per request (if possible).

Q4. How about your technology after-service team available?

We have postgraduated engineer and repair machines team, and worked inconstructions machine area almost 20 years. We could give you service support on line on time, or send to Machinican to support on necessary.
