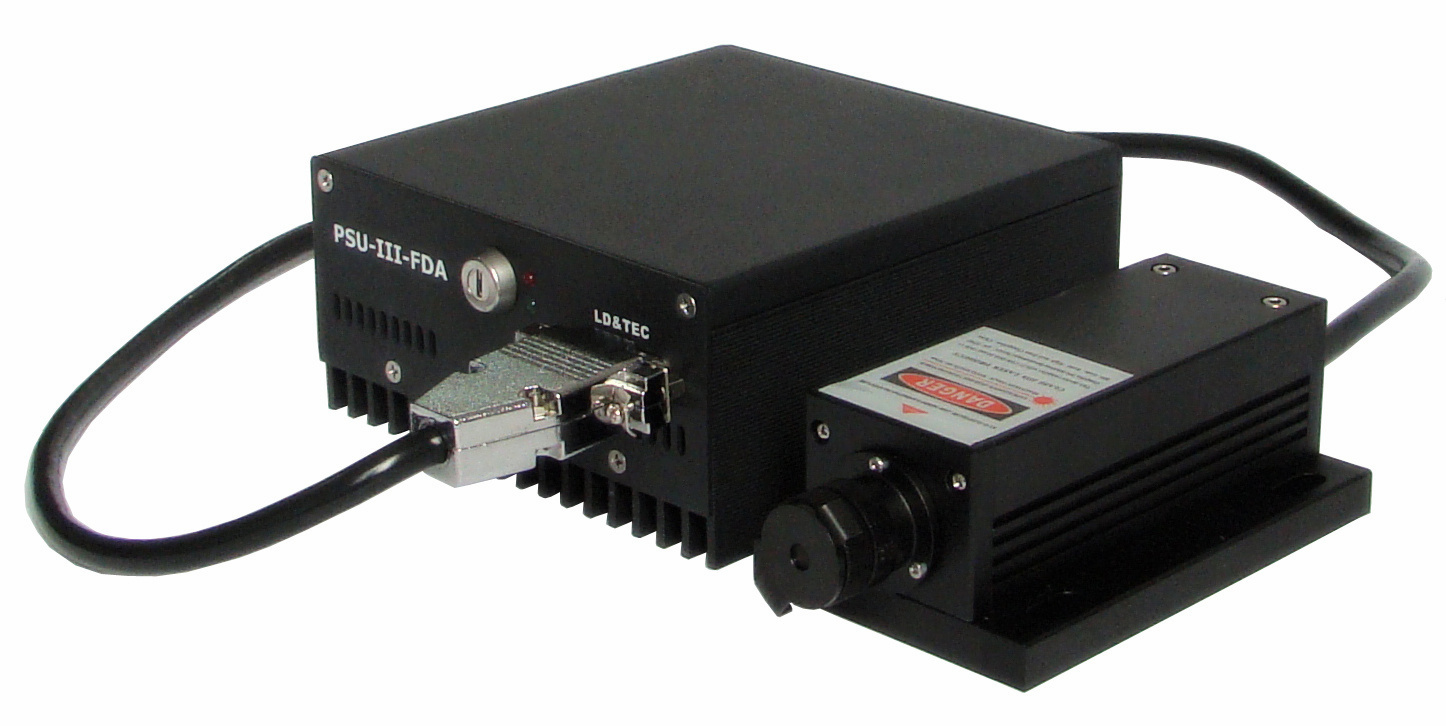

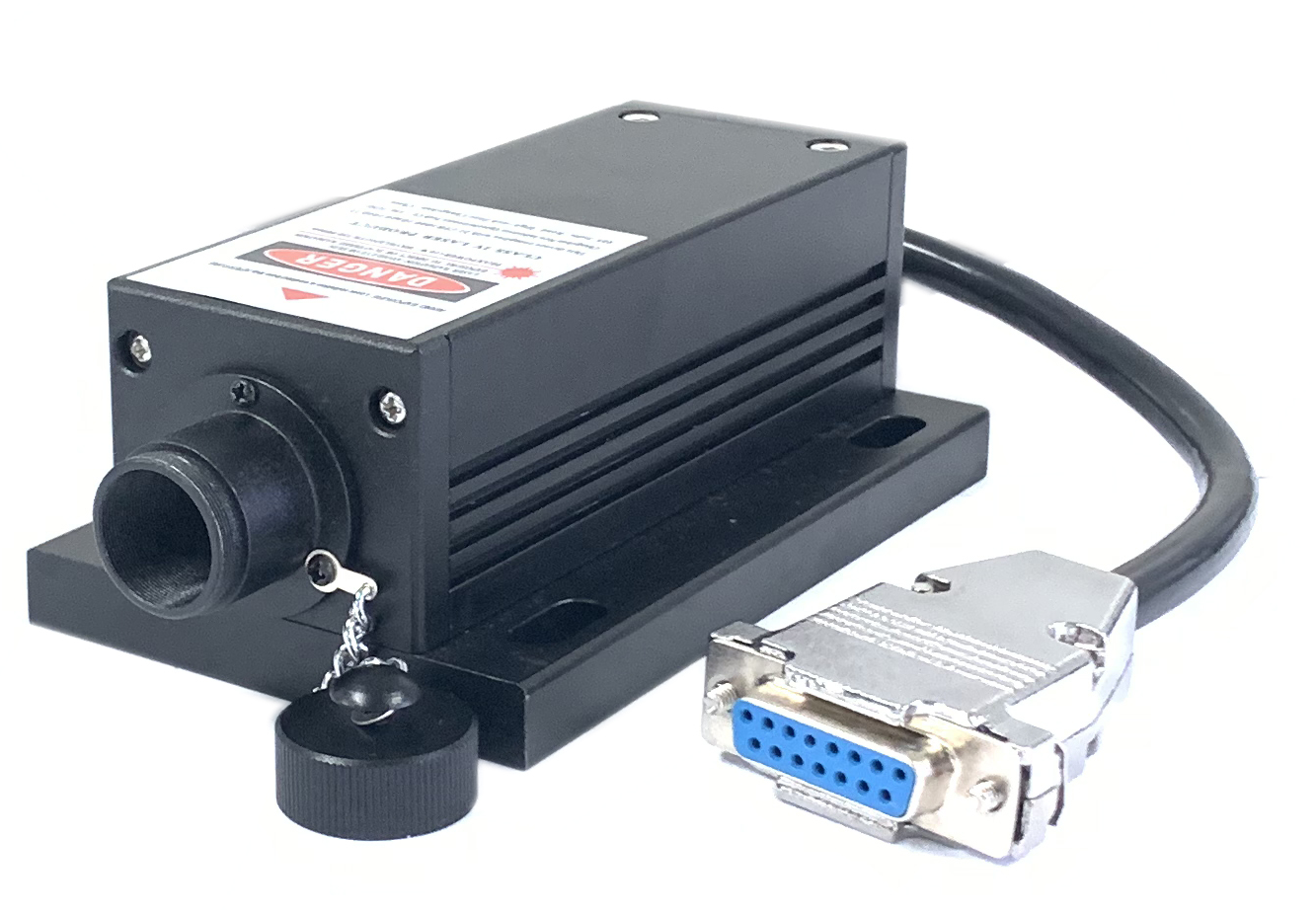

Green lasers include DPSS laser (Diode pumped solid state Green Laser), Diode laser and pulsed laser. The diode-pumped green lasers are based on our proprietary coupled-cavity laser technology. This patented laser technology allows our green lasers to operate in a single longitudinal mode and TEMoo mode with low amplitude noise and low power consumption in a compact laser housing. If you need special configurations of green lasers, other special wavelength of the green laser or higher power green laser up to 5 W, please contact us directly.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High power laser, optical measuring equipment, Single longitudinal mode laser, laser processing equipment, High energy laser,machine vision and the photoelectric detection equipment.
111Features:
|
 |
Specifications
Wavelengths (nm)
505
510
514.5
520
Long Coherent (mW)
/
/
40
10
Narrow Line width (mW)
/
/
40
10
Low noise (mW)
80
30
50
800
Single mode (mW)
80
30
50
50
Max. power (mW)
80
30
50
10W
Beam divergence, full angle(mrad)
0.5 to 2.3mrad depending on output power and wavelength
Transverse mode
TEM00, Near TEM00 or Multi-mode depending on output power and wavelength
Power stability, rms( 4 h)
<1%, <2%, <3%
Noise of amplitude(rms, 20Hz~20MHz)
<0.5%, <1%(for Low Noise laser); <3%
Spectral linewidth (nm)
<0.06nm,/0.03nm optional (for Narrow Line width laser)
Coherence length (m)
>1m(for Long Coherence Length laser)
Polarization ratio
>50:1, >100:1 and Horizontal+Vertical depending on output power and wavelength
