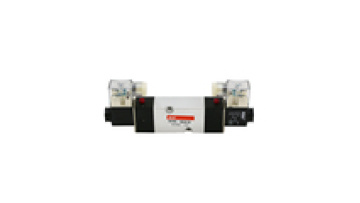

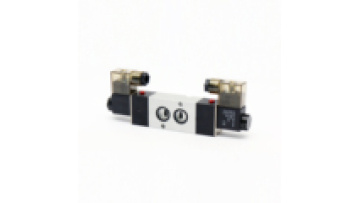

4V320-08 Pneumatic Directional Control Valve 5/2 Way 24VDC
2 position 5 way pneumatic solenoid valve usually has a single solenoid valve and a double solenoid valve, that is, a single solenoid valve has one coil and a double solenoid valve has two coils. The pneumatic solenoid valve is used to control the flow of compressed air. In fact, the two kind of pneumatic solenoid valves have similar working principles.
We will now introduce you to single and double solenoid valves. They are internally pilot operated and can be powered by 12V DC, 24V DC, 110V AC or 220V AC. Pneumatic solenoid valve can be opened and closed quickly and safely, with high reliability and low price. The following table lists the specifications of 5/2 way pneumatic solenoid valves with single and double coils for your reference.
Overall dimension of 4V320-08 G1/4'' AirTAC Type 5/2 Way Pneumatic Solenoid Valve:
Spare part details of 4V320-08 5/2 Way Pneumatic Solenoid Valve:
Specifications of 4V300 Series AirTAC Type Solenoid Air Valves:
Model
4V310-08
4V320-08
4V330C-08
4V330E-08
4V330P-08
4V310-10
4V320-10
4V330C-10
4V330E-10
4V330P-10
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/4''
In=Out=3/8'' Exhaust=1/4''
Orifice Size
25.00 mm2 (Cv=1.40)
18.00 mm2 (Cv=1.00)
30.00 mm2 (Cv=1.68)
18.00 mm2 (Cv=1.00)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.5MPa(215psi)
Working Temperature
5~50℃
Material of Body
Aluminum alloy
Max. frequency
4 cycle/sec
4 cycle/sec
4 cycle/sec
4 cycle/sec
Factory production video of 4V Series AirTAC Type 5/2 Way Pneumatic Solenoid Valve:
Application Field & Working Principle of 4V series 5/2 Way Pneumatic Solenoid Valve:
5/2 or 5/3 way AirTAC type pneumatic solenoid valves are used to control the flow of the compressed air with 12V DC, 24V DC, 110V AC and 220V AC, and widely applied in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.
The pilot-operated two-position four-way or five-way (4/2-way or 5/2-way) solenoid valve pushes the valve stem in the valve by the intake pressure from the pilot hole to realize the gas (liquid) reversing function. Pilot-operated 4/2-way or 5/2-way solenoid valves are general purpose for both air and liquid due to different structure and sealing form.
