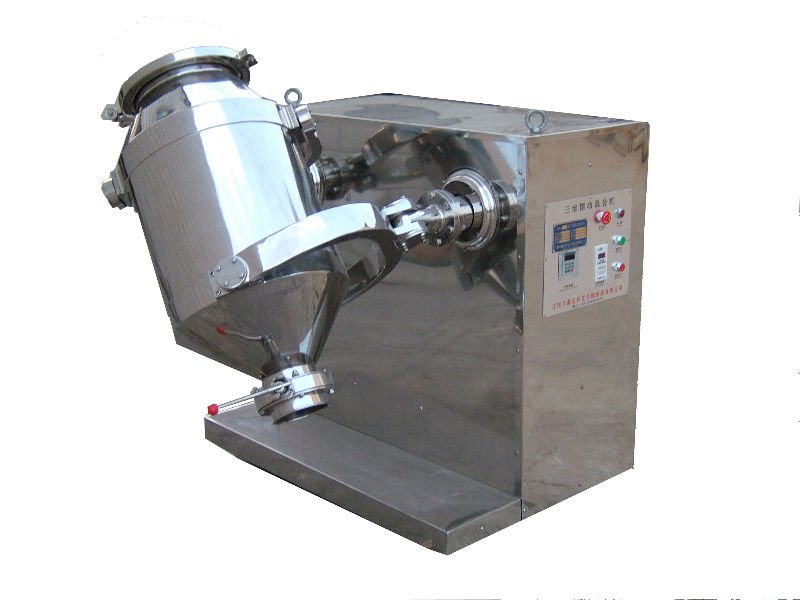

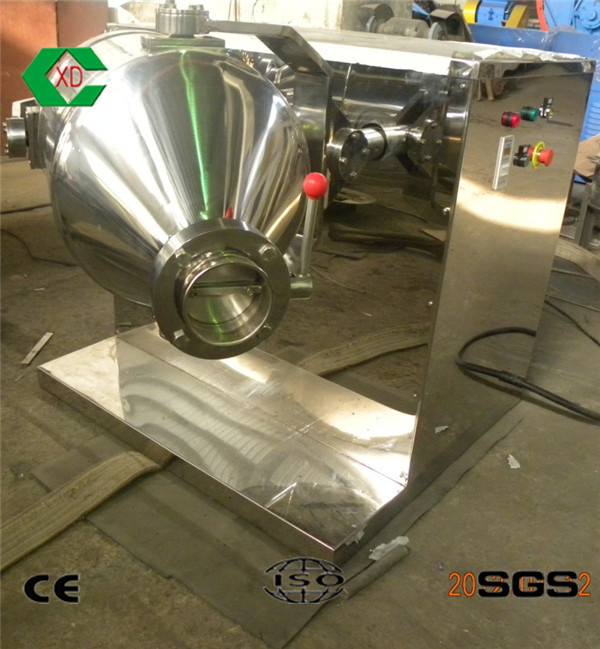

Three Dimensional Planetary Mixer With its unique three-dimensional swing, parallel moving and rolling methods, this mixing machine can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circly, radical and axially, achieving uniform mixing of different varieties of material.
Technical Data
|
MODEL |
MODEL 10 |
MODEL 50 |
MODEL 100 |
MODEL 200 |
MODEL 300 |
MODEL 400 |
MODEL 500 |
MODEL 600 |
MODEL 800 |
MODEL 1000 |
MODEL 1200 |
MODEL 1500 |
|
Mixing Barrel volume L |
10 |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
1200 |
1500 |
|
Max loading volumeL |
8 |
40 |
80 |
160 |
240 |
320 |
400 |
480 |
640 |
800 |
950 |
1200 |
|
Max kg |
5 |
25 |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
500 |
600 |
750 |
|
Principal axis speedr/min |
0-15 |
|||||||||||
|
Motor powerkw |
0.55 |
1.1 |
1.5 |
2.2 |
4 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
Overall size(L×W×H)mm |
800×1200×1000 |
1000×1400×1200 |
1200×1700×1500 |
1400×1800×1600 |
1800×1950×1800 |
1800×2100×1950 |
1900×2000×2100 |
1900×2100×2250 |
2200×2400×2300 |
2250×2600×2600 |
2400×2800×2800 |
2500×2950×3000 |
|
weight kg |
200 |
300 |
500 |
800 |
1000 |
1200 |
1380 |
1500 |
2000 |
2500 |
2800 |
3000 |
