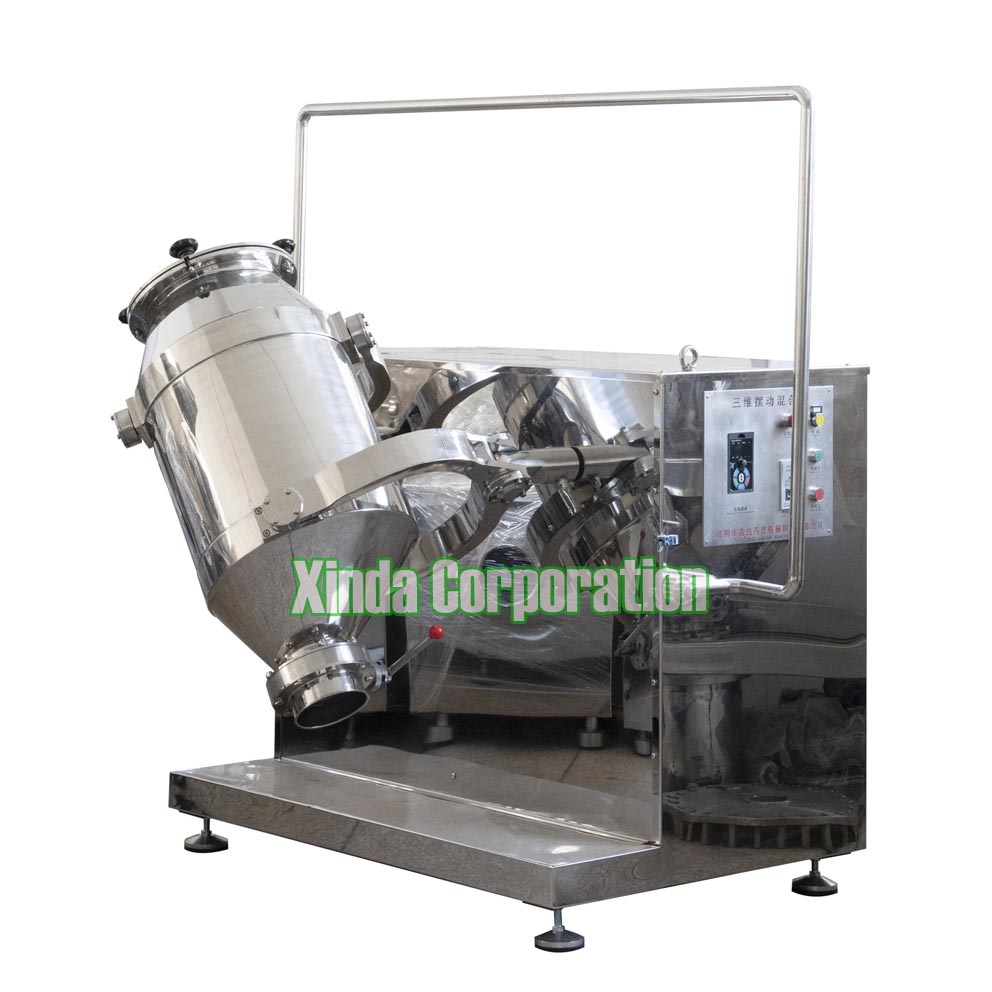

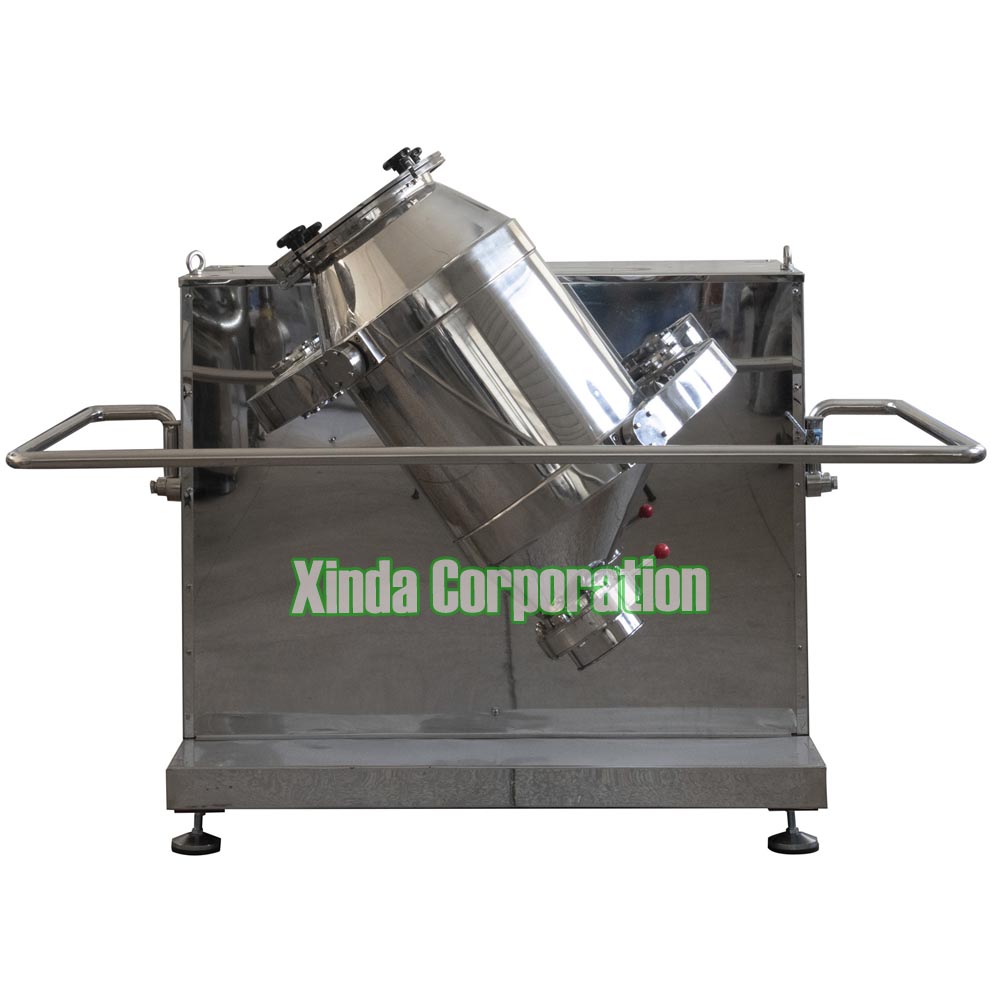

Industry Stainless Steel Planetary Medicine Powder Mixing Machine is an unique high efficiency 3 dimensional swing mixer. it is widely used for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity.
Characteristics
With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circly, radical and axially, achieving uniform mixing of different varieties of material.
Technical Data
MODEL |
SBH-10 |
SBH-50 |
SBH-100 |
SBH-200 |
SBH-300 |
SBH-400 |
SBH-500 |
SBH-600 |
SBH-800 |
SBH-1500 |
Mixing barrel volume (L) |
10 |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1500 |
Max loading volume(L) |
8 |
40 |
80 |
160 |
240 |
320 |
400 |
480 |
640 |
1200 |
Max loading weight(kg) |
5 |
25 |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
750 |
Principal axis speed(r/min) |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
Motor power(kw) |
0.55 |
1.1 |
1.5 |
2.2 |
4 |
4 |
5.5 |
5.5 |
7.5 |
15 |
weight(kg) |
200 |
300 |
500 |
650 |
1000 |
1200 |
1380 |
1500 |
2000 |
3000 |
Overall size (L×W×H)(mm) |
1100x800x1000 |
1400x1100x1200 |
1700x1300x1400 |
1800x1600x1500 |
2150x1900x1600 |
2250x2000x1700 |
2500x2000x1800 |
2700x2100x2000 |
2800x2200x2200 |
3400x2800x2800 |
Note: Vacuum-feeding device should be equipped in addition.
