Product details

-Product Description and Introduction:

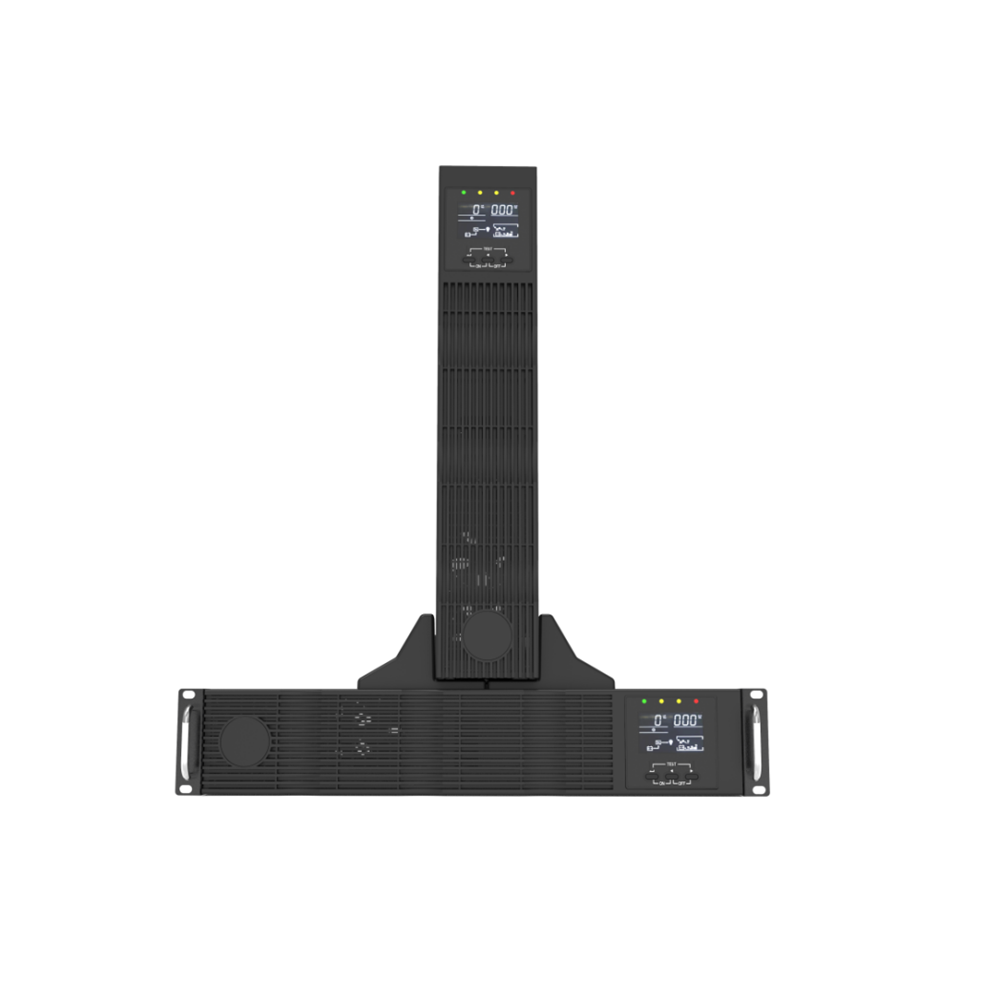

This type of Line Interactive UPS from UnitronicPower is a range of power protection solutions designed for various applications requiring reliable and efficient power backup. With capacities ranging from 1000VA to 3000VA, these UPS systems are engineered to provide advanced voltage stabilization and protection against power fluctuations, ensuring the continuity and safety of critical operations.

Features and Advantages:

1. Advanced AVR for Voltage Stabilization: The UPS systems are equipped with advanced Automatic Voltage Regulation (AVR) technology, which ensures a stable output voltage even during fluctuations in the input voltage.

2. Double CPU Control: A dual-processor control system enhances the UPS's performance and reliability, providing more efficient management of power delivery and system monitoring.

3. Rack-Mounted Design: The compact and space-saving design allows for easy integration into server racks, making it ideal for data centers and other space-constrained environments.

4. Auto Restart When AC Recovers: The UPS automatically restarts connected equipment when the AC power returns, ensuring minimal downtime.

5. Pure Sine Wave Output: The UPS delivers clean, pure sine wave output, which is essential for sensitive electronic equipment that requires high-quality power.

6. Cold Start Function: The UPS can start up and provide power even when the input voltage is zero, ensuring power availability in critical situations.

7. Intelligent Battery Management: The system includes intelligent battery management that optimizes battery life and performance.

8. Automatic Charging (Offline Charging): The UPS can charge batteries automatically, ensuring they are ready for use during power outages.

9. Battery Low Voltage Protection: This feature protects the battery from deep discharge, which can significantly reduce its lifespan.

10. Overload & Short Circuit Protection: The UPS is equipped with protection mechanisms that prevent damage from overloads and short circuits.

11. Wide Input Voltage Range: The UPS can operate within a wide range of input voltages, making it suitable for areas with unstable power grids.

12. Over Temperature Alarm and Protection: The system monitors temperature and provides alarms and protection against overheating.

13. LCD Panel: An LCD panel provides clear and easy-to-read information about the UPS's status and performance.

14. Optional USB/RS232 Communication Port: These communication ports allow for remote monitoring and management of the UPS.

Technical Specifications:

- Models: ULR1000S, ULR1500S, ULR2000S, ULR3000S, ULR1000L, ULR1500L, ULR2000L, ULR3000L

- Capacity: 1000VA/900W to 5000VA/4500W

- AC Mode: Input Voltage 85-145Vac, L+N+PE; Input Frequency 45-65Hz; Output Voltage 100-127Vac

- Inverter Mode: Output Voltage 120V±5%, L+N+PE; Output Frequency 50±0.5Hz; Output Waveform Pure Sine Wave

- Transfer Time: Typical 2-6ms, 10ms max.

- Battery: Sealed maintenance-free lead-acid batteries with adjustable charging current and period, depending on the model.

- Environment: Operation Temperature 0-40℃; Humidity 20-90% (Non-condensing); Noise Level ≤40dB(1m away); Altitude up to 1000m without derating.

- Physical: Dimensions and weight vary by model, from 440*445*86(W*D*H)mm and 13.5kg to 440*550*86(W*D*H)mm and 28.5kg.

These UPS systems are designed to provide reliable power protection for a wide range of applications, from small offices to large data centers, ensuring that critical equipment remains operational during power disturbances.
