Product description

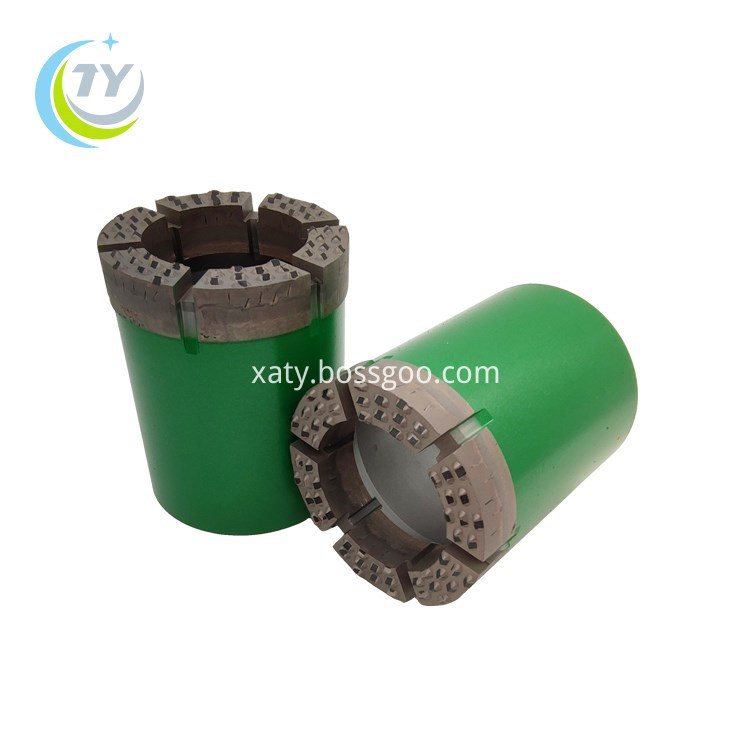

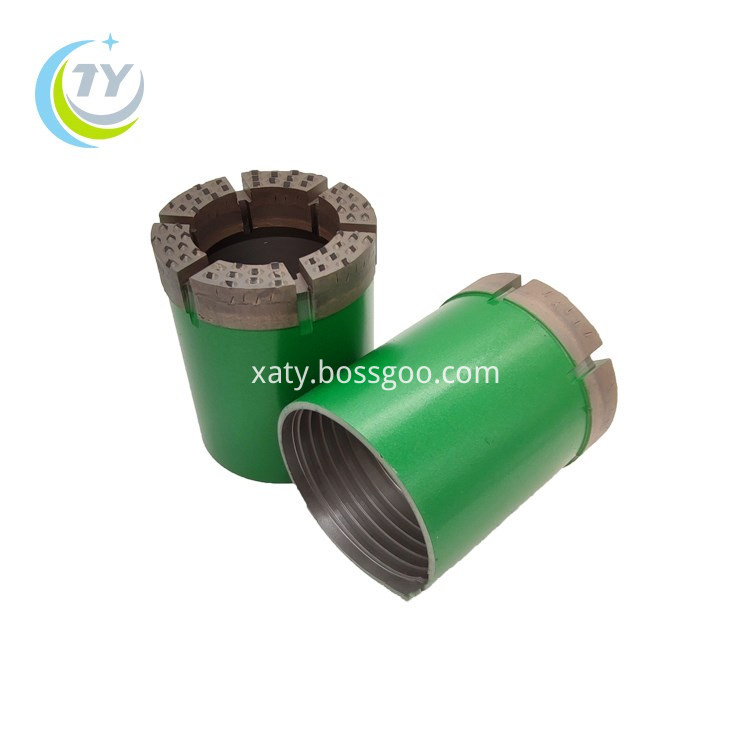

TSP（TSD） core bit is short of thermally stabled diamond bit, TSP core bit is used for fast penetration in soft/medium rock formations. TSP’s are a cost effective alternative for large stone surface set and PCD bits, except for HMLC size, we also supply size for AQ, BQ, NQ, NQ3, NMLC, HQ, HQ3, PQ, PQ3 etc. They are widely used in mining, water well drilling and geological drilling.
Parameters reference for tsp core bit
Bit size
Core bit
Reaming shell
Bit size
Outside diameter
Insider diameter
Outside diameter
AQ
47.75
27.1
48
ATW
47.75
30.22
AGM
47.75
30.43
BQ
59.69
36.52
59.9
BQ3
59.69
33.65
NQ
75.44
47.75
75.7
NQ2
75.44
50.8
NQ3
75.44
45.21
NMLC
75.44
52.12
HQ
95.76
63.63
99.24
HQ3
95.76
61.24
HMLC
98.98
63.63
PQ
122.3
85.09
121.61
PQ3
122.3
82.93
TT46
46.18
35.4
46.3
T2-46
46.18
31.82
T2-56
56.13
41.83
56.3
TT56
56.13
45.41
T2-66
66.12
51.81
66.3
T2-76
76.12
61.82
76.4
T2-86
86.13
71.83
86.4
T2-101
101.12
83.82
101.4
Packaging and shipping
Packaging for the HQ tsp core bit for well drilling is in the carton box;
Samples will be send by express, batch products will be sent by air or by sea, it is up to the order quantity and client's requirement;
Company information
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the tsp core bits manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010, except for impregnated core bit, we also supply PDC bit, tricone bit, cutting tools, rock drilling tools and other drilling accessories. Welcome to contact us if you have any requirement of our product.
