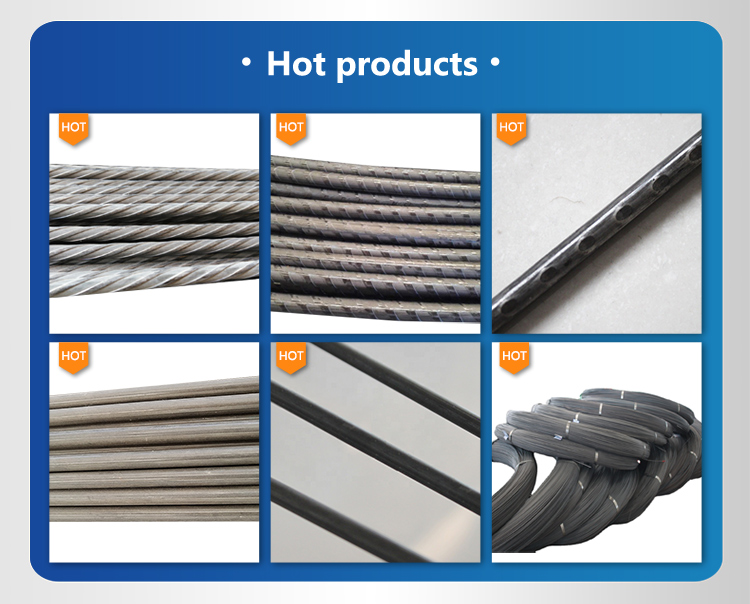

Non-Alloy Spiral Ribbed PC Wire 4.8mm 5.0mm 6.0mm 7.0mm 9.0mm export to Vietnam, Bangladesh, and Pakistan. Standard is according to ASTM A421, GB/T5223-2014, BS5896, EN10138-2 ect. Tendon Wire is composed of Plain PC wire, Helical/Spiral Ribbed PC wire and Indented PC wire. And the subject PC wire products are mainly used in pre-tensioning and post-tensioning project.
Shandong Xindadi Holding Group Co, Ltd. is specialized in manufacturing of prestressed concrete wire with various types. Our main products are spiral rib prestressed concrete wire, plain surface prestressed concrete wire, indented prestressed concrete wire, common steel wire and cold rolled ribbed steel bar and PC Stand. Our product is widely used for high-speed rail, railway sleeper, track plate, concrete poles, PCCP Pipe, bridge, Communication poles, buildings, large plant (warehouse), infrastructure construction.
Why choose us, our advantages:
Quality Assurance : Every single piece of wire has been strictly stabilized treatment, to meet the high standard construction requirement. Good surface without rusty, defects, and oil.
Technical Support: We have 9 senior engineers and intermediate technical title personnel 56 people. Relying on the excellent technical team, we have built a quality control system.

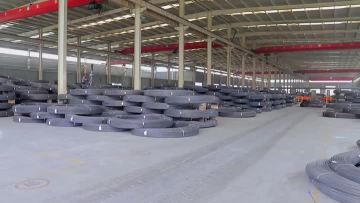

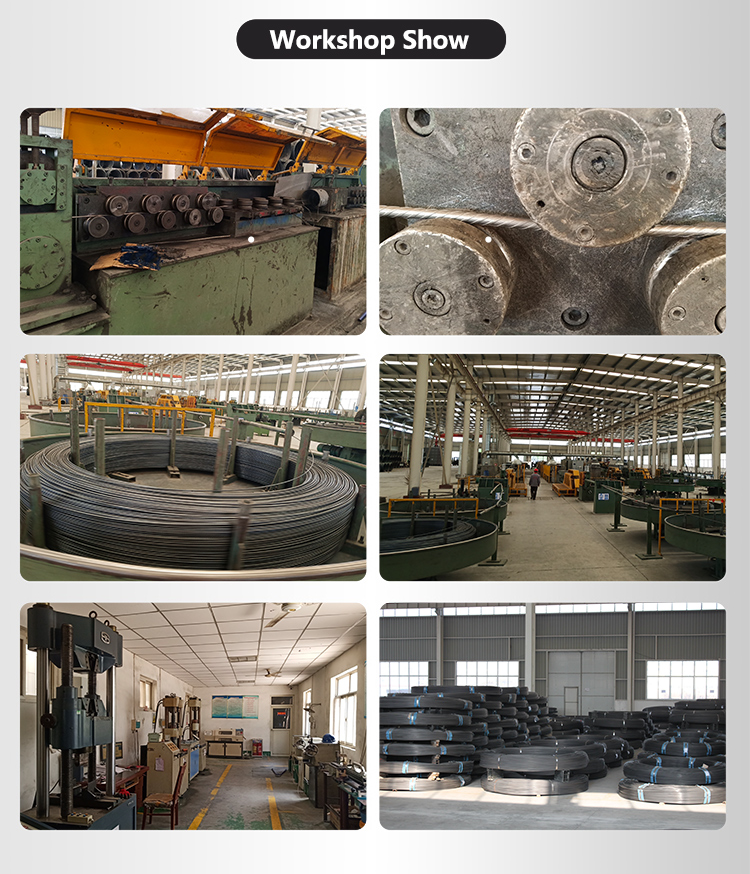

Prompt Delivery: we have 14 production lines and dozens of advanced equipment, the annul production capacity of 150,000 metric tons. Large ready goods for all kind of prestressed concrete wire in stock to make sure deliver the good in time.
Sales Service: We have more experience in export business. 24 hours non-stop service to ensure the timely feedback. As long as you need our help, we are always here.
| Product Name | High Carbon Steel HTS Wire for Pre-tensioning Precast Prestressed Concrete |
| Diameter | 4mm, 4.8mm, 5mm, 6mm, 7mm, 7.5mm, 8mm, 11mm, 11.5mm, 10mm,11mm |
| Raw Material | high carbon steel wire rod SWRH77B, SWRH82B and other grade. |
| Standard |
ASTMA421, AS/NZS4672, ABNT NBR7482, BS58116-11180, EN10138-2, GB/T5223, JIS G3536, KSD 7002 |
| Surface | plain/smooth, spiral/helical ribs, indent |
| Tensile Strength | 1470Mpa,1570Mpa, 1670Mpa, 1770Mpa, 1860Mpa. |
| Relaxation on 1000 hours | 2.0% max; Elongation at breakage: 4.0% min |
| Export Packing | baling strip, inside plastic cover, outside PP packing cloth; |
| Package Weight | 800kg-1600kg |
| Application |
cement electricity poles, railway sleeper, subway track board, concrete piles, beams, girders, slabs, hollow floor board, double-T board, PHC |

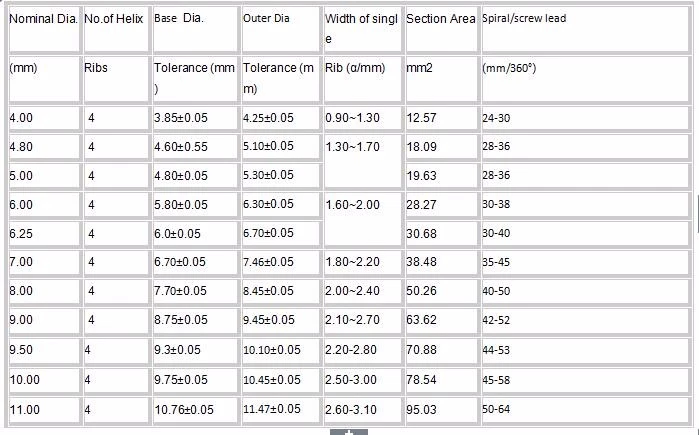

Specification:
