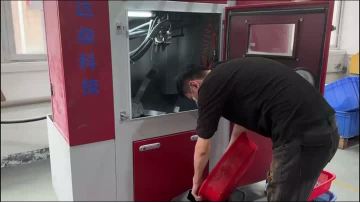

Conveying split sandblasting machine LH-PSJ-05
|
Machine size ： |
spray room 1650Lx1200Wx2550H, recycling box 1200LX1200W2550H |
|
Pad size: |
30mm x 280mm Max. |
|
Production capacity: |
2000 pcs/ h |
|
Gun material: |
aluminum alloy shell, ceramic nozzle. |
|
Guns: |
(according to different requirements can be opened to 1-6) |
|
Sandblasting material: |
silica sand or emery, particle size 2-3 |
|
Swing angle, intensity: |
less than 30 degrees, according to the pressure |
|
Swing motor: |
turbine motor 400W 20: 1 |
|
Transmission speed: |
0 - 10 m / min. |
|
Drive control mode: |
continuous |
|
Drive motor: |
Turbine motor 60: 1,400 W |
|
Conveyor: |
belt, wide 200 |
|
Tensioning device: |
screw adjustment |
|
Feeding device: |
single continuous |
|
Motor: |
Turbine motor 400w, 20: 1 |
|
Transmission: |
positive and negative screw propulsion mechanism |
|
Wind motor: |
centrifugal fan, 4-72-3.6A, 1578-989Pa, speed 2900, wind speed 2600-5200,3KW |
|
Recycling method: |
wind centrifugal barrel |
|
Treatment: |
bag, 36 pcs |
|
Vibration mode: |
cylinder 2 pcs |
