Product details

Smart Film is a cost-effective alternative to Smart Glass.
Intelligent Glass offers the widest range of switchable smart Glass products on the market. We export to the world to meet the needs of hundreds of architects, interior designers, retailers, office decoration companies, glass processors, partition companies, etc. Our certified installers will present samples, take accurate measurements, plan wiring connections and advise on the best solutions

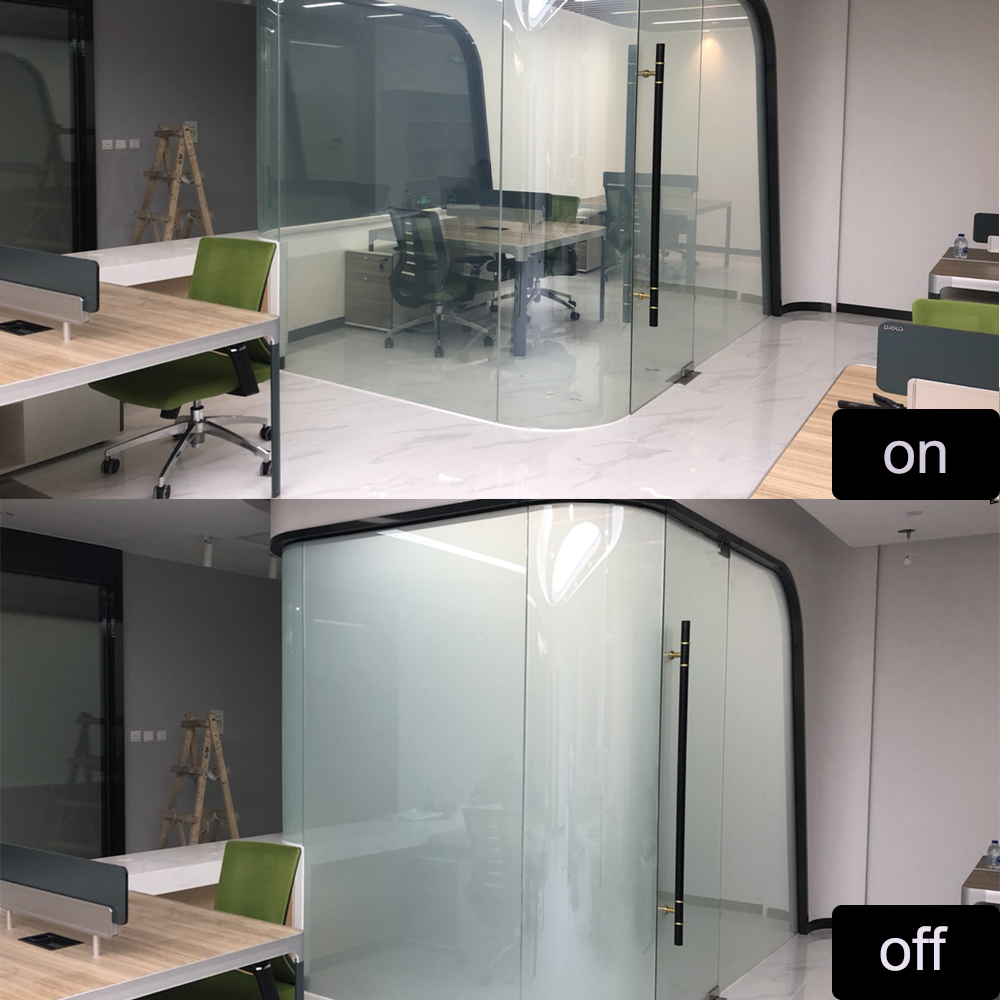

Smart glass is as easy to install as ordinary laminated tempered glass. This coating process can be applied to a range of glass types and thicknesses. We can make a single glass tempered panel with a switchable layer on one side for a partition. We can laminate switchable layers between the two glass panels for wet areas. We can build double or triple glazing units to your exact specifications. We can handle specialty glass, including low iron or lead glass, used in demanding commercial, domestic, high flow and medical environments.Swappable glass also provides insulation, solar and sound insulation that helps keep the room cool, comfortable and quiet. Not only does it eliminate the need for fussy, awkward privacy blinds or curtains, choosing our privacy dimming glass can still allow natural light to flow into your space while maintaining the confidentiality of the environment.

Office Decoration Band Store Window

P D L C F I L M
Test Items	High temperature experiment 70 °C, 240 h; Low temperature experiment -20 °C, 240 h; High temperature and high humidity experiment 60°C, 95% RH, 240 h; High and low temperature shock test -20 °C, 30 min, 70 °C, 30 min (cycle 50 times).
Atomization Rate	Transparency is 96% when the smart film roll powered on; Transparency is less than 4% when the film powered off.
180° Visible Light Transmittance	Transparency is 83% when the pdlc film powered on; Transparency is more than 60% when the pdlc film roll powered off.
Application	Privacy Room,Projection,Silent Room,Fire Room,Window Advertising,Special Perspective Lift,Bank,Showcase,Bathroom,Vehicle Application,Hospital,Brand Store,Restaurant,Factory Floor,Dynamic Window Display,Control Room,......
Response Time (OFF-ON)	< 10ms
Power Consumption	5W/㎡
Operating Voltage (ON)	AC48V ~ 65V/50Hz
Energy Saving	Block more than 99% of the uv and more than 98% of the infrared, insulation performance reaches level 2 or above.
Safety	It has the advantages of safety glass, good impact resistance,eva film and laminated glass smart film firmly adheres the glass, so that the smart glass can prevent debris from hurting people after being broken by impact.
Control Methods	Manual switch, remote control, trigger control, voice control, APP control, timing control, remote network control, etc, can be customized according to customer needs.

When the bank counter to accept external business, the glass will be transparent, clearly visible inside and outside, does not affect the business; When the counter does not accept business, the glass is adjusted to atomization, so that the inside and outside can not be seen, so that the bank staff can avoid being disturbed by the outside world, and the projector can also be used to project images (as shown below). Even in the event of some dangerous situations that are very adverse to the bank, it can instantly block the connection between the inside and outside space and reduce the loss of personnel and property.

FAQ

Q1. What is the lead time?
A: Sample is 1-3 working days, mass production time is 3-5 working days for
Order less than 5000 PCS.
Q2. Do you have any MOQ limit?
A: Screen Protector MOQ is 500 pcs with yourself logo.
Screen Protector MOQ is 3000 pcs with Custom Package.
Q3. How should we pay if we order from you?
A: Alibaba trade assurance: Samples and small order
T/T: Mass production
Q4: What is the packaging?
The Packaging Detail:
A: Factory Finished product packaging: retail package x1 TPU screen protector x1
hard scratch card x1 Toolkit x1 include dust removal stickers,Clean cloth,wet bags,
dust remover. 200 product in one carton the carton size is:42*36*32cm,
the carton weight is 18kg.
Q5. Can I have a sample even pre-production before I send you the order?
A: Yes, We can send you samples for your approval first.
Q6. Do you offer guarantee for the products?
A: Yes, we can offer one- year guarantee for the goods.
