Fully automatic hot stamping machine for bottle csp-side //Usage and characters

Samples

Most of the containers need to be closed with lids to achieve the purpose of long-term preservation of products. The hot stamping of lids is also a decoration issue that is generally concerned in the industry. The hot stamping of lids is divided into side stamping and top stamping. The structure of the machine is roughly the same, except that During the process, the hot stamping on the top of the bottle cap adopts flat stamping, and the ironing head only moves up and down, while the hot stamping on the side of the bottle cap requires the rotation of the fixture and the left and right movement of the ironing head.

Automatic bottle cap hot stamping usually consists of automatic crawler feeding system, prepress processing system, positioning system, workbench, hot stamping system, and automatic unloading system. Because bottles and bottle caps are widely used in all aspects of life and are used in large quantities, the speed requirements for automatic hot stamping machines are very high. It is widely used in plastic packaging, medicine, cosmetics, stationery, wine, washing supplies and

Full automatic hot stamping Machine for bottle cap-side //Parameter

Technical parameters
Total consume Wattage: 260W;
Stamping temperature Rnange:20∼300℃;
Compress air Pressure﹕5-8Bbar;
Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
Max stamping Speed:2000-3000pcs/h
Outer dimension: 2300×2160×1200mm;
Net weight(kg) : 420;
Motor wattage: 1500W;
Power supply: 220V;
Heater wattage: 800W IR.
Works supply: 110V-220V Power supply;5-7Bar Compress air;
Package size: 2770×1680×1790MM;
Gross weight: 745kg
CBM: 8.329
H.S.Code: 8443198000
Certificate: CE

Full automatic cap-side hot stamping machine //Advantage

Vertical cylinder pressure mechanism design, a strong pressure;
Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
Stamping pressure, temperature, time stamping adjustable;
Automatic foil feeding , Foil collection, and adjustment;
Lift stamping head height adjustable;
Bin storage, automatic Crawler installed for cap feeding;
Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
Automatic stamping process;
The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
With a square column design, the machine structure, solid and durable;
Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
IR heating, heating, high efficiency, stability and ensure stamping quality.
Rotary table design automatic inflatable device for stamping cap sideways

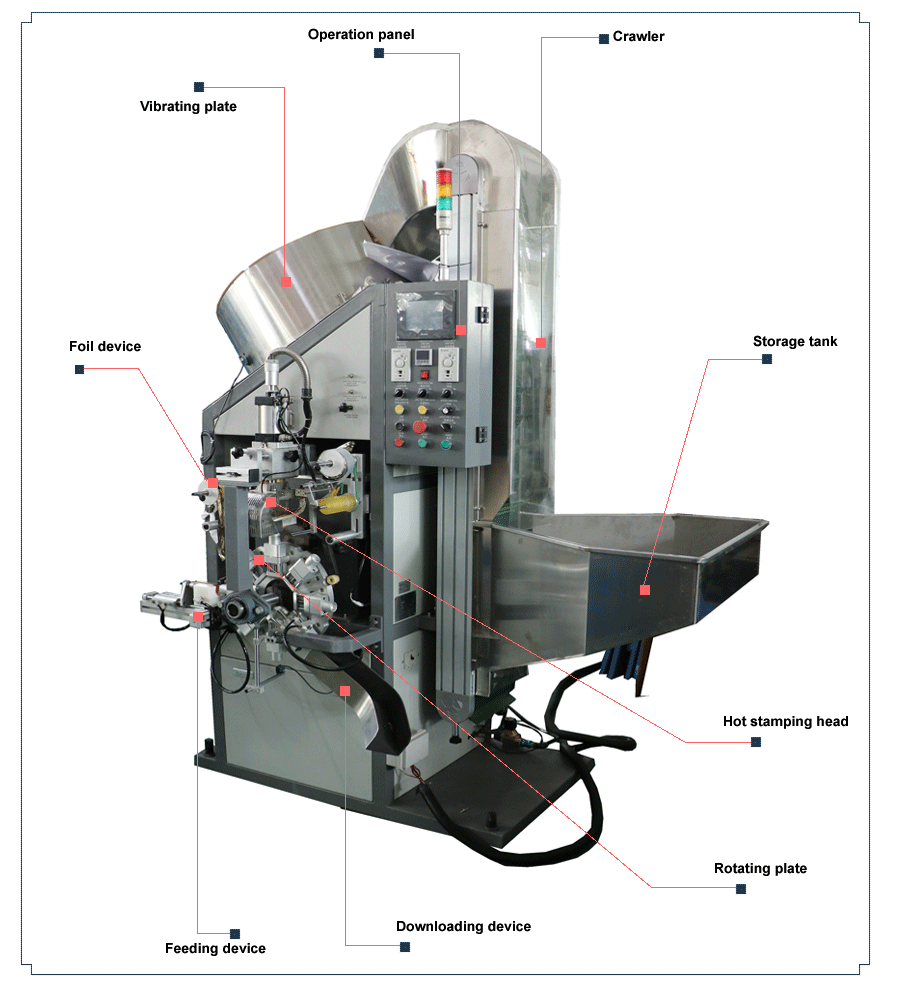

Machine structure of bottle cap side Automatic hot stamping machine

Feeding mechanism: It uses a vibrating plate or a material sorter, etc., which can automatically arrange the bottle caps in a certain order and convey them to the conveying mechanism. It is suitable for feeding bottle caps of single specifications or multiple specifications, and can adapt to bottle caps of different shapes and sizes by adjusting parameters.

Divider transmission: A cam divider is often used, which can convert continuous motion into intermittent indexing motion, so that the bottle cap can accurately stop and switch between each station.

Hot stamping device: Including hot stamping head, heating system, pressure regulating mechanism, hot stamping head is usually made of high temperature resistant materials such as steel plate and aluminum plate, and is equipped with heating elements inside. The heating element generally adopts electric heating, and the temperature is accurately detected and controlled by a temperature sensor.

Pressure regulating mechanism: used to adjust the pressure of the hot stamping head on the bottle cap.

Reeling mechanism

Including unwinding device and reeling device, used to prevent hot stamping foil, and can set the reeling length according to the size of the pattern.

Control system

With PLC control system and touch screen as the core, it is the center of the fully automatic bottle cap hot stamping machine, which can accurately control and coordinate the actions of each mechanism, and realize the automatic operation of the entire hot stamping process such as feeding, conveying, hot stamping, and winding.

Auxiliary mechanism

Dust removal device: It can remove dust and impurities on the surface of the bottle cap in advance.

Detection device: It can perform online detection of the hot stamping quality of the bottle cap, such as whether the hot stamping pattern is complete, whether the position is accurate, whether the color meets the requirements, etc., and timely remove or alarm if unqualified products are found.
